615kHz/1.25MHz Step-up PWM DC/DC Converter,EUP2624A Replace LM3224.
EUP2624A
EUP2624A.pdf
EUP2624A.pdfFEATURES
? 90% Efficiency
? 1.9A, 200m? Power MOSFET
? 2.5V to 5.5V Input Range
? Adjustable Output Voltage up to 12V
? 750kHz/1.2MHz Switching Frequency Selection
? Adjustable Soft-Start
? Internal Thermal Protection
? Small 8 Pin MSOP or TDFN 3mm×3mm Packages
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

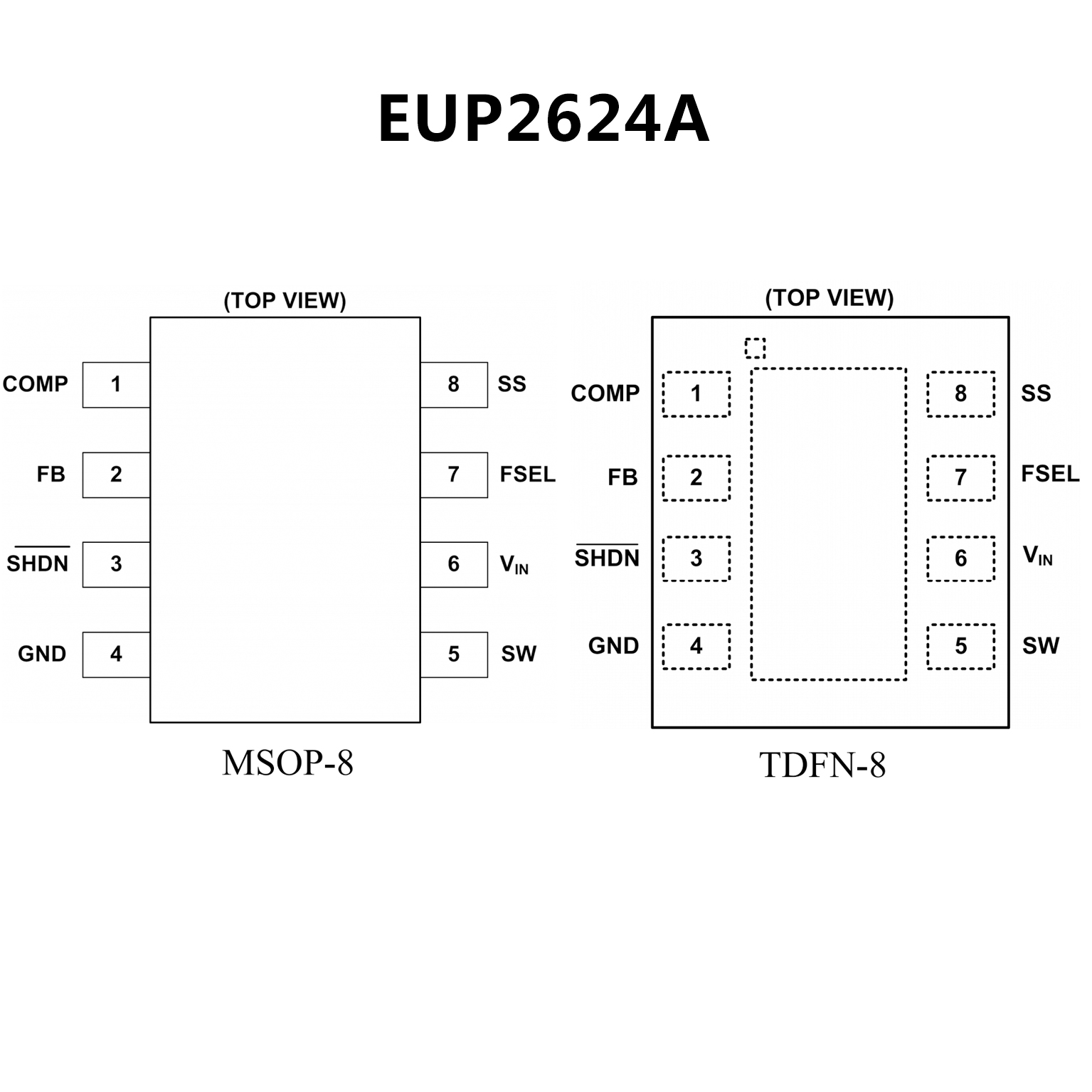

PIN CONFIGUTION
優勢替代
FEATURES
? Operating Voltage Range of 2.7V to 7V
? 615kHz/1.25MHz Pin Selectable Frequency
Operation
? Over Temperature Protection
? Optional Soft-Start Function
? 8-Lead VSSOP Package

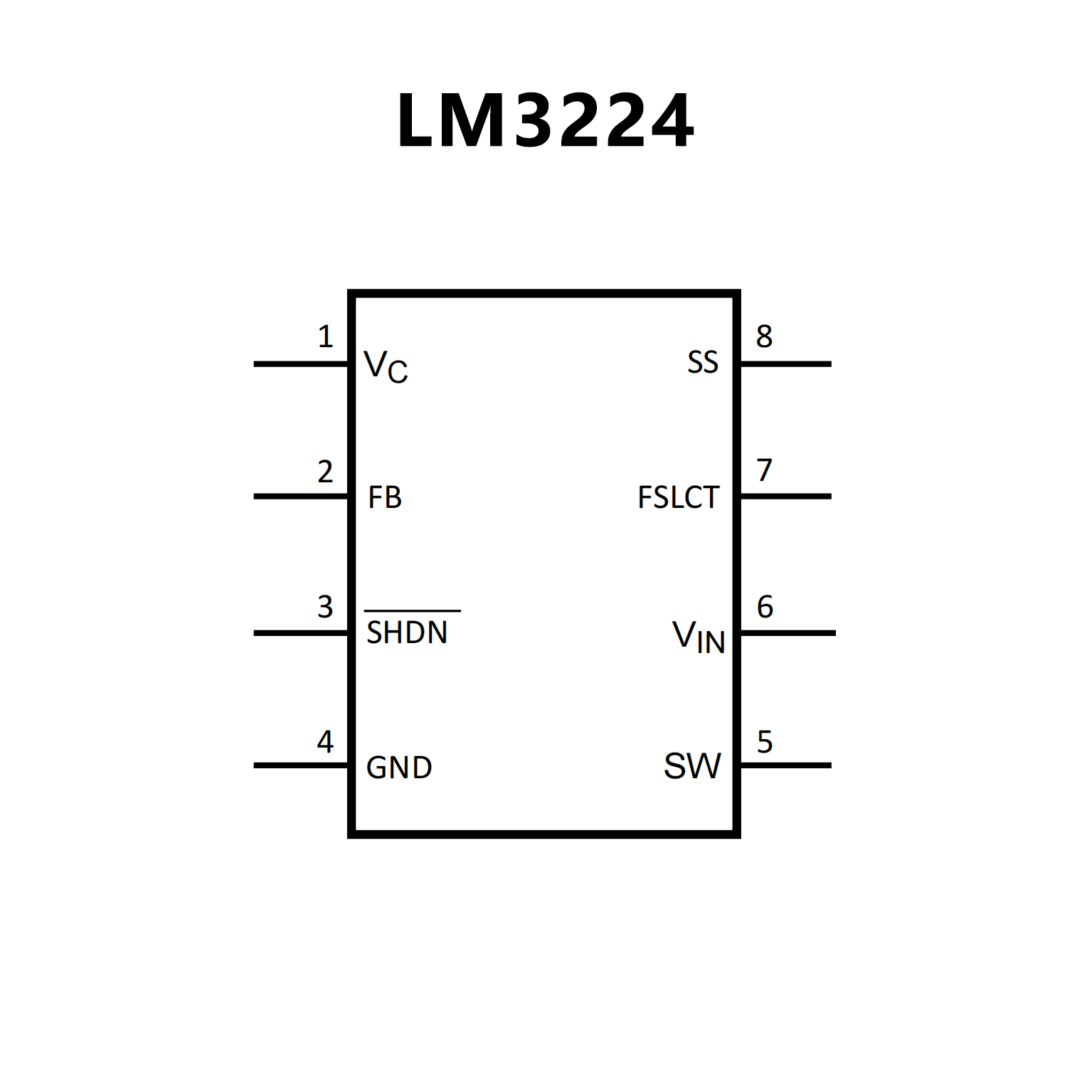

PIN CONFIGUTION
