9V to 30V Input LED Backlight Controller, EUP2950 Replace OB3350.
EUP2950
EUP2950.pdf
EUP2950.pdfFEATURES
? 9V to 30V Input Voltage Range
? Current Mode PWM controller with good dynamic
? Internal Soft-Start
? External PWM Dimming Control
? Over Voltage Protection
? Over Current Protection
? Under Voltage Lockout
? Thermal Shutdown Protection
? LED cathode short to GND Protection
? LED Open Protection
? SOP-8 Package
? RoHS Compliant and 100% Lead (Pb)-Free

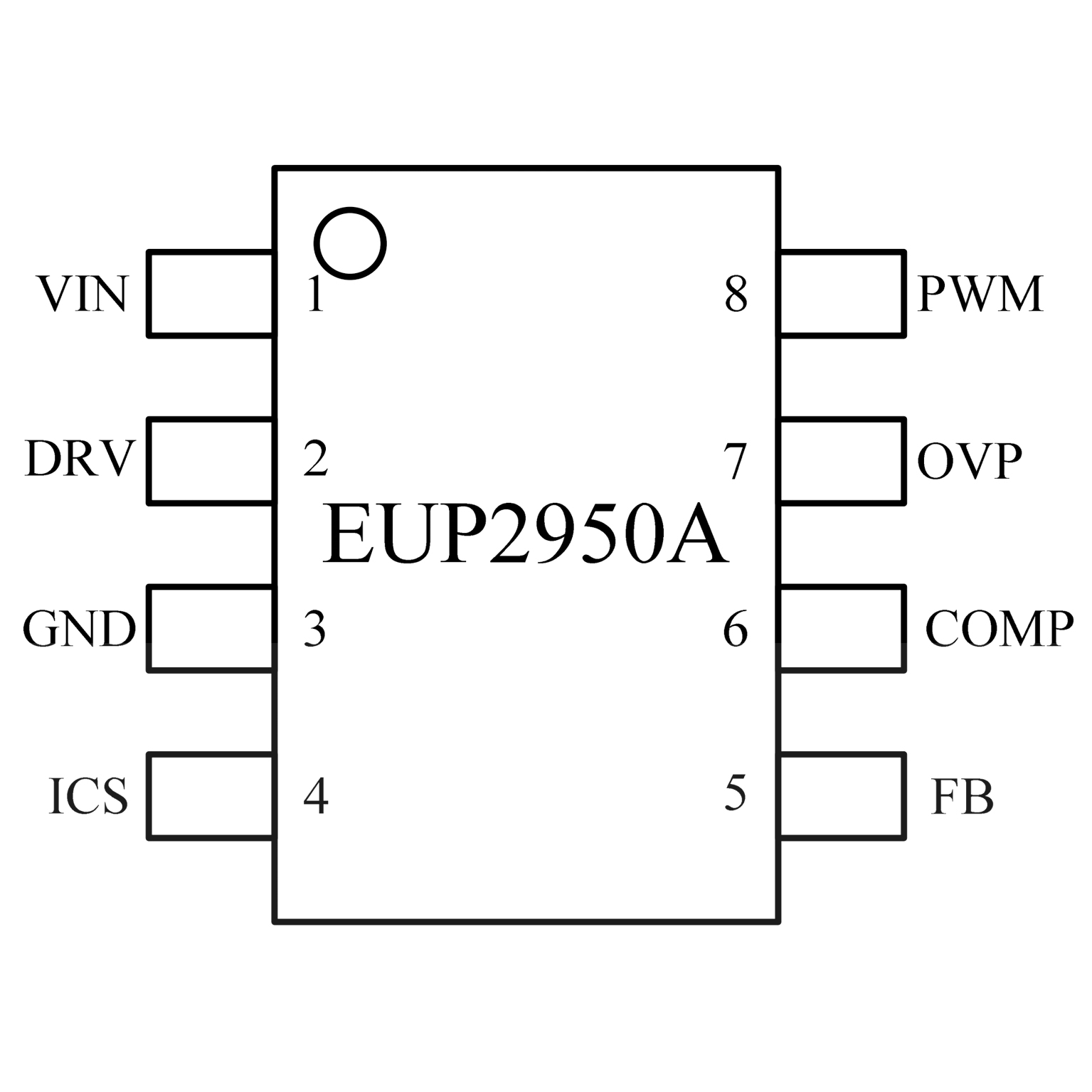

PIN CONFIGUTION
優勢替代
FEATURES
? Current Mode PWM Controller With Good
? Dynamic Response
? 8V to 35V Input Voltage Range
? External PWM Dimming Mode
? Over Voltage Protection
? Over Current Protection
? Under Voltage Lockout (UVLO)
? Thermal Shutdown

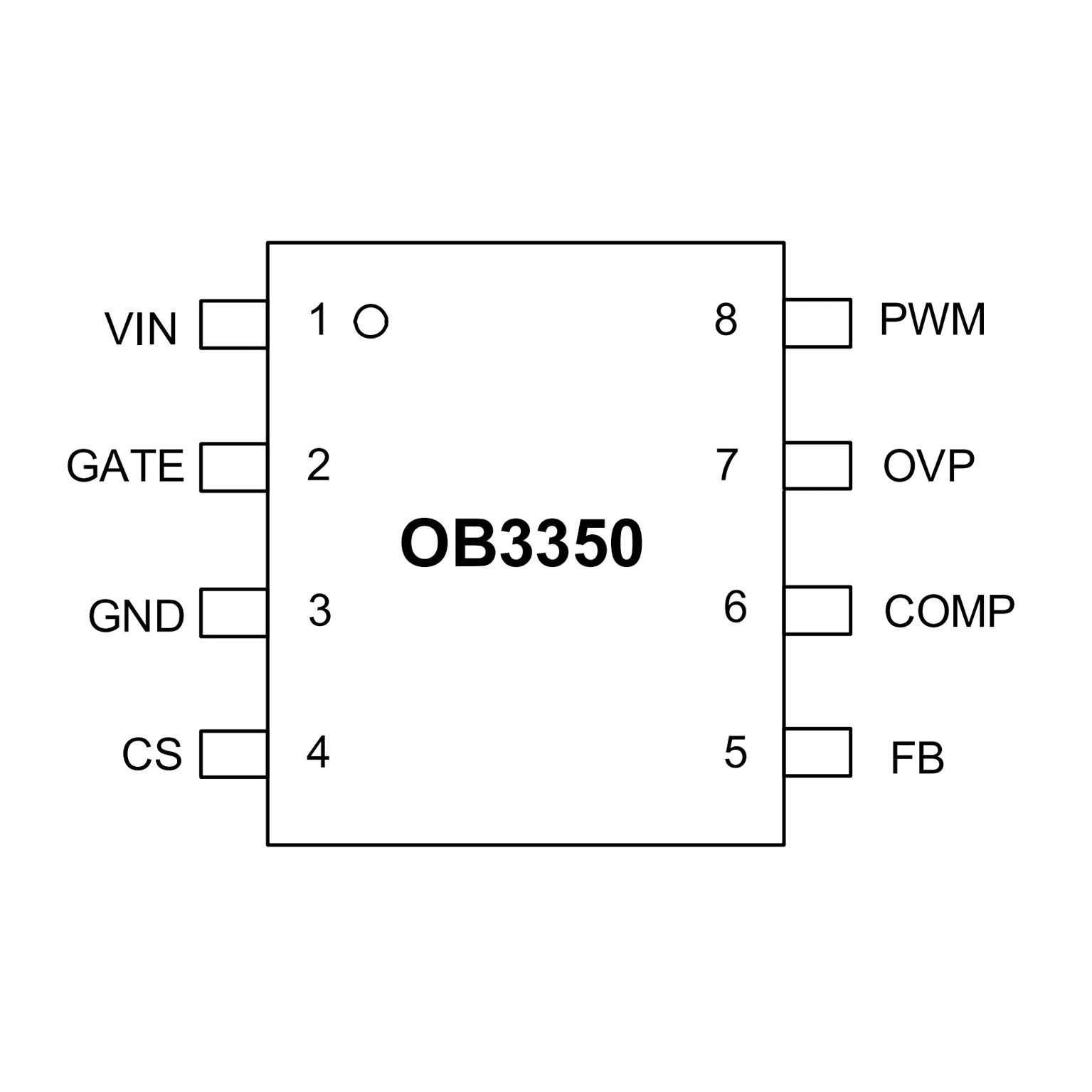

PIN CONFIGUTION
