LM2902.pdf? Wide Supply Ranges Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 860μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes Ground,
Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 20pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to Maximum- Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range

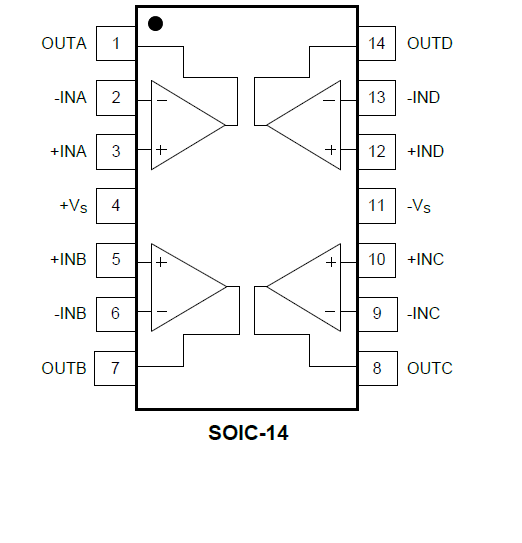

? Available in a Green SOIC-14 Package
? Wide Power Supply Voltage Range: Dual Supplies: ±1.5V to ±18V
? Very Low Supply Current Drain
? LM2902 700μA – Independent of Supply Voltage
? Low Input Bias Current: 20nA
? Low Input Offset Voltage:
A Version: 1mV Typ
Non-A Version: 2mV Typ
? Large DC Voltage Gain: 100dB
? Wide Bandwidth (Unity Gain): 700kHz
? Internally Compensated with Unity Gain
? Input Common-Mode Voltage Range Includes Ground
? Differential Input Voltage Range Equal to the Power Supply Voltage
? Large Output Voltage Swing: 0V to VCC -1.5V
