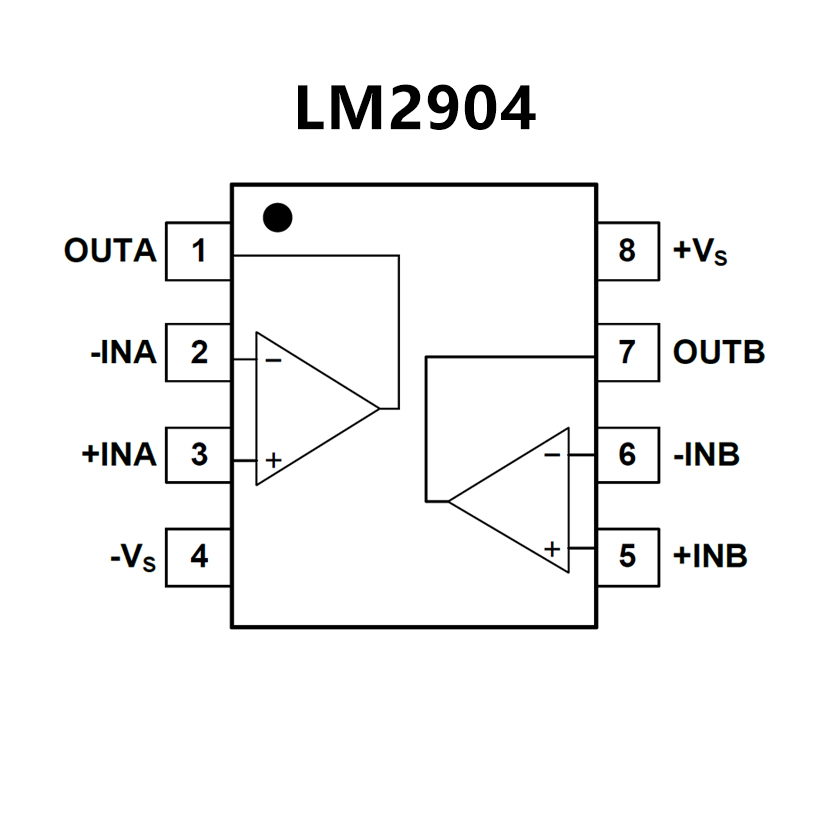

LM2904XS8G.pdf? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range
IncludesGround, Allowing Direct
Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8
and TSSOP-8Packages
? Output Swing Includes Both Supply Rails

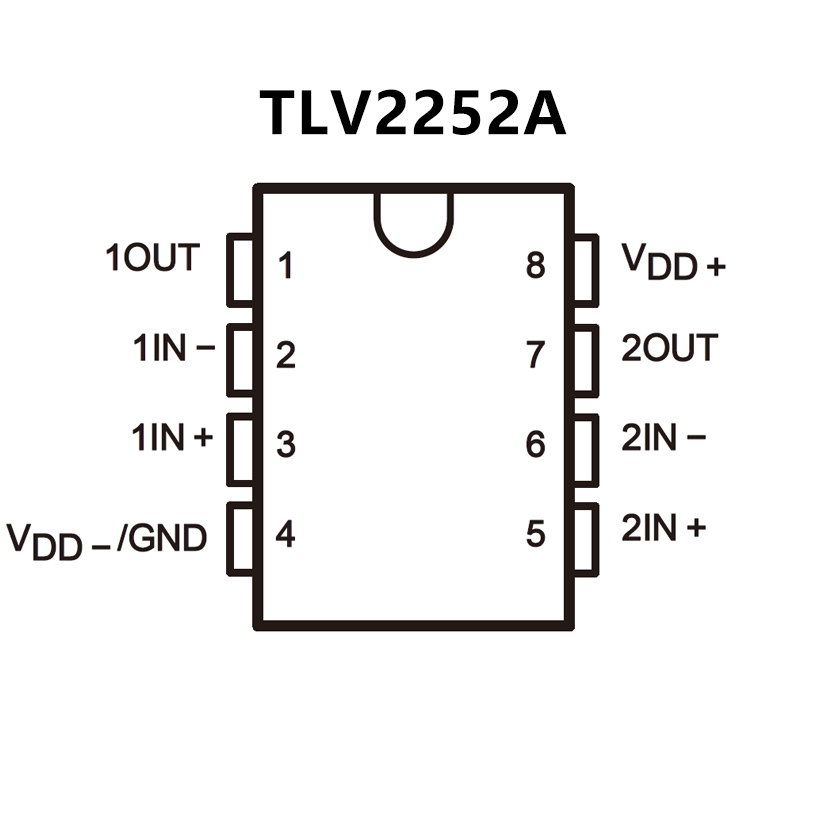

? Low Noise . . . 19 nV/√Hz Typ at f = 1 kHz
? Low Input Bias Current . . . 1 pA Typ
? Fully Specified for Both Single-Supply and
Split-Supply Operation
? Very Low Power . . . 34 μA Per Channel Typ
? Common-Mode Input Voltage Range
Includes Negative Rail
? Low Input Offset Voltage
850 μV Max at TA = 25°C
? Wide Supply Voltage Range
2.7 V to 8 V
? Macromodel Included
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
