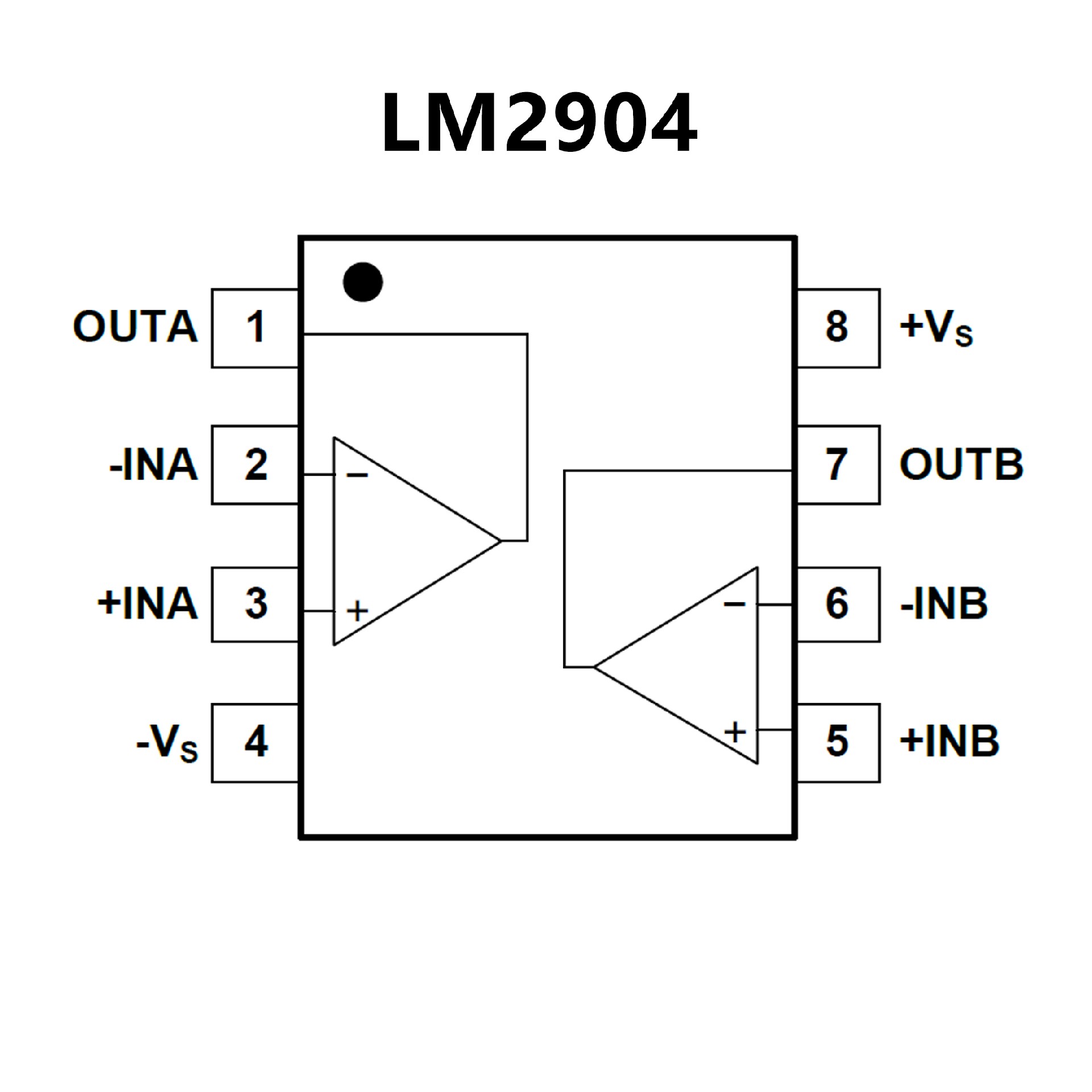

LM2904XTS8G.pdf? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to
Maximum- Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 and TSSOP-8
Packages

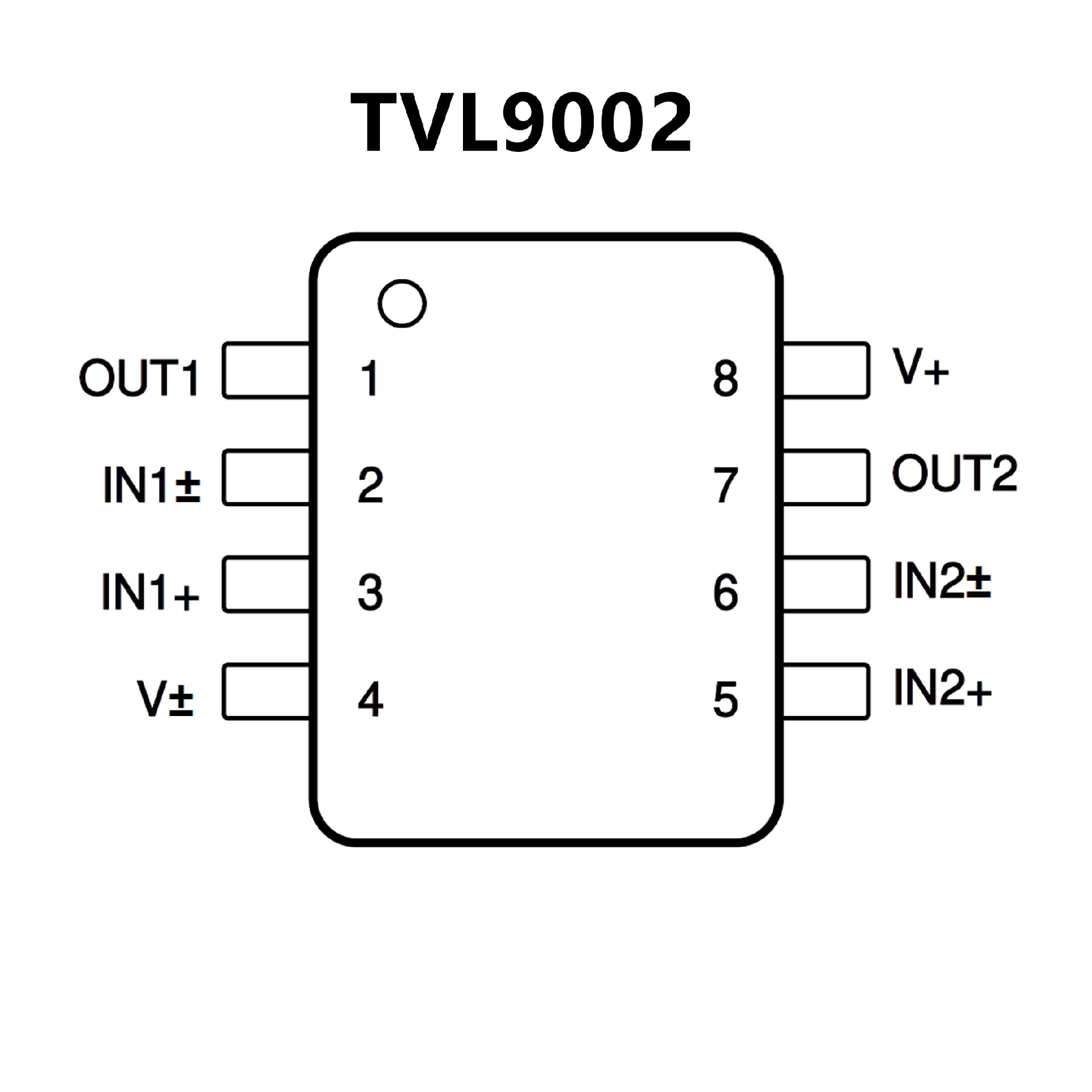

? 可擴展CMOS 放大器，適用于低成本應用
? 軌至軌輸入和輸出
? 低輸入失調電壓：±0.4mV
? 單位增益帶寬：1MHz
? 低寬帶噪聲：27nV/√Hz
? 低輸入偏置電流：5pA
? 低靜態電流：60μA/通道
? 單位增益穩定
? 內置RFI 和EMI 濾波器
? 可在電源電壓低至1.8V 的情況下運行
? 由于具有電阻式開環輸出阻抗，因此可在更高的容
性負載下更輕松地實現穩定
? 工作溫度范圍：–40°C 至125°C
