Precision Micropower Shunt Voltage Reference,DIODES LM4040 Replace ADI LM4040.
LM4040
LM4040.pdf
LM4040.pdfFEATURES
? Small Package: SOT23
SC70-5 Variants Are End of Life (EOL)
? No Output Capacitor Required
? Output Voltage Tolerance
LM4040B: ±0.2% at +25°C
LM4040C : ±0.5% at +25°C
LM4040D: ±1% at +25°C
? Low Output Noise
? (10Hz to 10kHz) 45μVRMS
? Wide Operating Current Range 60μA to 15mA
? Extended Temperature Range -40°C to +125°C
? Low Temperature Coefficient 100 ppm/°C (max)
? Green Molding in Small Package SOT23

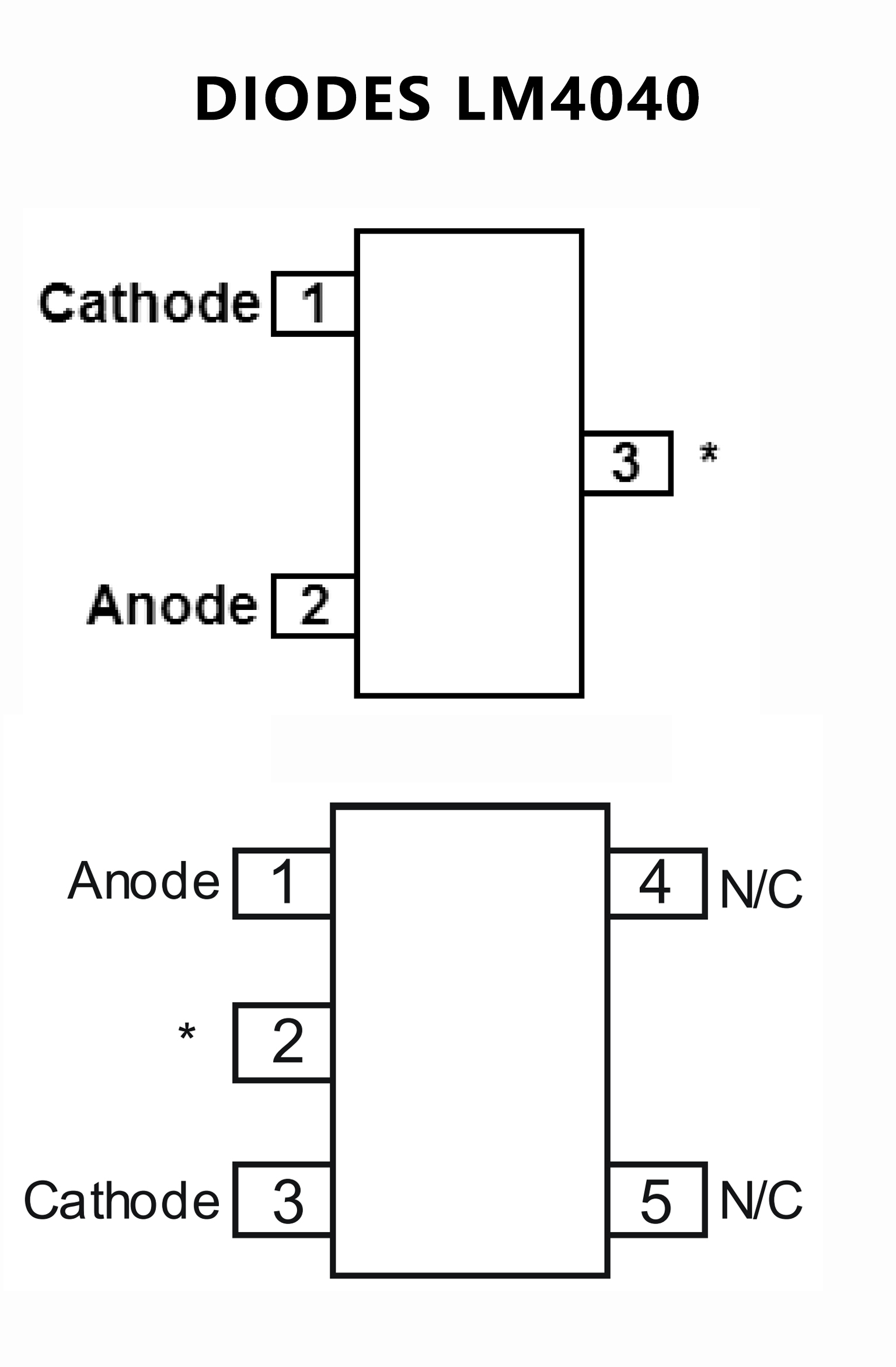

PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Small 3-Pin SC70 Package
? 0.1% (max) Initial Accuracy
? 100ppm/°C (max) Temperature Coefficient
Guaranteed Over -40°C to +125°C Temperature
Range
? Wide Operating Current Range: 60μA to 15mA
? Low 28μVRMS Output Noise (10Hz to 10kHz)
? 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V
Fixed Reverse-Breakdown Voltages
? No Output Capacitors Required
? Tolerates Capacitive Loads
? AEC-Q100 Qualified - Refer to Ordering Information
table for /V parts

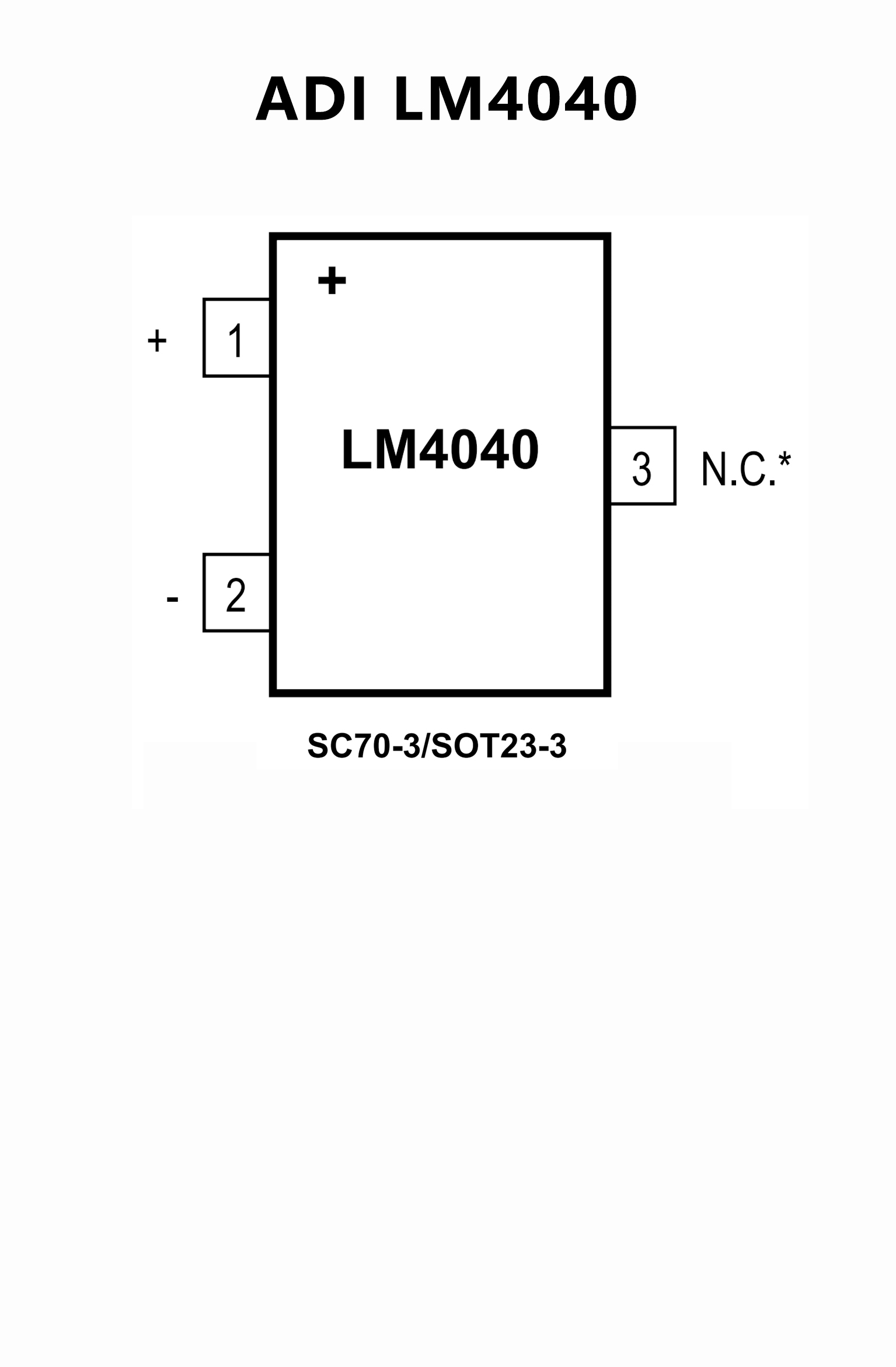

PIN CONFIGUTION
