Precision Micropower Shunt Voltage Reference, DIODESLM4041 Replace ADI LM4041.
LM4041
LM4041.pdf
LM4041.pdfFEATURES
? Small packages: SOT23, SC70-5
? No output capacitor required
? Output voltage tolerance
? LM4041C: ±0.5% at 25°C
? LM4041D: ±1% at 25°C
? Low output noise: 20μVrms (10Hz to 10kHz)
? Wide operating current range: 60μA to 12mA
? Extended temperature range: -40°C to +125°C
? Low temperature coefficient : 100ppm/°C (max)
? All parts AEC-Q100 Grade1 qualified

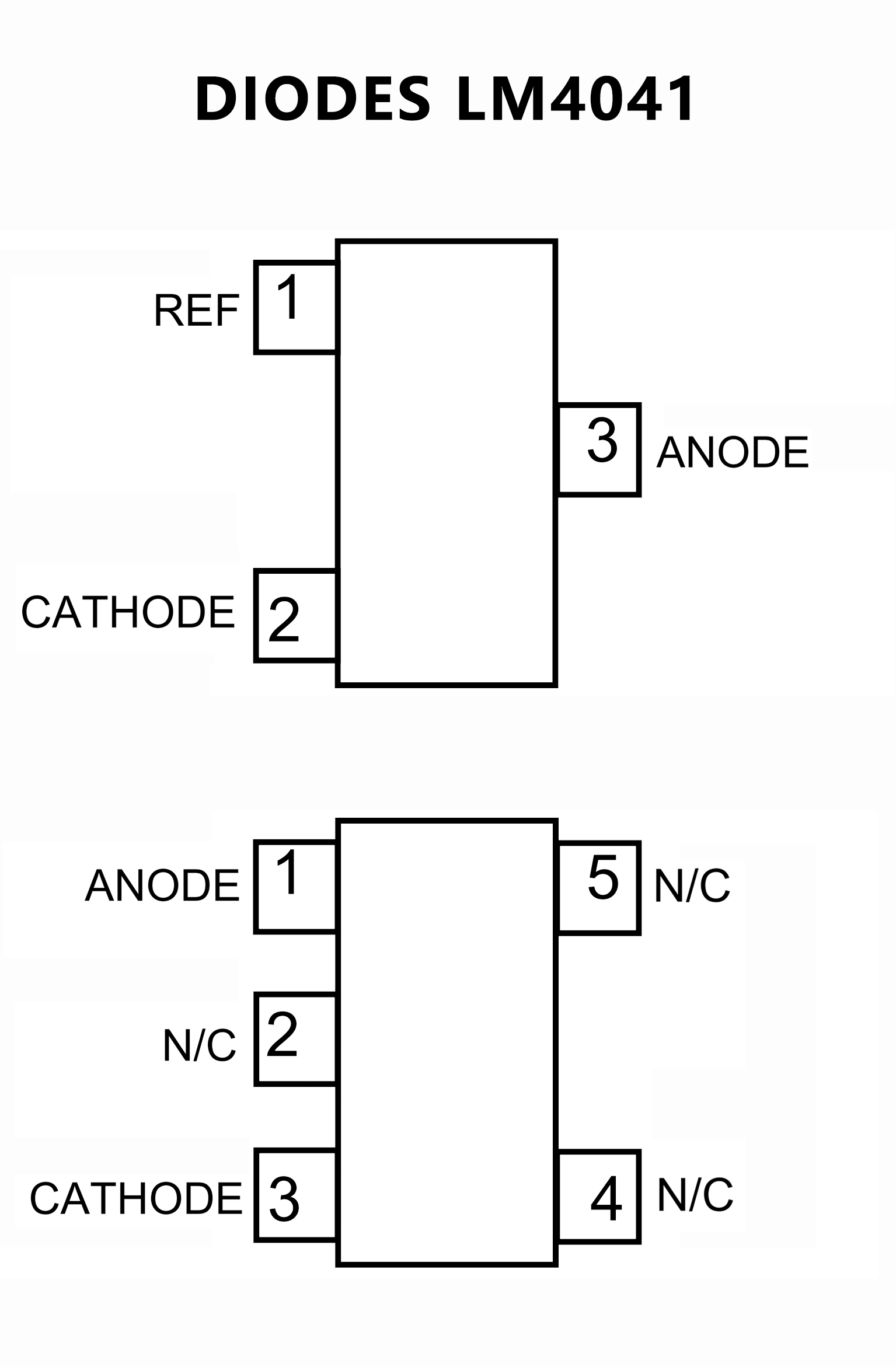

PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Small 3-Pin SC70 Package
? 0.1% (max) Initial Accuracy
? 100ppm/°C (max) Temperature Coefficient
Guaranteed over -40°C to +125°C Temperature
Range
? Wide Operating Current Range: 60μA to 12mA
? Low 20μVRMS Output Noise (10Hz to 10kHz)
? 1.225V Fixed Reverse Breakdown Voltage
? No Output Capacitors Required
? Tolerates Capacitive Loads

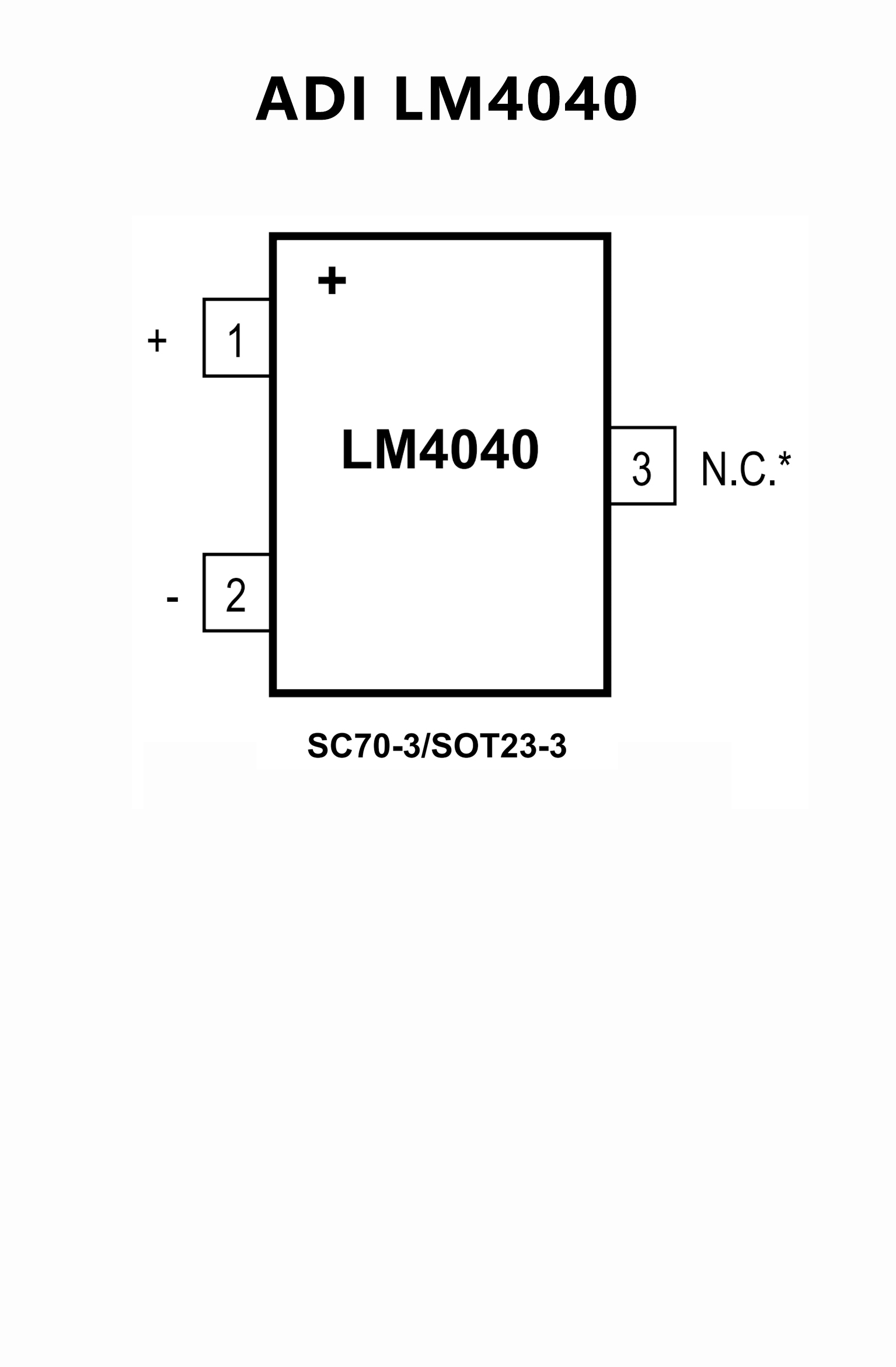

PIN CONFIGUTION
