Precision Micropower Shunt Voltage Reference, DIODESLM4041 Replace TI LM4041.
LM4041
LM4041.pdf
LM4041.pdfFEATURES
? Small packages: SOT23, SC70-5
? No output capacitor required
? Output voltage tolerance
? LM4041C: ±0.5% at 25°C
? LM4041D: ±1% at 25°C
? Low output noise: 20μVrms (10Hz to 10kHz)
? Wide operating current range: 60μA to 12mA
? Extended temperature range: -40°C to +125°C
? Low temperature coefficient : 100ppm/°C (max)
? All parts AEC-Q100 Grade1 qualified

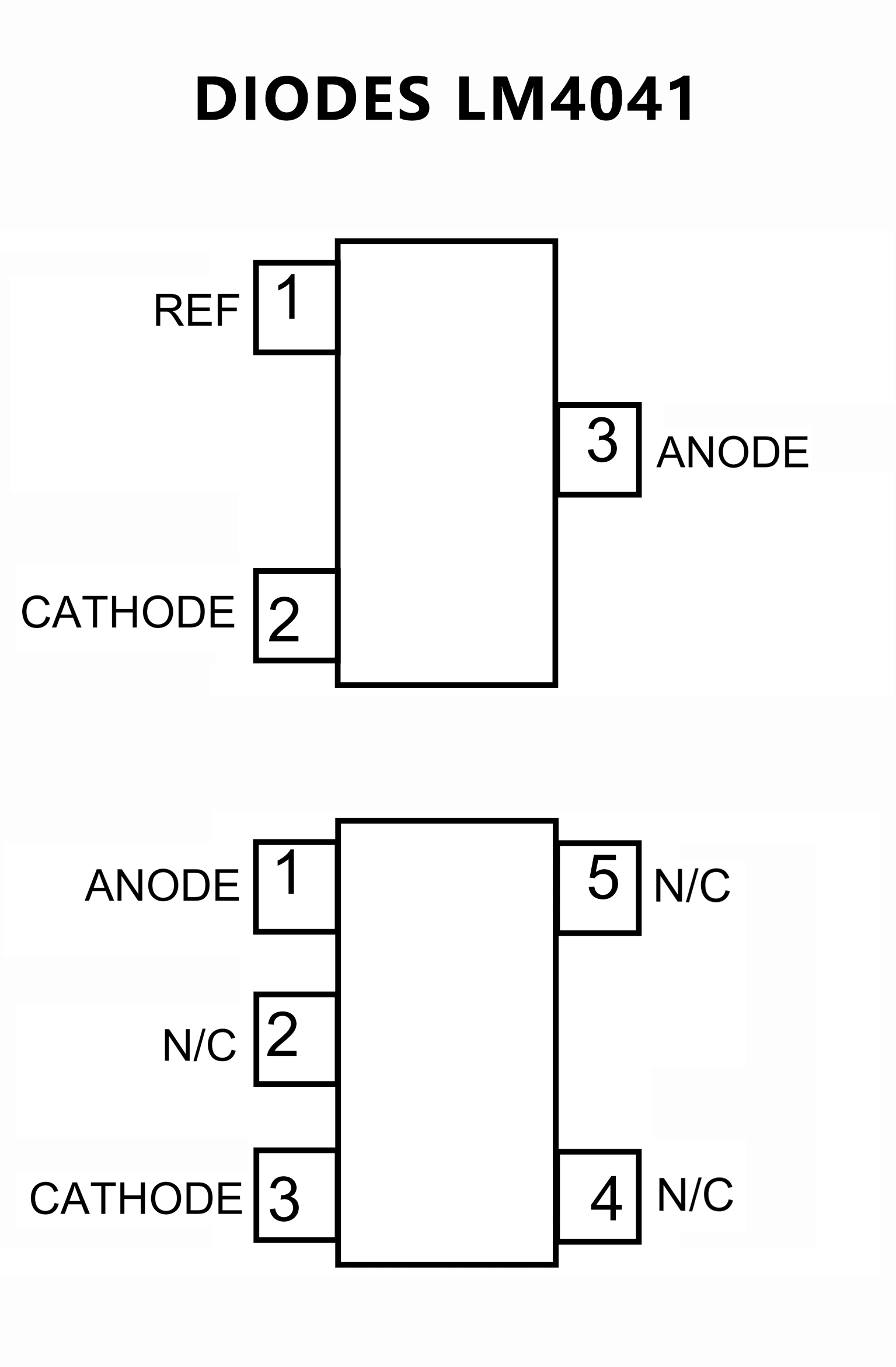

PIN CONFIGUTION
優勢替代
FEATURES
? 1.225V Fixed and adjustable outputs (1.225V to 10V)
? Tight output tolerances and low temperature
coefficient
– Maximum 0.1%, 100ppm/°C – A grade
– Maximum 0.2%, 100ppm/°C – B grade
– Maximum 0.5%, 100ppm/°C – C grade
– Maximum 1.0%, 150ppm/°C – D grade
? Low output noise . . . 20μVRMS (typical)
? Wide operating current range . . .
45μA (typical) to 12mA
? Stable with all capacitive loads; no output
capacitor required
? Available in
– Industrial temperature: –40°C to 85°C
– Extended temperature: –40°C to 125°C

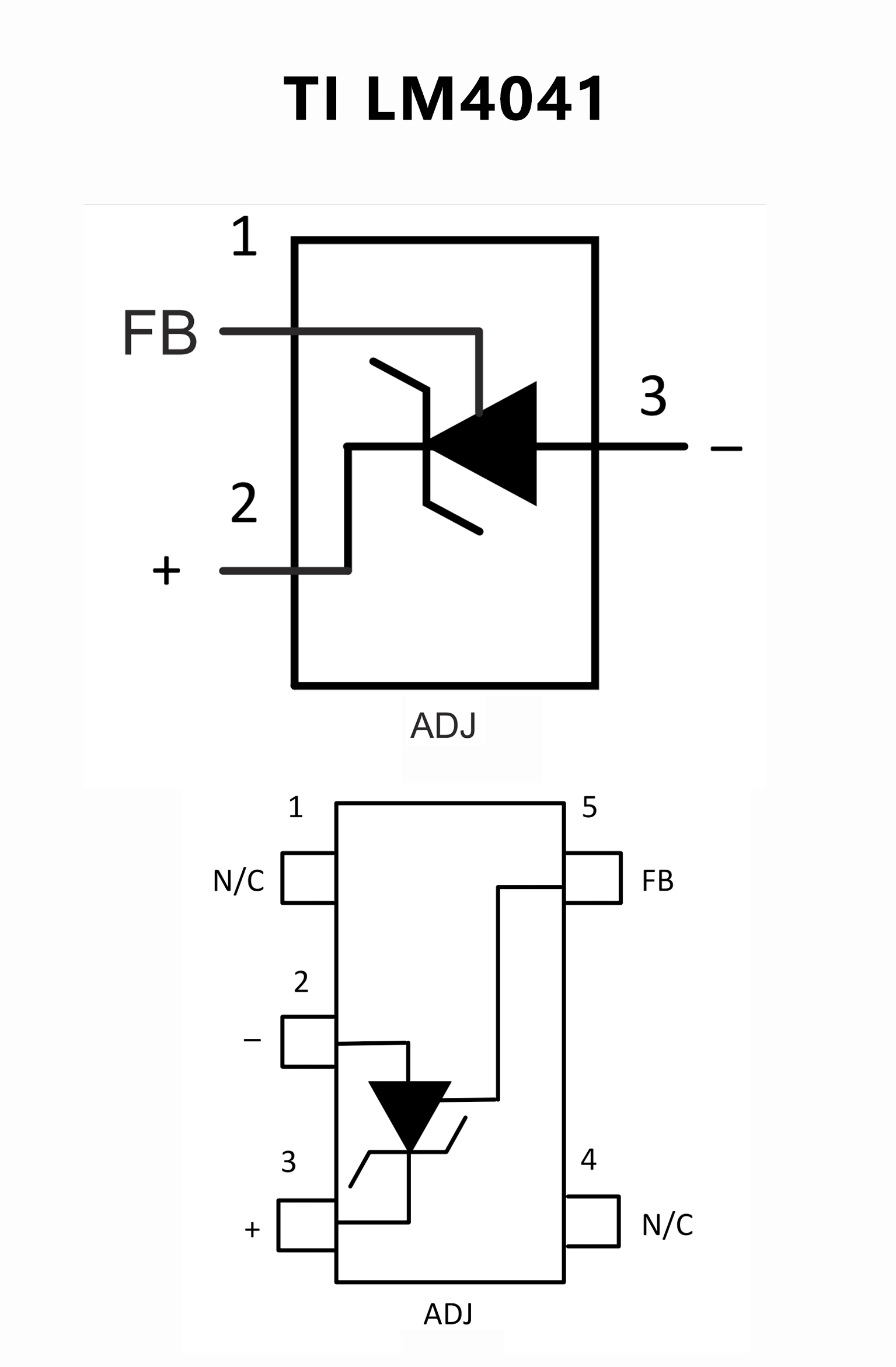

PIN CONFIGUTION
