4-Bits Bi-directional Level Translator Auto Direction 110Nbps PUSH-PULL Applications, LXB0104 Replace TXB0104.
LXB0104
LXB0104.pdf
LXB0104.pdfFEATURES
? Bi-Directional Voltage Translation for Push-Pull
Applications
? Specified from -40°C to +125°C
? VCCA for A Port: 1.2V to 3.6V
? VCCB for B Port: 1.65V to 5.5V
? Up & Down Translation Data Rate
? ≤ 110Mbps, CL = 15pF, 3.3V to 5.0V Translation
? ≤ 60Mbps, CL = 15pF, 1.8V to 3.3V Translation
? ≤ 30Mbps, CL = 15pF, 1.2V to 1.8V Translation
? IOFF Circuitry Provides Partial-Power-Down Mode
Operation
? OE Pin Supports High-Impedance Exists Between Ports
? ESD Protection Exceeds JESD 22
? 7000V HBM (B Port), 3000V HBM (A Port)
? 1500V CDM (C101)
? Latchup Exceeds 100mA per JESD 17
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

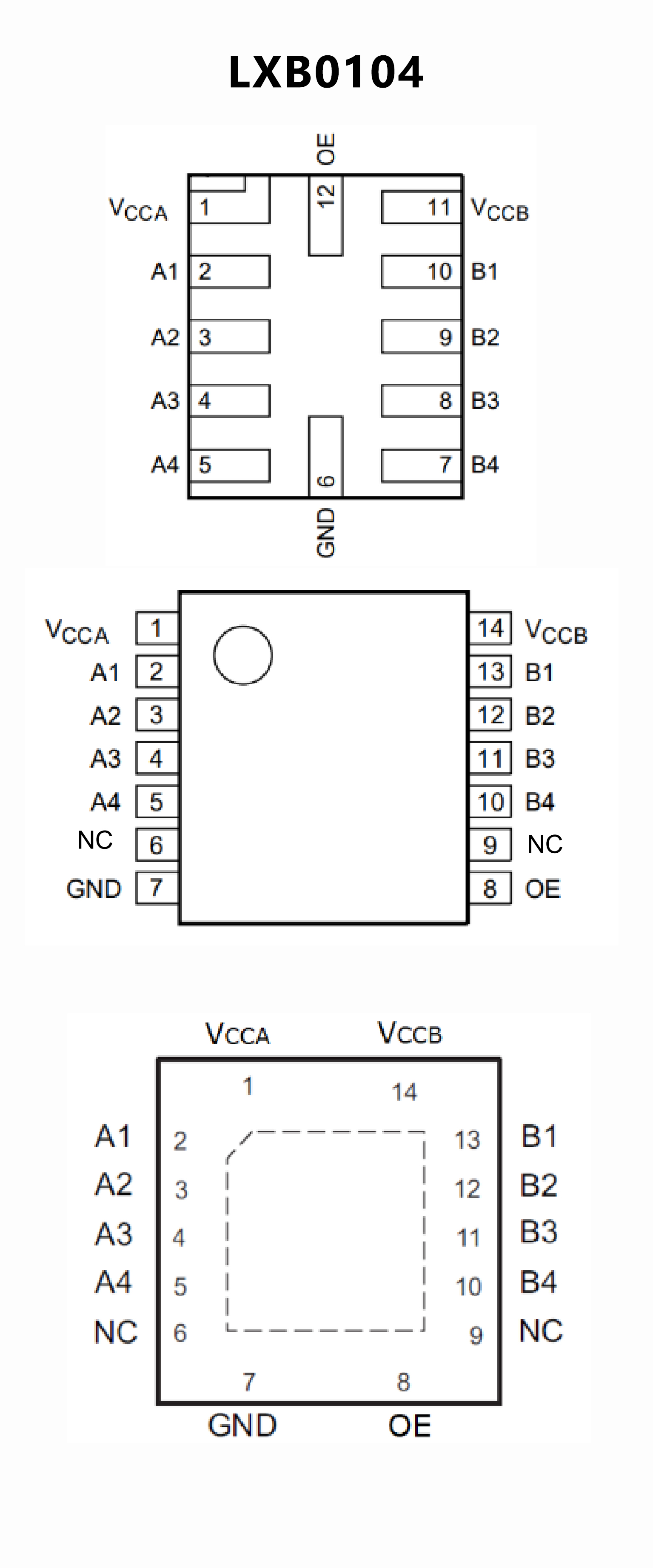

PIN CONFIGUTION
優勢替代
FEATURES
? 1.2-V to 3.6-V on A port and 1.65-V to 5.5-V
on B port (VCCA ≤ VCCB)
? VCC isolation feature: if either VCC input ss at GND,
all outputs are in the high-impedance state
? Output enable (OE) input circuit referenced to VCCA
? Low power consumption, 5-μA maximum ICC
? I OFF supports partial power-down mode operation
? Latch-up Performance Exceeds 100 mA Per JESD
78, Class II
? ESD Protection Exceeds JESD 22
A Port:
? 2500-V Human-Body Model (A114-B)
? 1500-V Charged-Device Model (C101)
B Port:
? ±15-kV Human-Body Model (A114-B)
? 1500-V Charged-Device Model (C101)

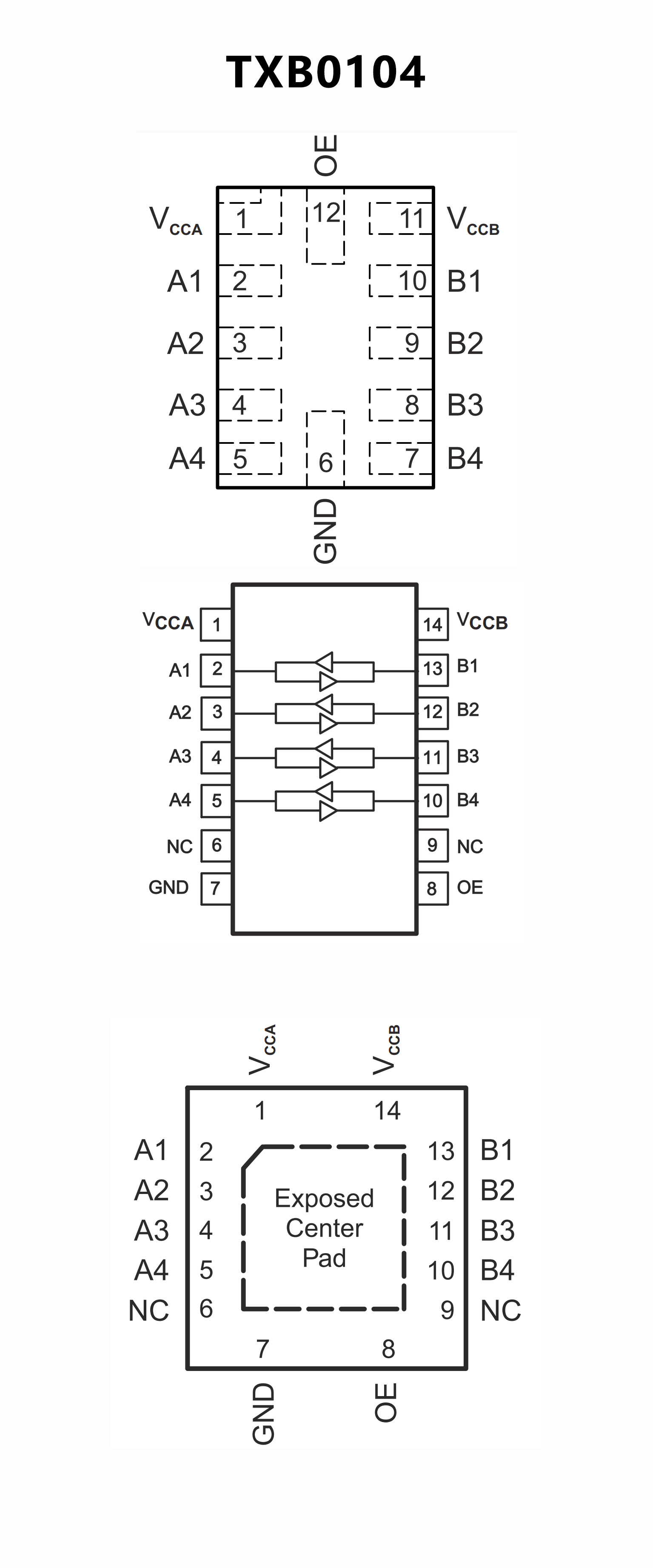

PIN CONFIGUTION
