Dual supply translating transceiver; open drain; auto direction sensing, LXS0102 Replace NTS0102.
LXS0102
LXS0102.pdf
LXS0102.pdfFEATURES
? High-Speed with 24Mb/s Data Rate for push-pull
applications
? High-Speed with 2Mb/s Data Rate for open-drain
applications
? 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port
? VCCA must be less than or equal to VCCB
? No Direction-Control Signal Needed
? Low Bit-to-Bit Skew
? Non-preferential Power-up Sequencing
? ESD protection exceeds JESD22-Al14
A Port: 2000V HBM
B Port:5KV HBM-V,SS,HK
7KVHBM-GBA only
? Integrated 1OkO Pull-up Resistors
? Packaging (Pb-free & Green):
8-DFN1xl.4 (HK)
8-VSSOP (V)
8-SSOP (SS)
8-WLCSP (GBA)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

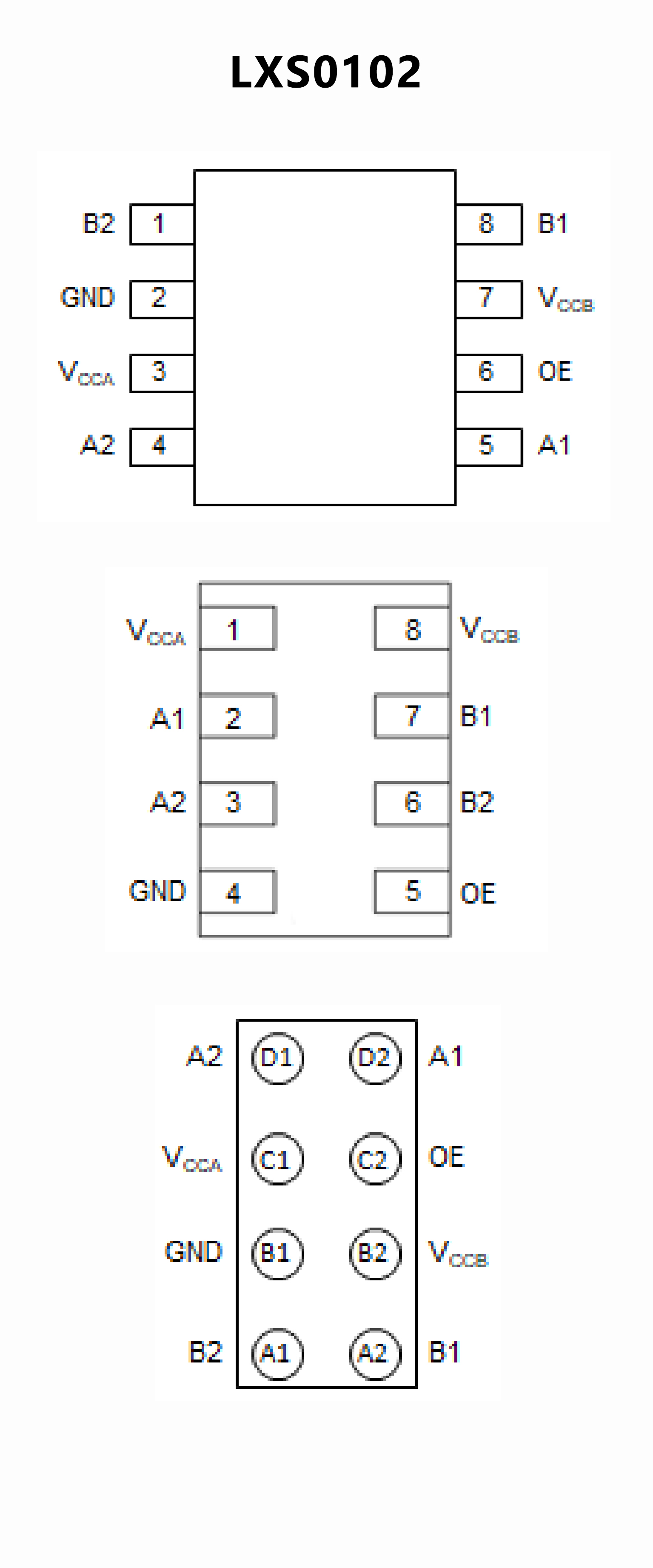

PIN CONFIGUTION
優勢替代
FEATURES
? Wide supply voltage range:
? VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
? Maximum data rates:
? Push-pull: 50 Mbps
? IOFF circuitry provides partial Power-down mode operation
? Inputs accept voltages up to 5.5 V
? ESD protection:
? HBM JESD22-A114E Class 2 exceeds 2500 V for A port
? HBM JESD22-A114E Class 3B exceeds 8000 V for B port
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101E exceeds 1500 V
? Latch-up performance exceeds 100mA per JESD 78B Class II
? Multiple package options
? Specified from ?40 ?C to +85 ?C and ?40 ?C to +125 ?C

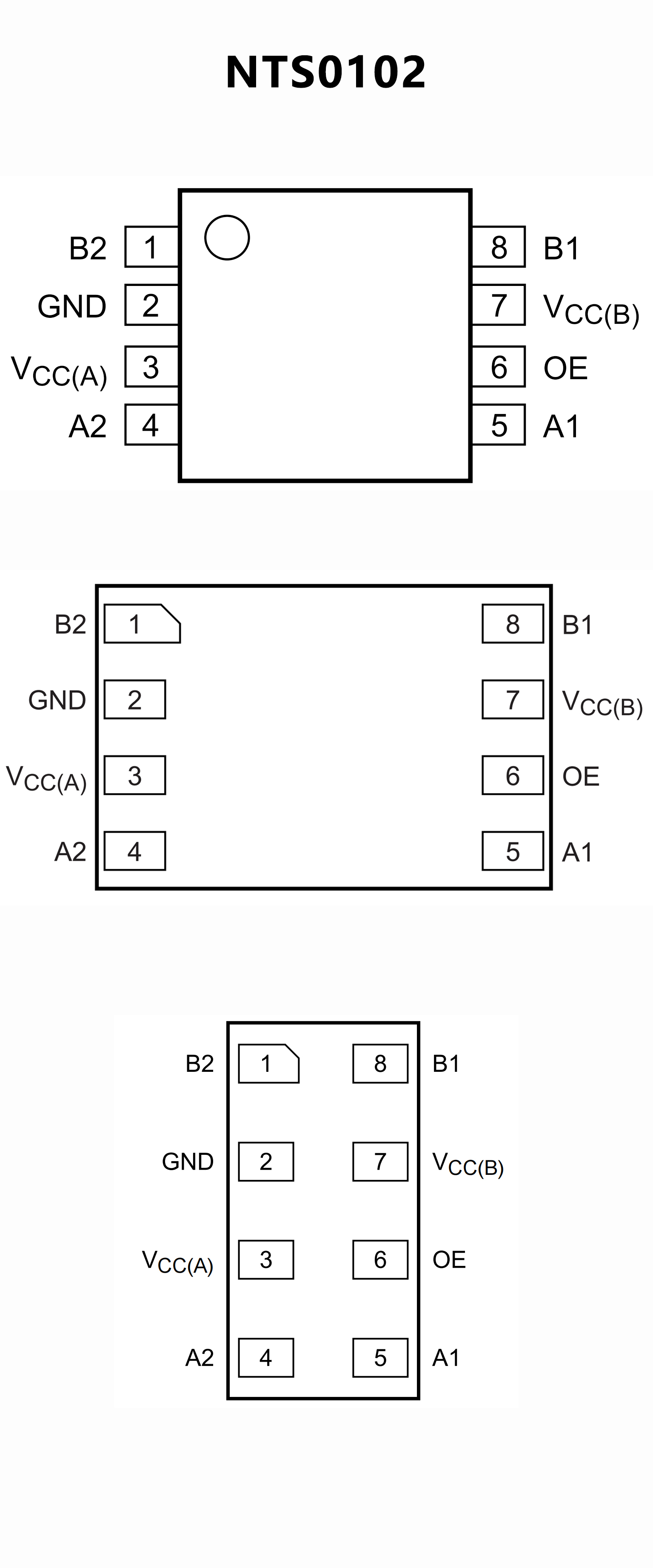

PIN CONFIGUTION
