Dual supply translating transceiver; open drain; auto direction sensing, LXS0102 Replace NXS0102.
FEATURES

? High-Speed with 24Mb/s Data Rate for push-pull

  applications

? High-Speed with 2Mb/s Data Rate for open-drain

  applications

? 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port

? VCCA must be less than or equal to VCCB

? No Direction-Control Signal Needed

? Low Bit-to-Bit Skew

? Non-preferential Power-up Sequencing

? ESD protection exceeds JESD22-Al14

   A Port: 2000V HBM

   B Port:5KV HBM-V,SS,HK

      7KVHBM-GBA only

? Integrated 1OkO Pull-up Resistors

? Packaging (Pb-free & Green):

   8-DFN1xl.4 (HK)

   8-VSSOP (V)

   8-SSOP (SS)

   8-WLCSP (GBA)

? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

? Halogen and Antimony Free. “Green” Device (Note 3)

? For automotive applications requiring specific change

  control

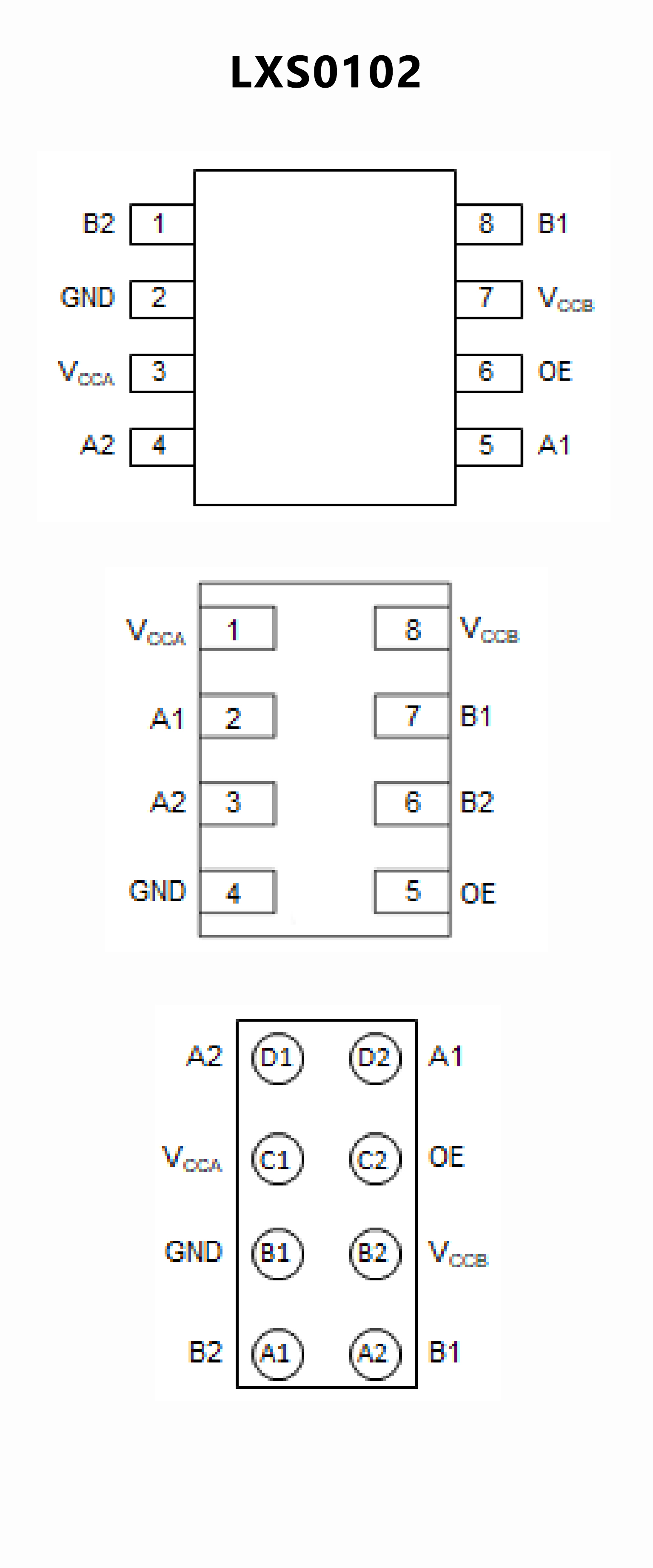

PIN CONFIGUTION
優勢替代
NXS0102 NXS0102.pdf

No.14342

FEATURES

? Wide supply voltage range:

  ? VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
? Maximum data rates:
  ? Push-pull: 24 Mbps
? IOFF circuitry provides partial Power-down mode operation
? Inputs accept voltages up to 5.5 V
? Latch-up performance exceeds 100mA per JESD78B Class II
? ESD protection:

  ? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2500V

    for A port

  ? HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 8000V

    for B port

  ? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1500V
? Multiple package options

? Specified from -40 °C to +85 °C and -40 °C to +125 °C

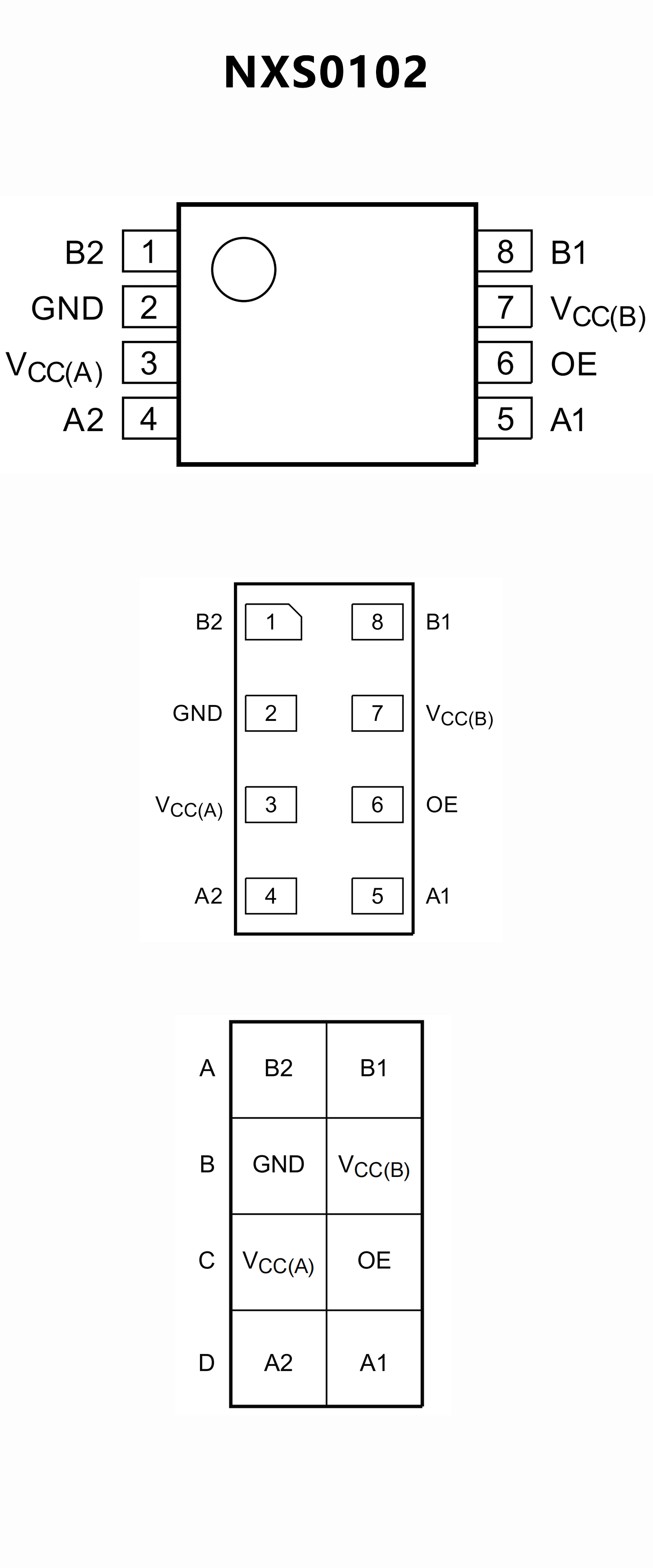

PIN CONFIGUTION
