LXS0102.pdf? High-Speed with 24Mb/s Data Rate for push-pull
applications
? High-Speed with 2Mb/s Data Rate for open-drain
applications
? 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port
? VCCA must be less than or equal to VCCB
? No Direction-Control Signal Needed
? Low Bit-to-Bit Skew
? Non-preferential Power-up Sequencing
? ESD protection exceeds JESD22-Al14
A Port: 2000V HBM
B Port:5KV HBM-V,SS,HK
7KVHBM-GBA only
? Integrated 1OkO Pull-up Resistors

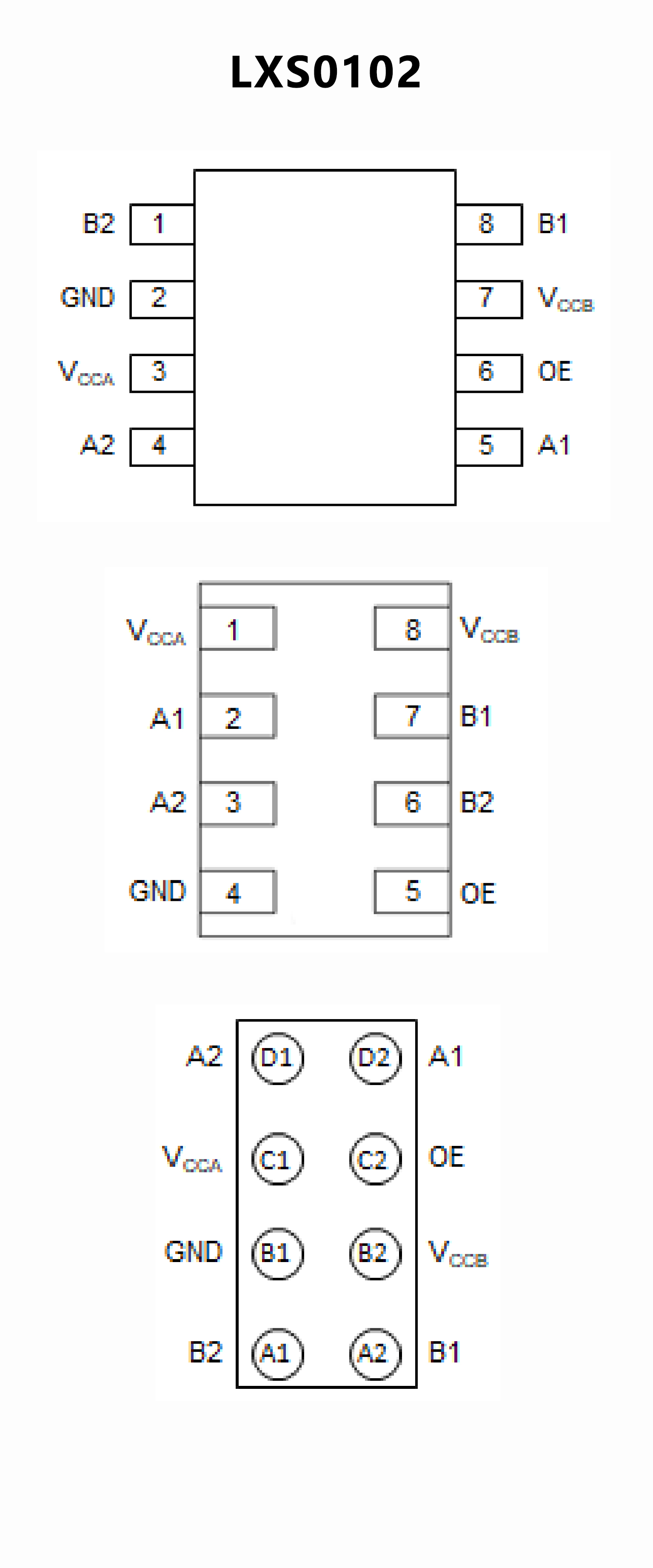

? Packaging (Pb-free & Green):
8-DFN1xl.4 (HK)
8-VSSOP (V)
8-SSOP (SS)
8-WLCSP (GBA)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control
? No Direction-Control Signal Needed
? Maximum Data Rates
24 Mbps (Push Pull)
2 Mbps (Open Drain)

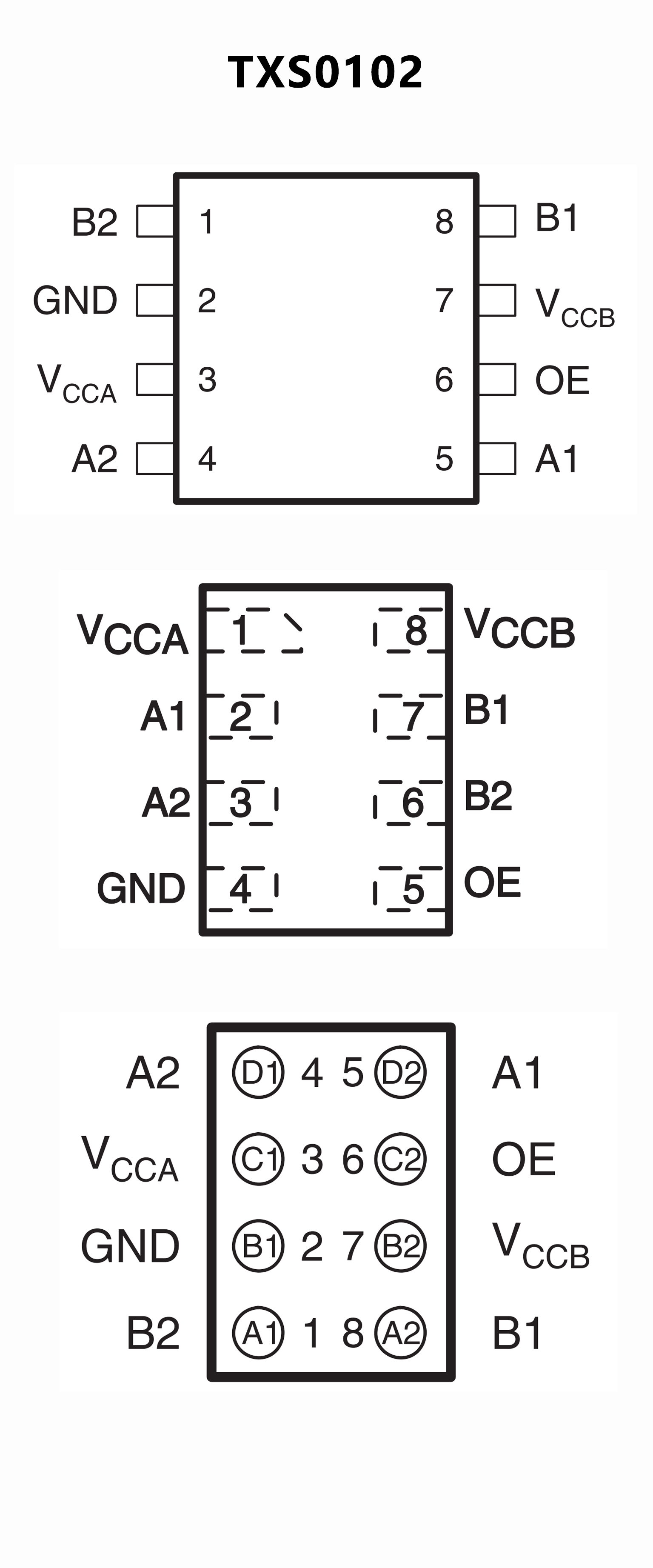

? Available in the Texas Instruments NanoStar?
Package
? 1.65 V to 3.6 V on A Port and 2.3 V to 5.5 V on B
Port (VCCA ≤ VCCB)
? VCC Isolation Feature: If Either VCC Input Is at
GND, Both Ports Are in the High-Impedance State
? No Power-Supply Sequencing Required: Either
VCCA or VCCB Can Be Ramped First
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100mA Per JESD 78,Class II
? ESD Protection Exceeds JESD 22
A Port:
2500-V Human-Body Model (A114-B)
250-V Machine Model (A115-A)
1500-V Charged-Device Model (C101)
B Port:
8-kV Human-Body Model (A114-B)
250-V Machine Model (A115-A)
1500-V Charged-Device Model (C101)
