LXS0108.pdf? Specified From-40°C to +85°C
? 3.3V and 5.0V Translations
110Mbps (Push-Pull)
0.8Mbps (Open-Drain)
? 1.8V and 2.5V,3.3V, 5.0V Translations
6OMbps (Push-Pull)
0.8Mbps (Open-Drain)
? 1.2V and 1.8V,2.5V,3.3V,5.0V Translations
20Mbps (Push-Pull)
0.6Mbps (Open-Drain)
? VccA: 1.2V to 3.6V
? VccB 1.65V to 5.5V
? VccA Must Be Less Than or Equal to VCCB
? No Direction-Control Signal Required
? Bit-to-Bit Skew as Low as 1.Ons
? ESD Protection Per ANSI/ESDA/JEDEC JS-001
APort: HBM士5000V
BPort:HBM士8000V
? IEC 61000-4-2 ESD (B Port)
士8000V Contact Discharge
? Integrated Pull-Up ResistorsPackaging (Pb-free & Green):

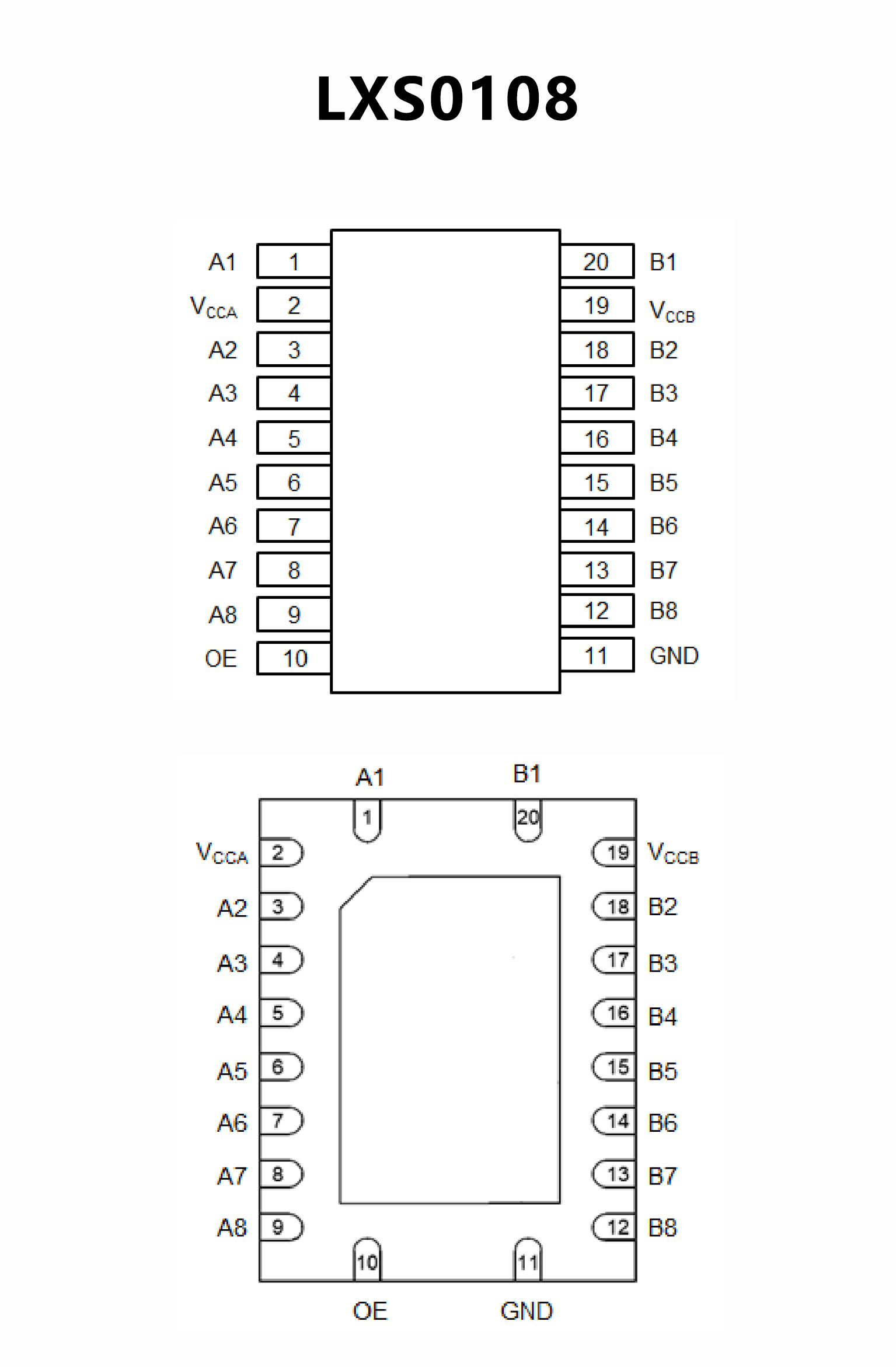

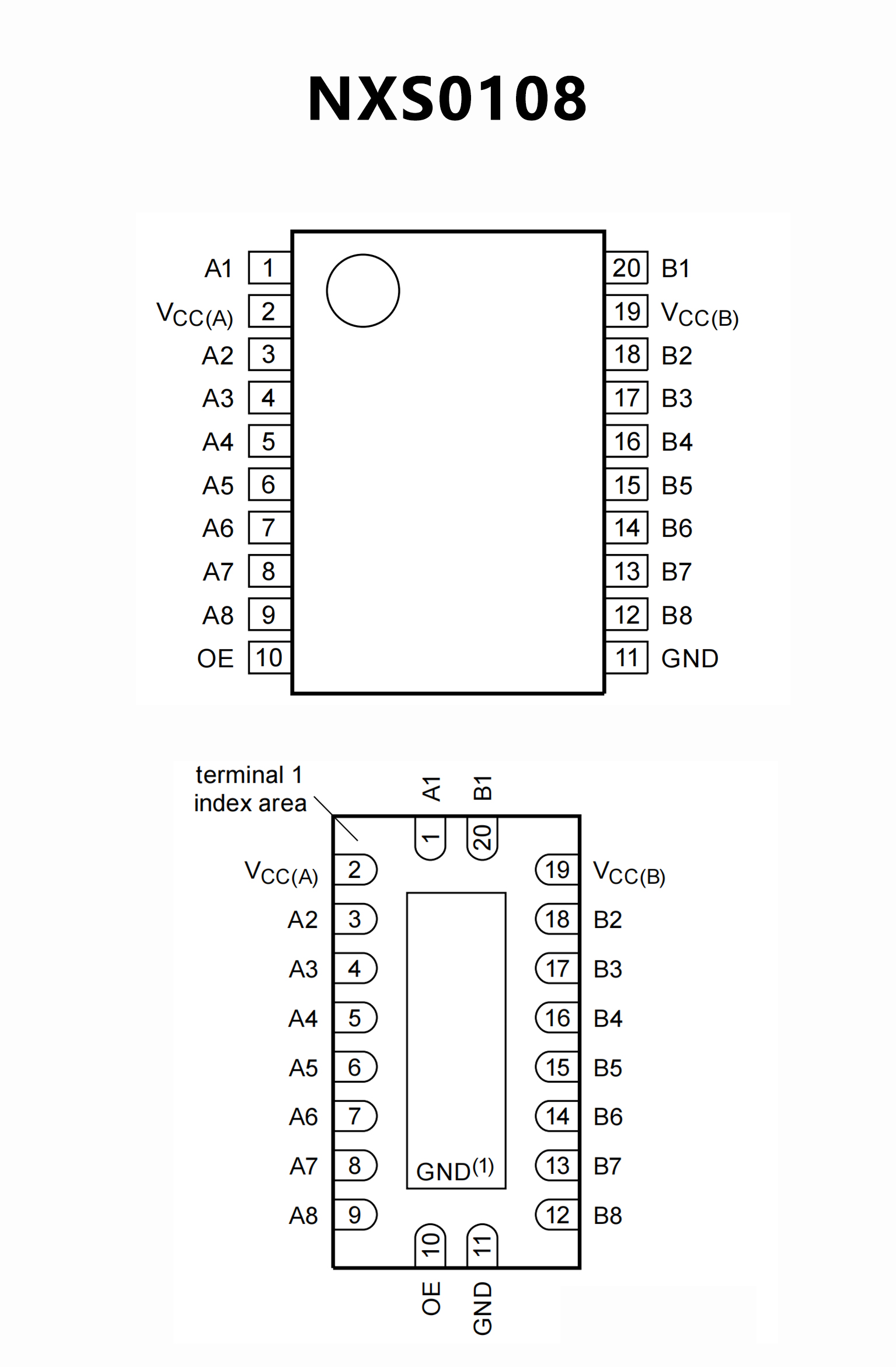

20-pin, TSSOP (L)
20-pin,4.5mmx3.5mm,W-QFN3545 (ZH)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? An automotive-compliant part is available under separate
datasheet (LXS0108Q)
? Wide supply voltage range:
? VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V
? Maximum data rates:
? Push-pull: 110 Mbps
? IOFF circuitry provides partial
Power-down mode operation
? Inputs accept voltages up to 5.5 V
? ESD protection:
? HBM JESD22-A114E Class 2 exceeds
2.5 kV for A port
? HBM JESD22-A114E Class 3B exceeds
15 kV for B port
? CDM JESD22-C101E exceeds 1.5 kV
? IEC61000-4-2 contact discharge
exceeds 8 kV for B port
? Latch-up performance exceeds 100
mA per JESD 78B Class II
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
