X 電容自動放電芯片, HF81 替代型號推薦 ME8701.
ME8701
ME8701.pdf
ME8701.pdfFEATURES
? 內(nei)置 1000V MOSFET
? AC 電(dian)壓接(jie)入后阻止 X 電(dian)容(rong)放電(dian)
? AC 電壓斷電后通過放(fang)電電阻(zu)對 X 電容放(fang)電
? 功率(lv)損耗<5mW@230VAC
? X 電容容值靈(ling)活調(diao)節(jie)，簡化(hua) EMI 濾(lv)波電路設計
? 自供電，無需(xu)外部(bu)偏置(zhi)
? 兩端子(zi)結構，滿足安規標準
? 內部(bu)限制最大(da)放電電流

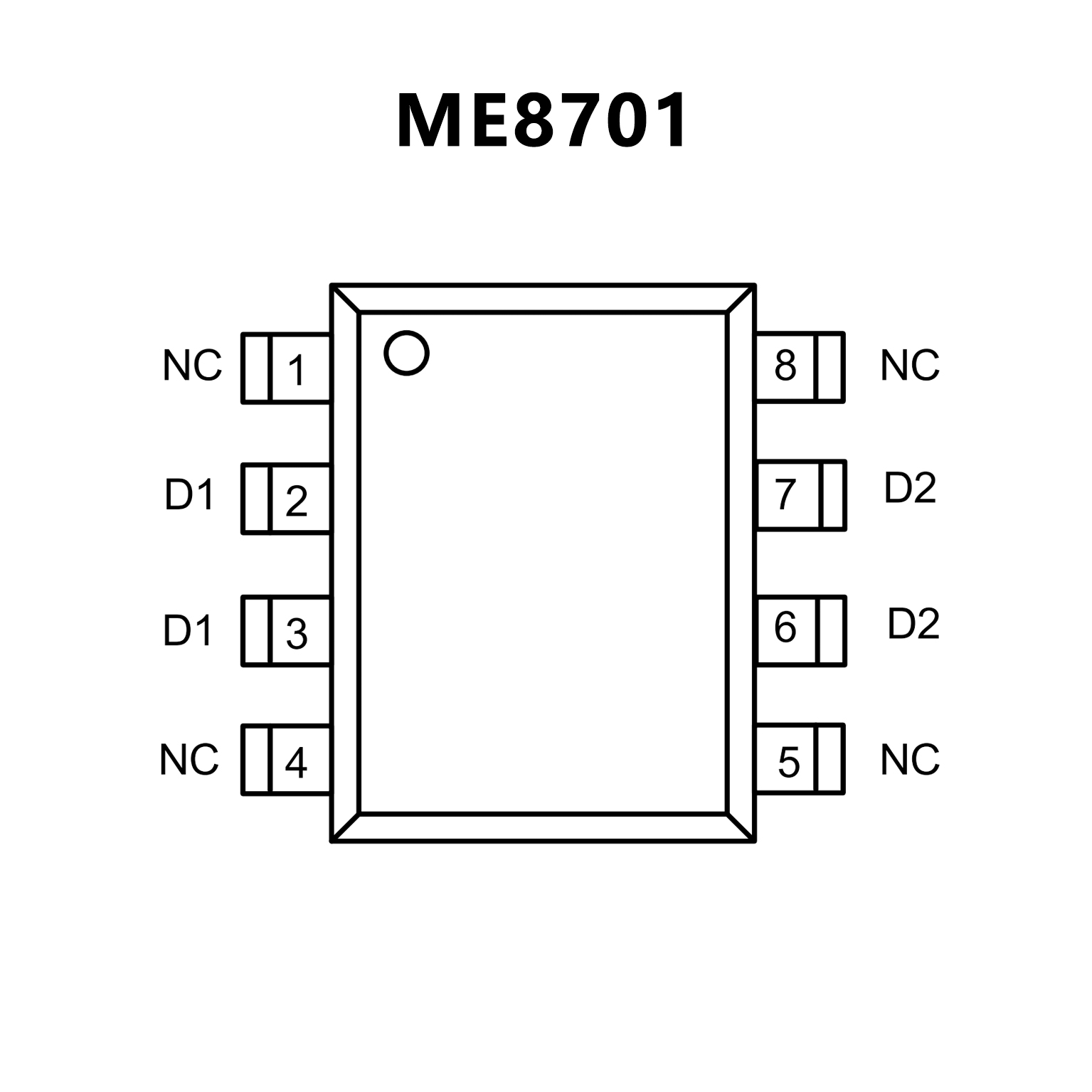

PIN CONFIGUTION
優勢替代
FEATURES
? Disconnect series discharge resistors from
L-N when AC voltage is applied
? Connect series discharge resistors with L-N
to discharge the X capacitor when AC
voltage is unplugged
? Supplied by AC voltage directly and doesn’t
need external bias
? Meets safety standards for use before or
after input fuse
? No external ground pin leads to high
common mode surge immunity
? 1000V internal JFET inside leads to high
differential surge immunity
? >4mm creepage on package and PCB
? Compliant to IEC 60950-1

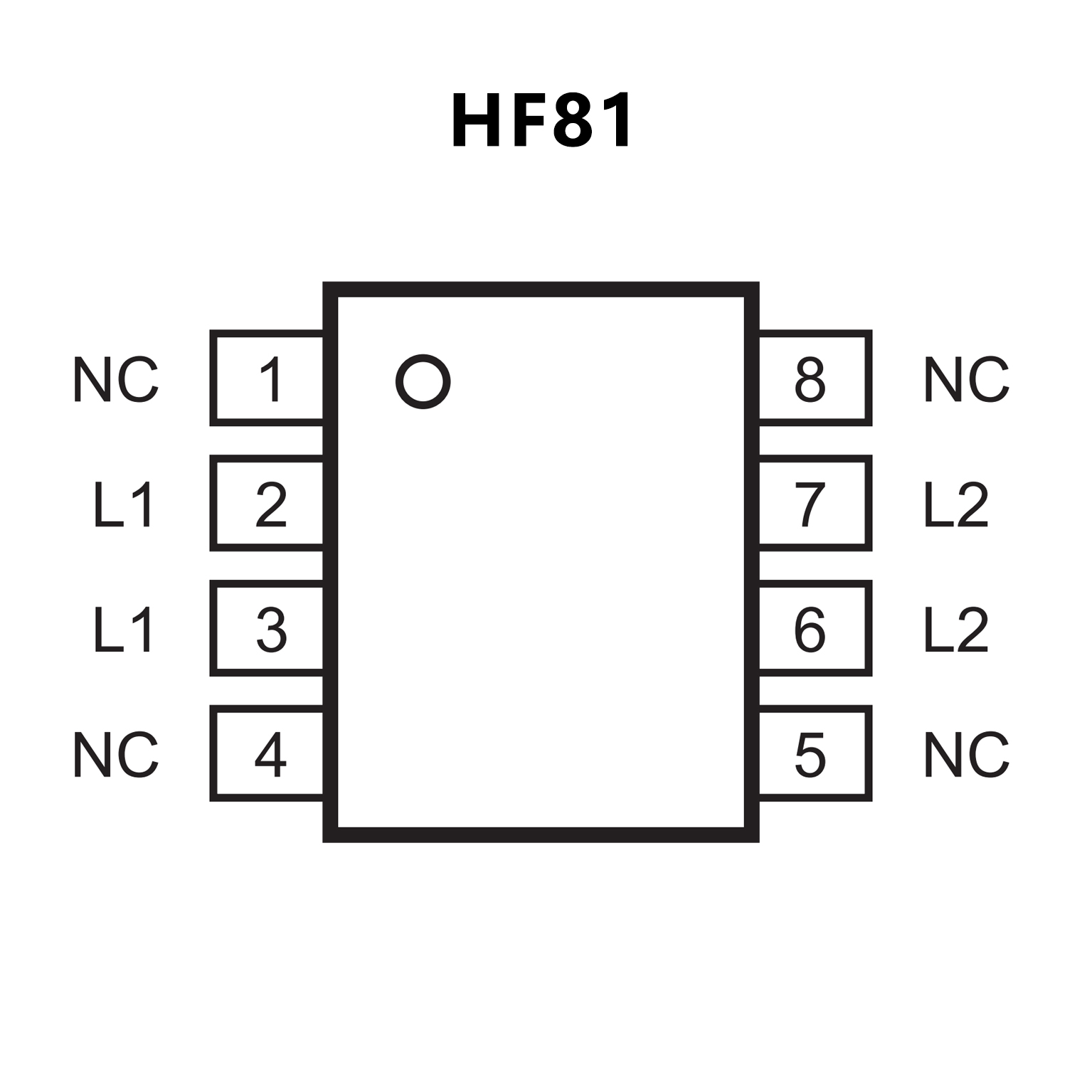

PIN CONFIGUTION
