X 電容自動放電芯片, NCP4810 替代型號推薦 ME8701.
ME8701
ME8701.pdf
ME8701.pdfFEATURES
? 內置(zhi) 1000V MOSFET
? AC 電壓接(jie)入后阻(zu)止 X 電容放(fang)電
? AC 電(dian)(dian)(dian)壓斷電(dian)(dian)(dian)后通過放電(dian)(dian)(dian)電(dian)(dian)(dian)阻對 X 電(dian)(dian)(dian)容放電(dian)(dian)(dian)
? 功率(lv)損耗<5mW@230VAC
? X 電(dian)容容值靈活調(diao)節，簡化 EMI 濾波電(dian)路設計
? 自供電，無需外部偏置(zhi)
? 兩端子結構，滿(man)足安規標準(zhun)
? 內(nei)部限制最大(da)放電電流

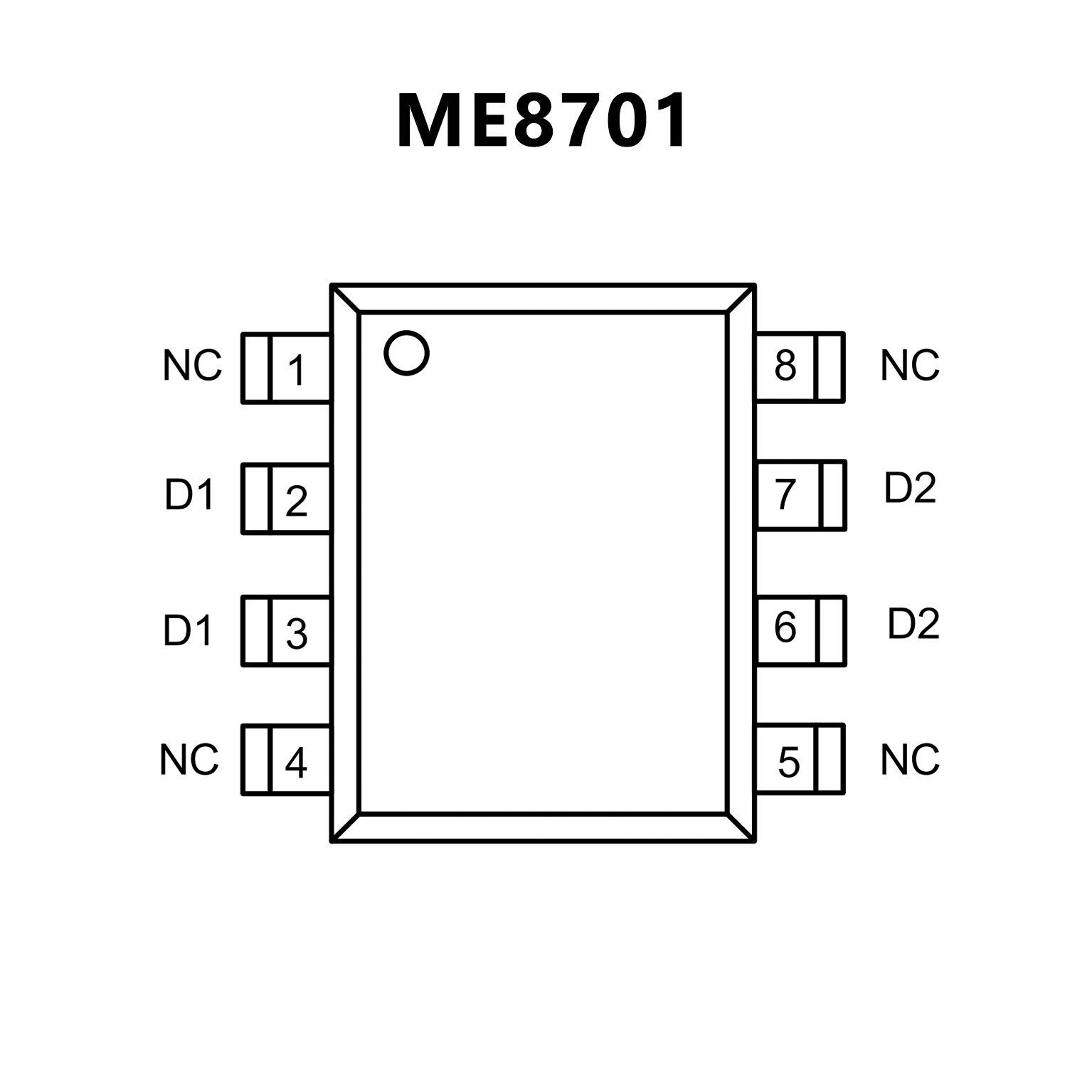

PIN CONFIGUTION
優勢替代
FEATURES
? Build?in 700 V MOSFET
? Minimum Discharge Capability 0.85 mA
? Self Consumption Below 11 mW @ 700 V
? NoVCC Necessary
? Compact SOIC?8 Package
? ?40°C to + 125°C Operating Temperature Range
? This is a Pb?Free Device

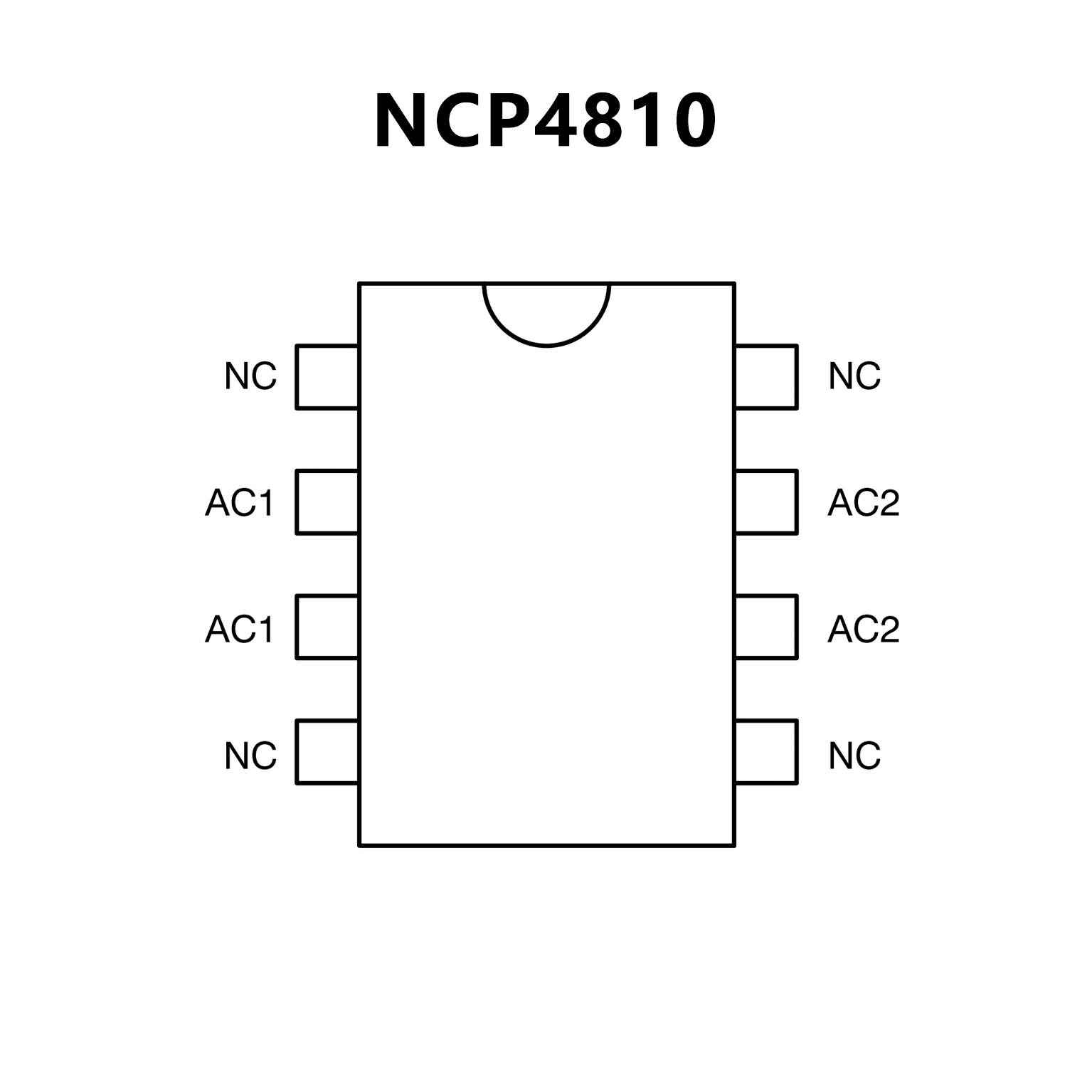

PIN CONFIGUTION
