1.8/3.3V High-Bandwidth 6-channel, 2:1 Mux/DeMux, PI3A27518 Replace TS3A27518E.
PI3A27518
PI3A27518.pdf
PI3A27518.pdfFEATURES
? CMOS Technology for bus and analog applications
? Low propagation delay
? Low typical On-Resistance: 5Ω
? Signal passing bandwidth, 380 MHz
? Wide VDD range: 1.65V to 3.6V
? Rail-to-Rail signal range
? High Off Isolation: -66dB @ 10MHz
? Crosstalk Rejection reduces signal distortion:
-60dB @ 10MHz
? Break-Before-Make Switching
? Extended Industrial Temperature Range:
-40°C to 85°C
? ESD protection : 2.5kV(HBM)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control
? //www.diodes.com/quality/product-definitions/
? Packaging (Pb-free & Green):
24-pin TQFN (ZD), 4mm x 4mm

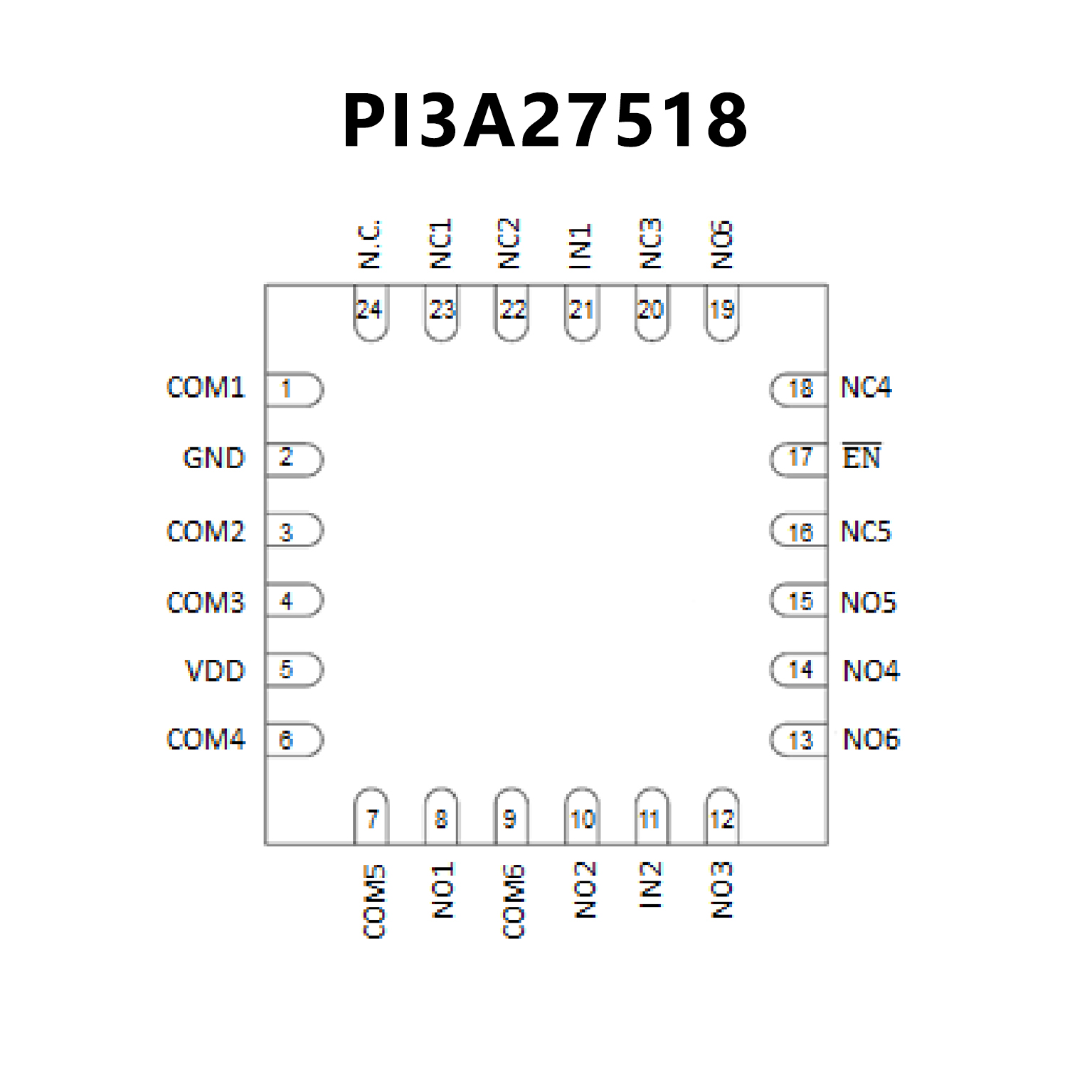

PIN CONFIGUTION
優勢替代
FEATURES
? 1.65 V to 3.6 V single-supply operation
? Isolation in power-down mode, VCC = 0
? Low-capacitance switches, 21.5 pF (typical)
? Bandwidth up to 240 MHz for high-speed
rail-to-rail signal handling
? Crosstalk and OFF isolation of –62 dB
? 1.8 V logic compatible control inputs
? 3.6 V tolerant control inputs
? Latch-up performance exceeds 100 mA per JESD
78, Class II
? ESD performance tested per JESD 22
2500-V human-body model (A114-B, Class II)
1500-V charged-device model (C101)
? ESD performance: NC/NO ports
±6-kV contact discharge (IEC 61000-4-2)
? 24-WQFN (4.00 mm × 4.00 mm) and 24-TSSOP
(7.90 mm × 6.60 mm) packages

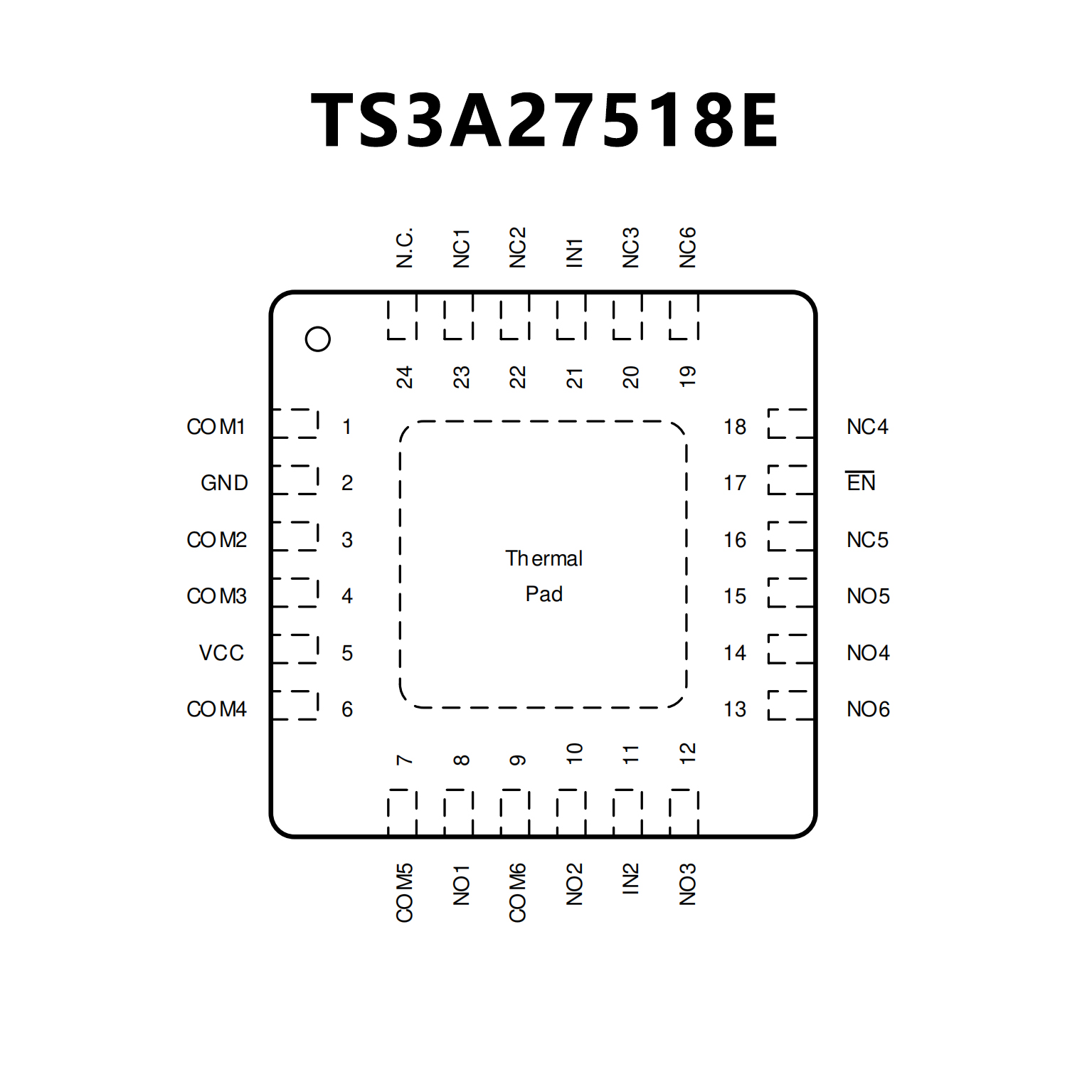

PIN CONFIGUTION
