3.3V, 4-Bit, 2-Port Nanoswitchw/Individual Enables, PI3B3125 Replace SN74CBTLV3125.
PI3B3125
PI3B3125.pdf
PI3B3125.pdfFEATURES
? Near-Zero propagation delay
? 5? switches connect inputs to outputs
? Fast Switching Speed -4ns Max.
? Ultra Low Quiescent Power (0.1μA Typical)
Ideally suited for notebook applications
? Packaging (Pb-free & Green available):
14-pin， SOIC (W)
14-pin，TSSOP (L)
14-pin， TQFN (ZDB)
16-pin，QSOP (Q)

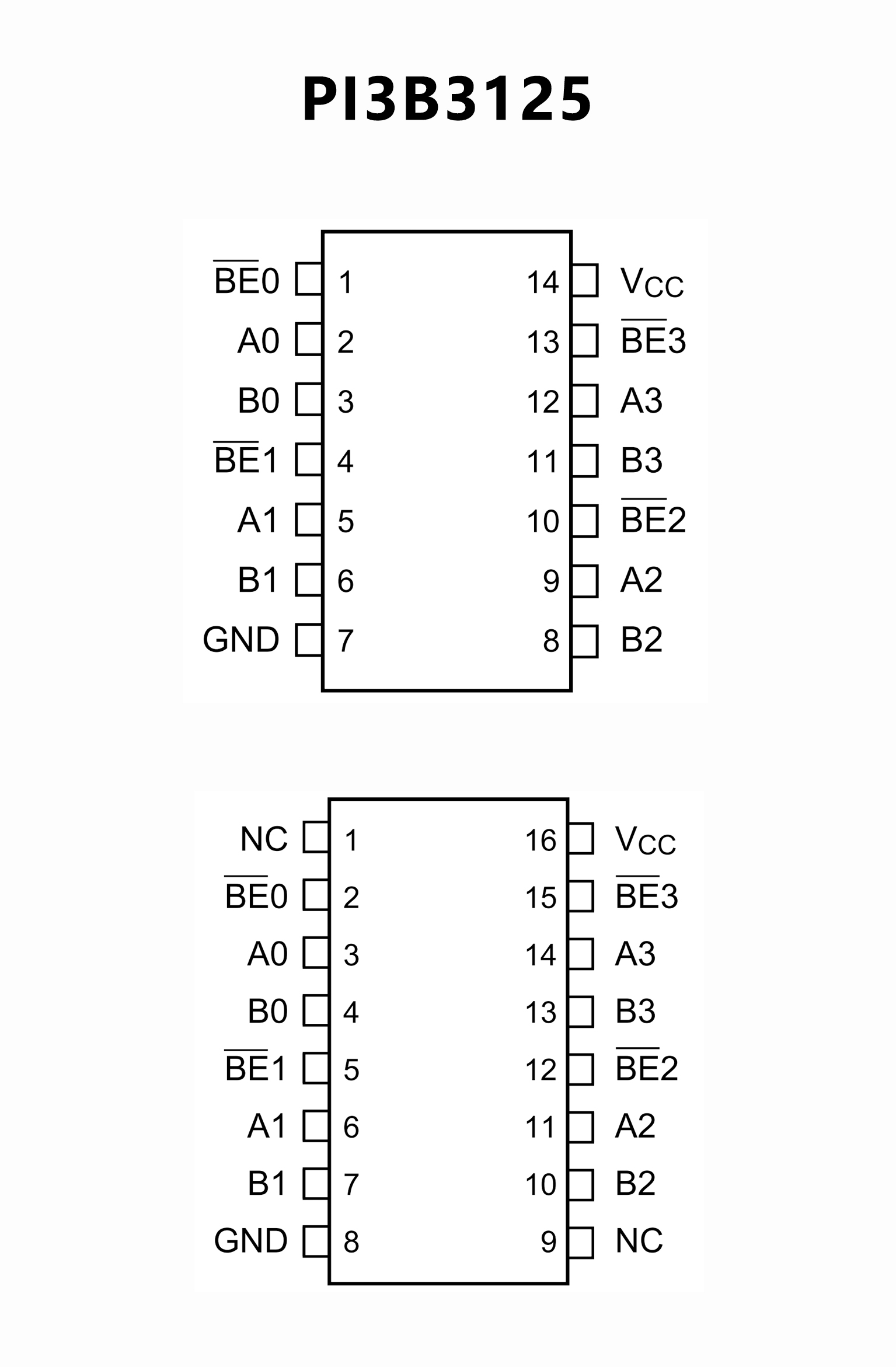

PIN CONFIGUTION
優勢替代
FEATURES
? Standard ’125-Type Pinout
? 5-? Switch Connection Between Two Ports
? Rail-to-Rail Switching on Data I/O Ports
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100 mA Per JESD 78,
Class II

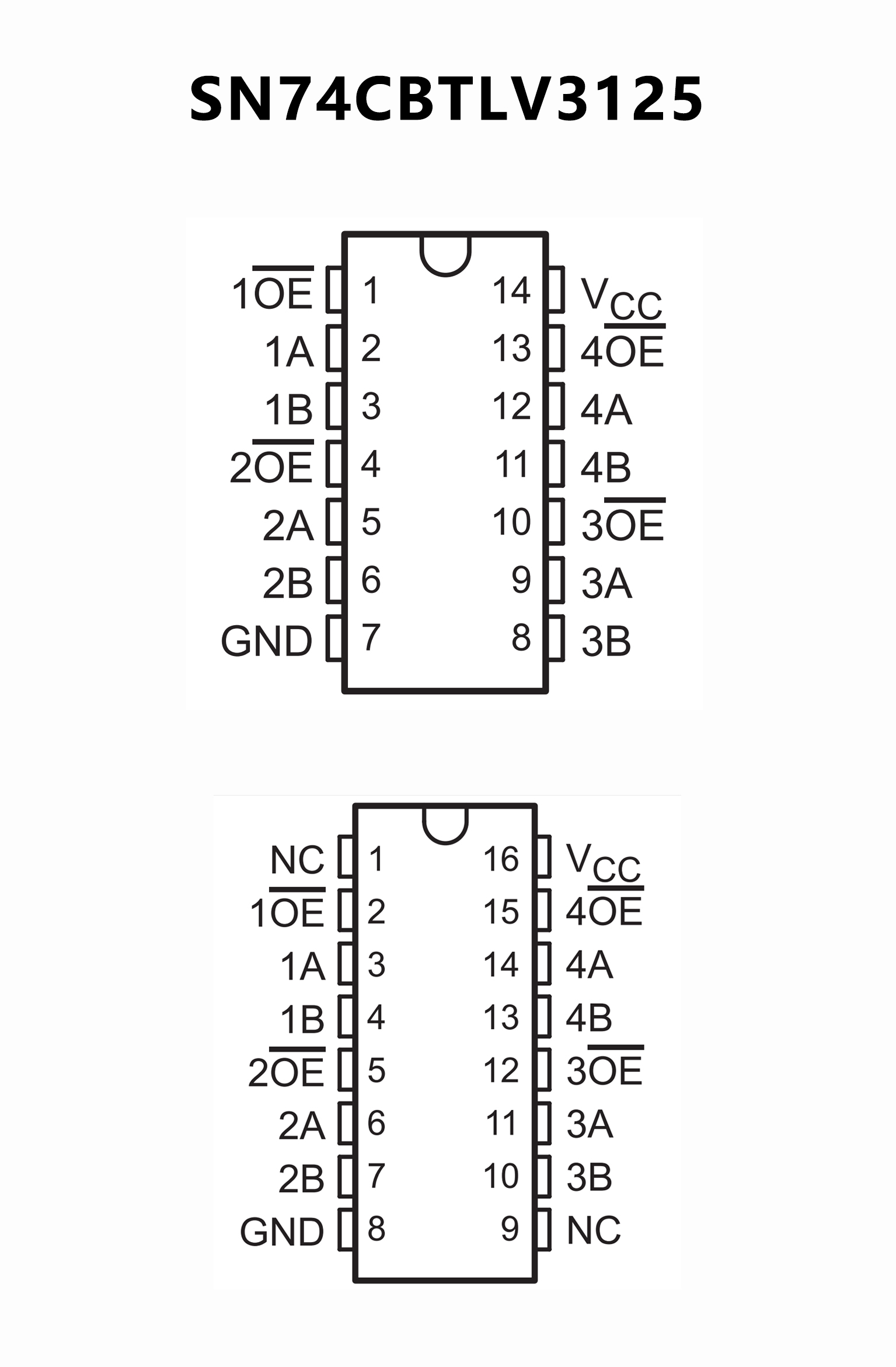

PIN CONFIGUTION
