3.3V, 4-Bit, 2-Port Nanoswitchw/Individual Enables, PI3B3126 Replace SN74CBTLV3126.
PI3B3126
PI3B3126.pdf
PI3B3126.pdfFEATURES
? Near-Zero propagation delay
? 5? switches connect inputs to outputs
? Fast Switching Speed -4ns Max.
? Ultra Low Quiescent Power (0.1μA Typical)
Ideally suited for notebook applications
? Packaging (Pb-free & Green available):
14-pin， SOIC (W)
14-pin，TSSOP (L)
14-pin， TQFN (ZDB)
16-pin，QSOP (Q)

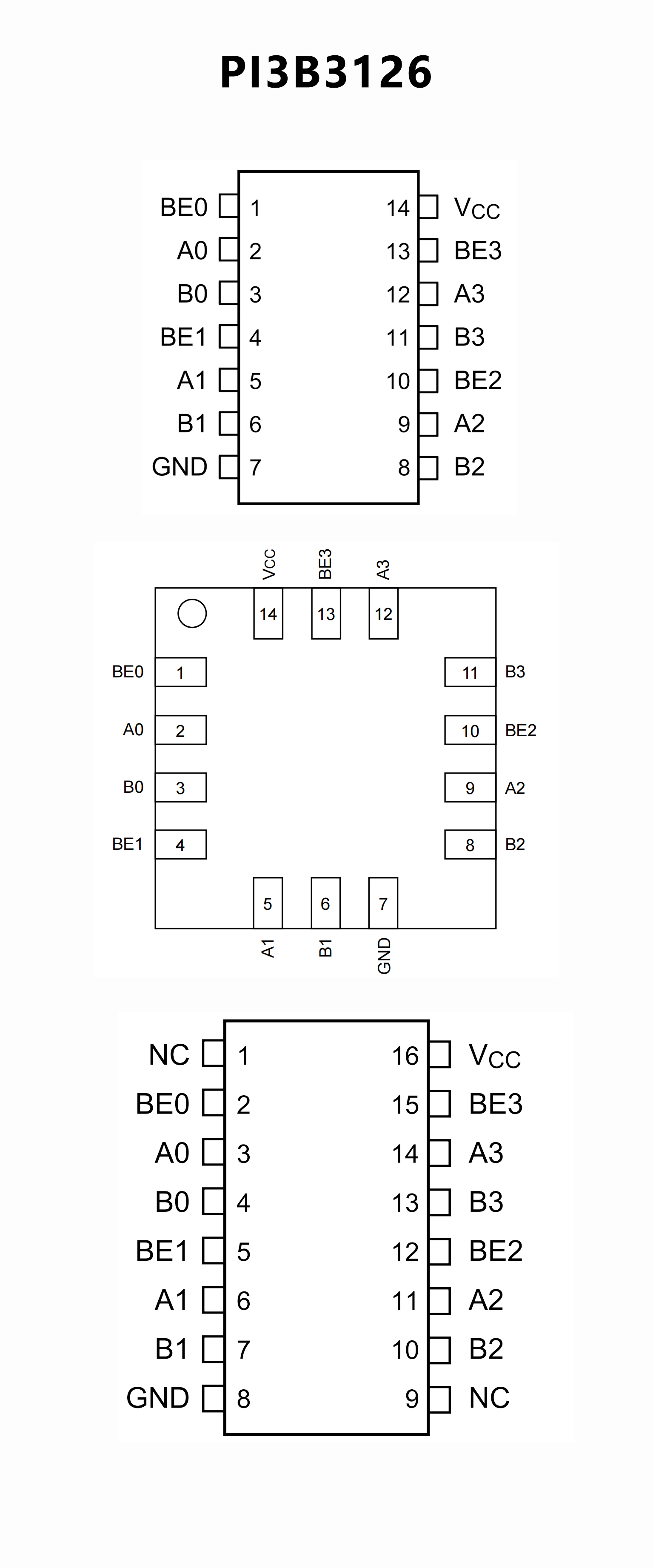

PIN CONFIGUTION
優勢替代
FEATURES
? Standard 126-type pinout
? 5-? switch connection between two ports
? Rail-to-rail switching on data I/O ports
? Ioff supports partial-power-down mode operation
? Latch-up performance exceeds 100 mA per JESD
78, Class II

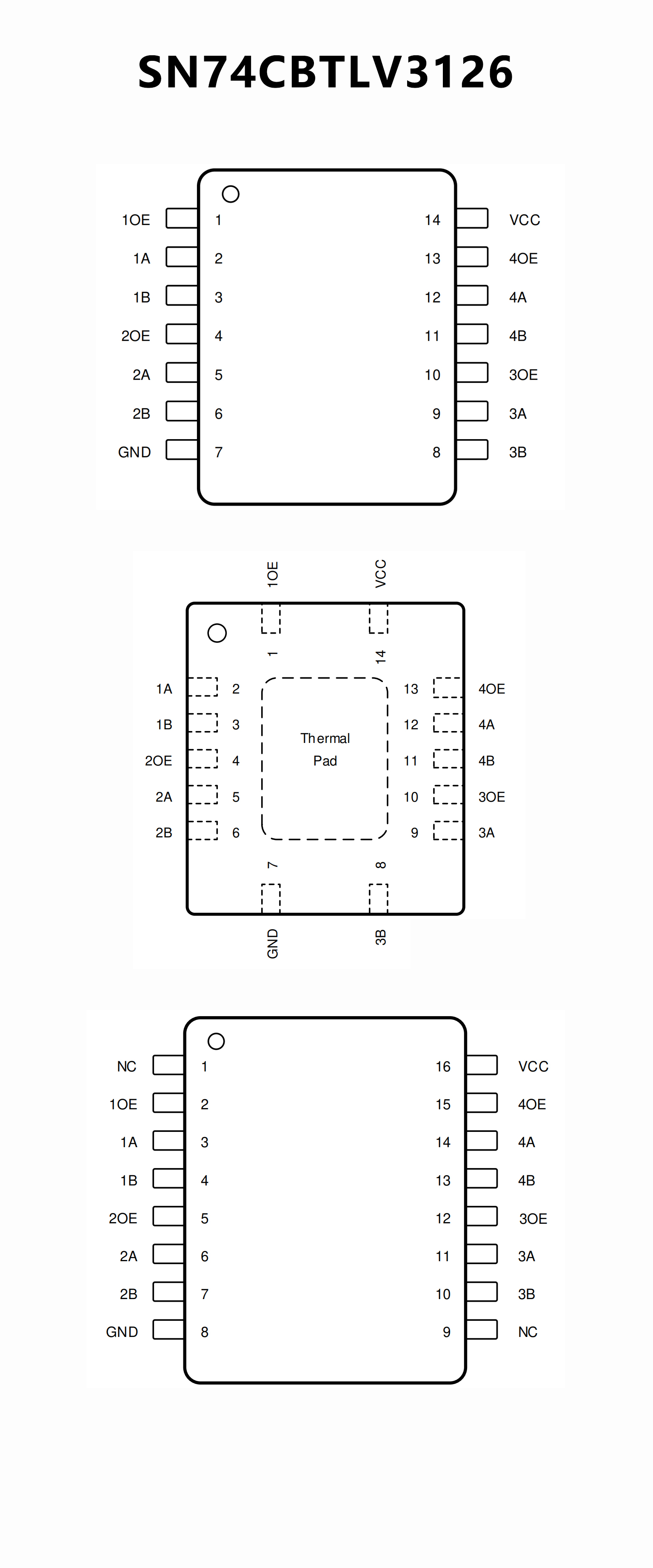

PIN CONFIGUTION
