3.3V, Dual 4:1 Mux/DeMux NanoSwitch, PI3B3253 Replace SN74CBTLV3253.
PI3B3253
PI3B3253.pdf
PI3B3253.pdfFEATURES
? Near-Zero Propagation Delay
? 5? Switches Connect Inputs to Outputs
? Fast Switching Speed: 5.2ns max.
? Ultra Low Quiescent Power (0.2μA Typical)
Ideally Suited for Notebook Applications
? Pin Compatible with 74 Series 253 Logic Devices
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green):
16-pin, QSOP (Q)
16-pin, TSSOP (L)
16-pin, UQFN (ZHD)

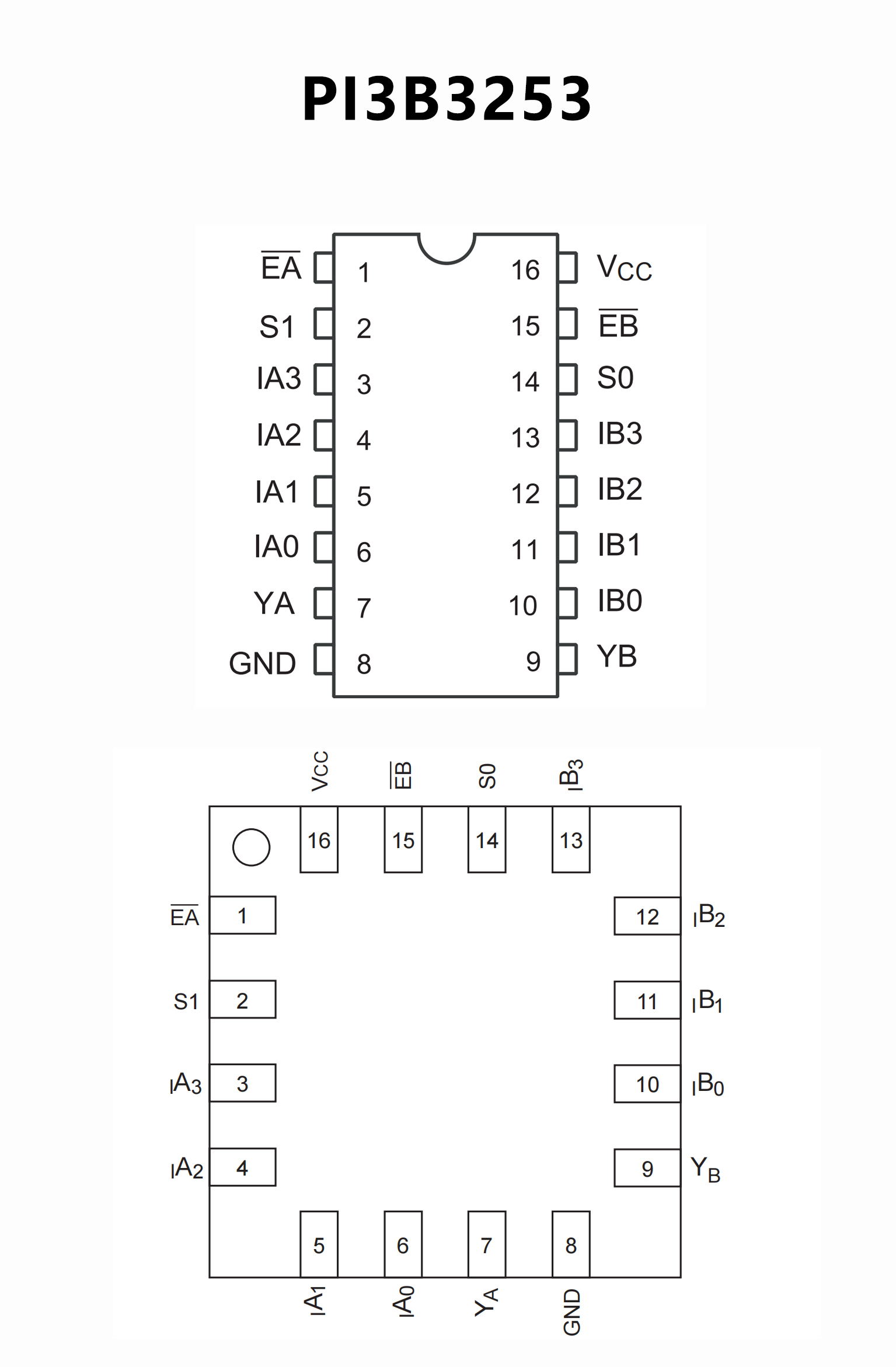

PIN CONFIGUTION
優勢替代
FEATURES
? Functionally Equivalent to QS3253
? 5-Ω Switch Connection Between Two Ports
? Rail-to-Rail Switching on Data I/O Ports
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100mA Per JESD78, Class II

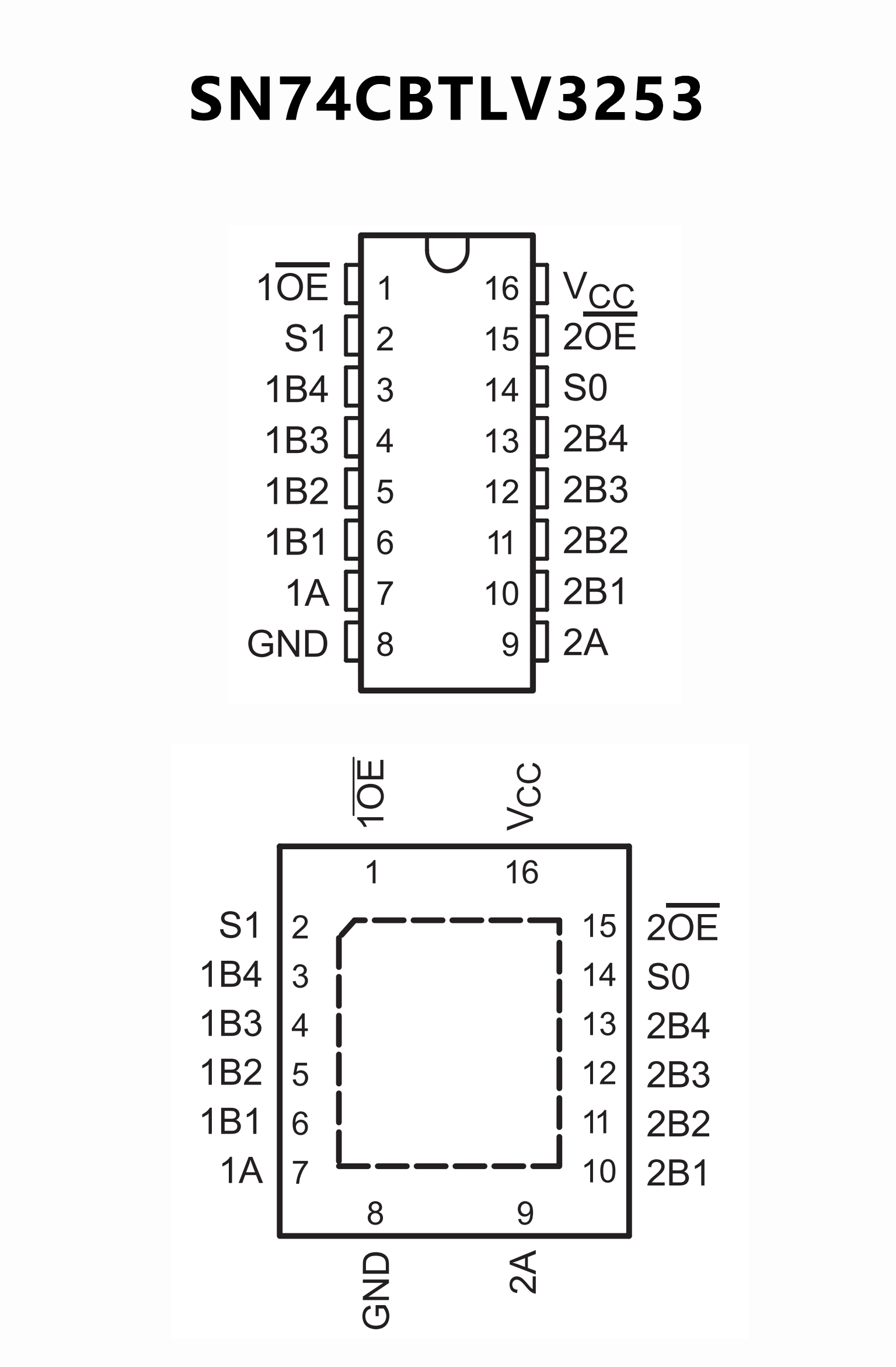

PIN CONFIGUTION
