Dual FET Bus Switch 2.5V or 3.3V Low-Voltage High-Bandwidth Bus Switch, PI3C3305 P2P 74CB3Q3305.
PI3C3305
PI3C3305.pdf
PI3C3305.pdfFEATURES
? Near-Zero propagation delay
?5Q switches connect inputs to outputs
? High Bandwidth (>400 MHz)
? Rail-to-Rail,3.3V or 2.5V Switching
? 5V I/O Tolerant
? 2.5V Supply Voltage Operation
?Permits Hot Insertion
? Packaging:
-8-pin 173-mil wide plastic TSSOP
-8-pin 118-mil wide plastic MSOP

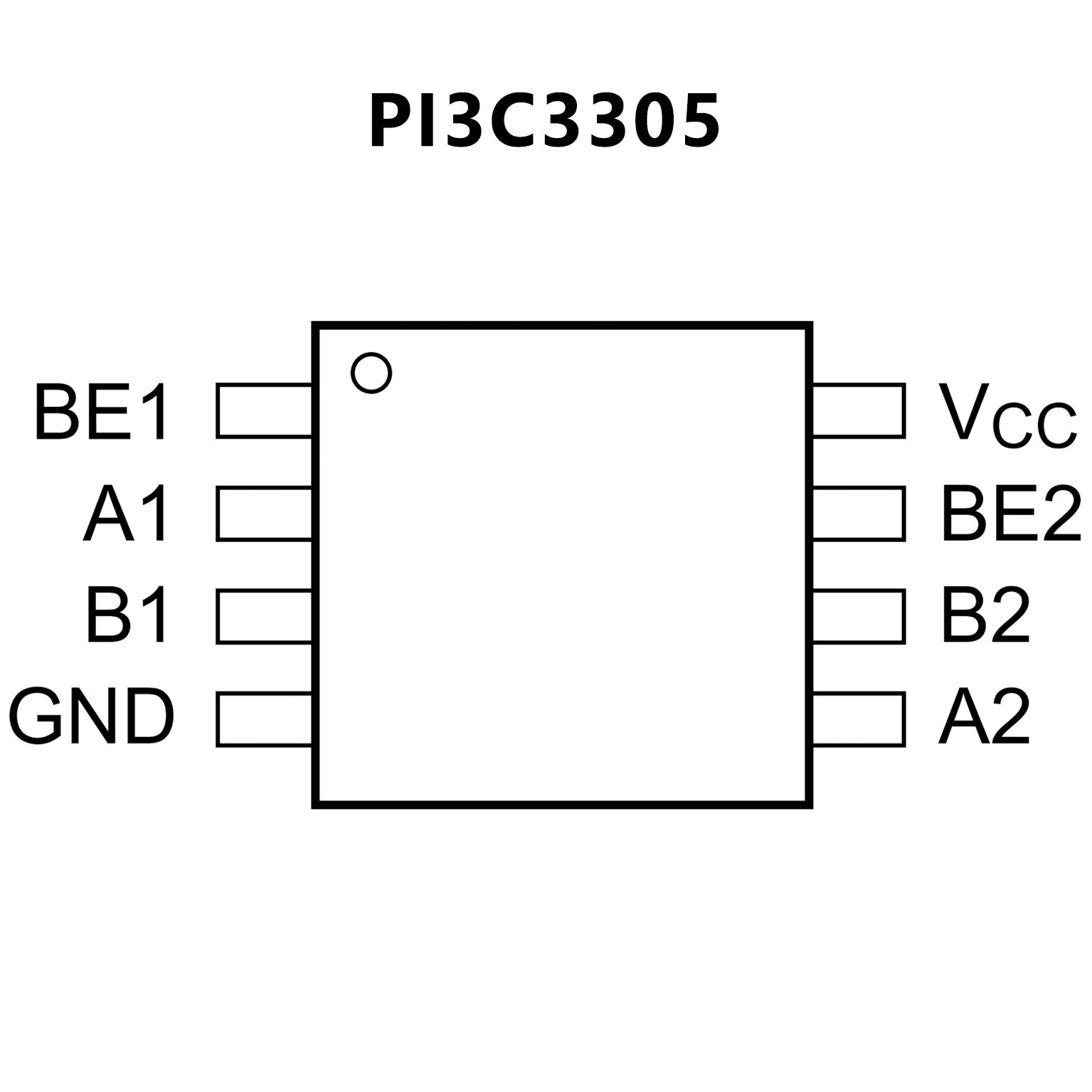

PIN CONFIGUTION
優勢替代
FEATURES
? High-bandwidth data path (up to 500 MHz)1
? 5-V tolerant I/Os with device powered up or powered down
? Low and flat ON-state resistance (ron) characteristics
over operating range (ron = 3 ? typical)
? Supports input voltage beyond supply on data I/O ports
– 0 to 5 V switching with 3.3 V VCC
– 0 to 3.3 V switching with 2.5 V VCC
? Bidirectional data flow with near-zero propagation delay
? Low input or output capacitance minimizes loading
and signal distortion (Cio(OFF) = 3.5 pF typical)
? Fast switching frequency (fOE = 20 MHz maximum)
? Data and control inputs provide undershoot clamp diodes
? Low power consumption (ICC = 0.25 mA typical)
? VCC operating range from 2.3 V to 3.6 V
? Data I/Os support 0 to 5 V signaling levels (0.8 V,
1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V)
? Control inputs can be driven by TTL or 5 V/3.3 V
CMOS outputs
? Ioff supports partial-power-down mode operation
? Latch-up performance exceeds 100 mA per JESD78, Class II

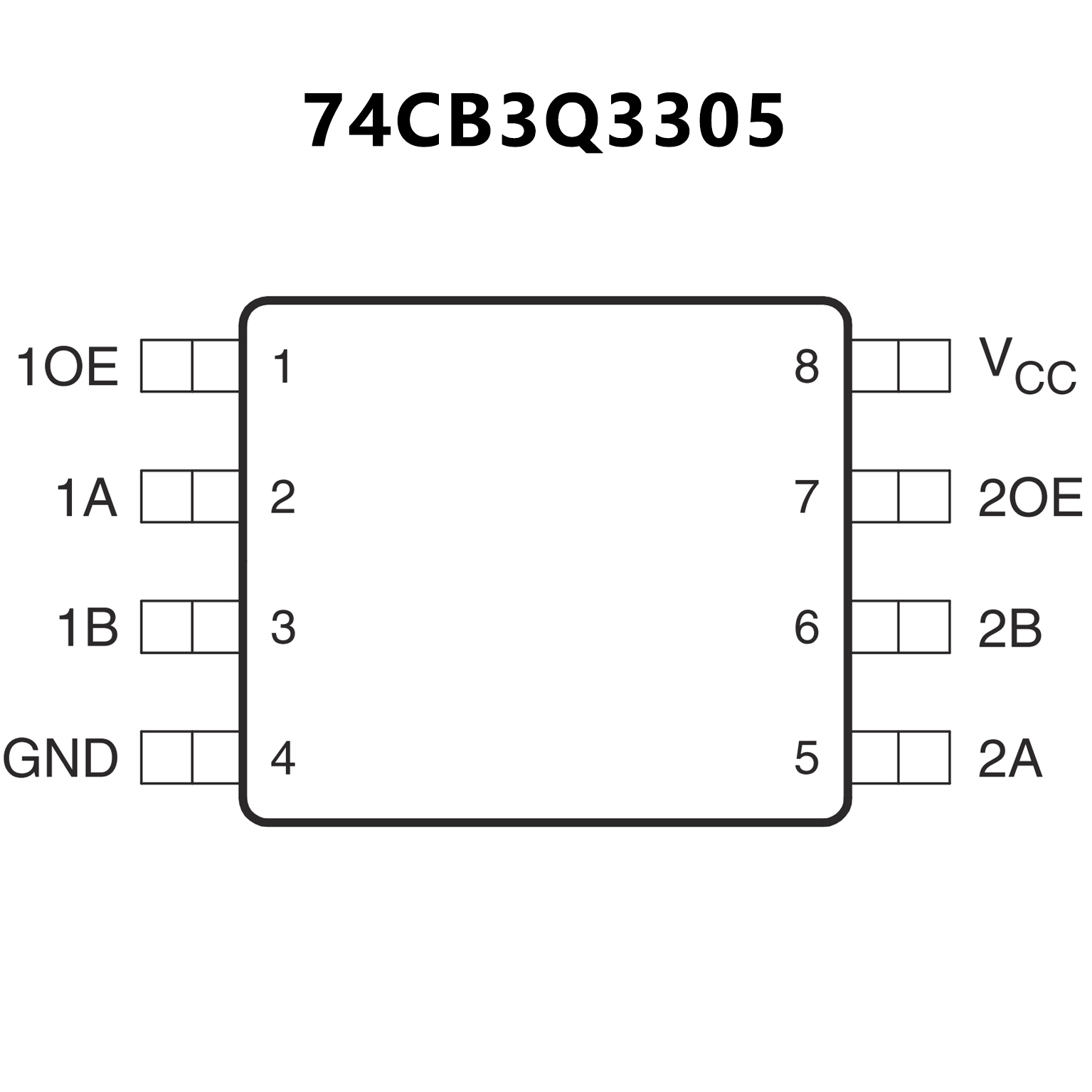

PIN CONFIGUTION
