Dual FET Bus Switch 2.5-V/3.3-V Low-Voltage High-Bandwidth Bus Switch, PI3C3306 P2P SN74CB3Q3306A.
FEATURES

Near-Zero propagation delay

?5Q switches connect inputs to outputs

High Bandwidth (>400 MHz)

Rail-to-Rail,3.3V or 2.5V Switching

5V I/O Tolerant

2.5V Supply Voltage Operation

?Permits Hot Insertion

Packaging:

  -8-pin 173-mil wide plastic TSSOP

  -8-pin 118-mil wide plastic MSOP

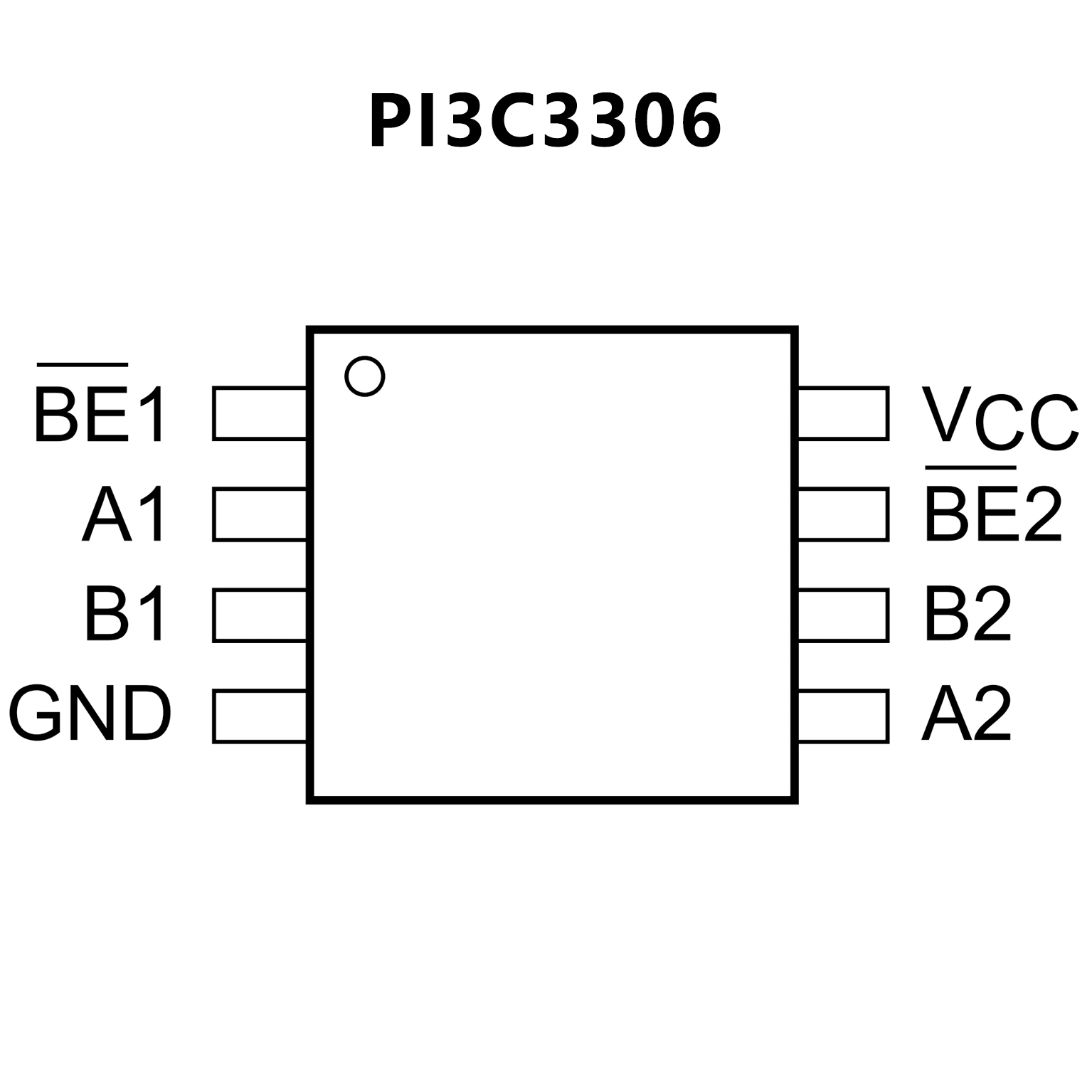

PIN CONFIGUTION
優勢替代
SN74CB3Q3306A SN74CB3Q3306A.pdf

No.14313

FEATURES

High-Bandwidth Data Path (up to 500 MHz(1)

5-V-Tolerant I/Os With Device Powered Up or

  Powered Down

Low and Flat ON-State Resistance (ron)

Characteristics Over Operating Range (ron = 4 Q Typ)

Rail-to-Rail Switching on Data I/O Ports

  - 0- to 5-V Switching With 3.3-V Vcc

  - 0- to 3.3-V Switching With 2.5-V Vcc

Bidirectional Data Flow With Near-Zero Propagation Delay

Low Input/Output Capacitance Minimizes

  Loading and Signal Distortion (Cio(OFF) = 3.5 pF Typ)

Fast Switching Frequency (f oE = 20 MHz Max)

Data and Control Inputs Provide Undershoot

  Clamp Diodes

Low Power Consumption (Icc = 0.25 mA Typ)

Vcc Operating Range From 2.3 V to 3.6 V

?Data I/Os Support 0- to 5-V Signaling Levels

  (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V)

Control Inputs Can Be Driven by TTL or 5V/3.3V

  CMOS Outputs

Ioff Supports Partial-Power-Down Mode Operation

Latch-Up Performance Exceeds 100 mA Per JESD 78,

  Class Il

ESD Performance Tested Per JESD 22

  2000-V Human-Body Model (A114-B, Class I)

  1000-V Charged-Device Model (C101)

Supports Both Digital and Analog

Applications: USB Interface, Differential Signal

  Interface, Bus Isolation, Low-Distortion Signal Gating

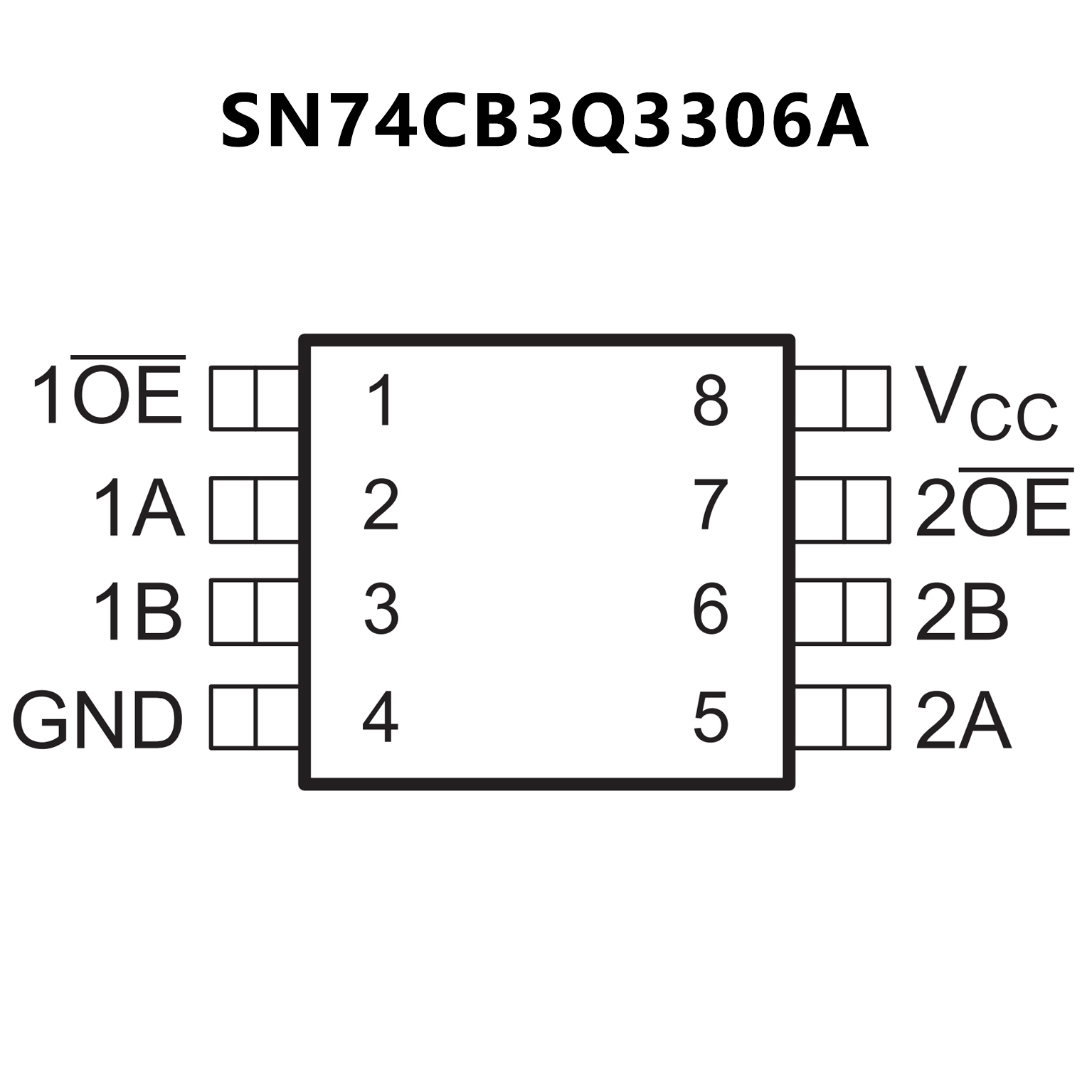

PIN CONFIGUTION
