High-Speed I3C 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable, PI3CSW12 Replace TMUX136.
PI3CSW12
PI3CSW12.pdf
PI3CSW12.pdfFEATURES
? VDD Operation at 2.5 V and 3.3 V
? VI/O Accepts Signals up to 5.5 V
? 1.8-V Compatible Control-Pin Inputs
? Low-Power Mode When OE Is Disabled (2μA)
? rON = 6Ω Maximum
? ΔrON = 0.2Ω Typical
? Cio(on) = 4pF Typical
? Support Over Voltage Protection
? Low Power Consumption (50μA Maximum)
? ESD Performance
? IO Pins
? 12KV HBM
? 1KV CDM
? +/-8KV contact Discharge (IEC61000-4-2)
? VDD, GND, S, OE Pins
? 4KV HBM
? 1KV CDM
? High Bandwidth (1.6GHz Typical)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen- and Antimony-Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green): 10-contact, UQFN (ZUA10)

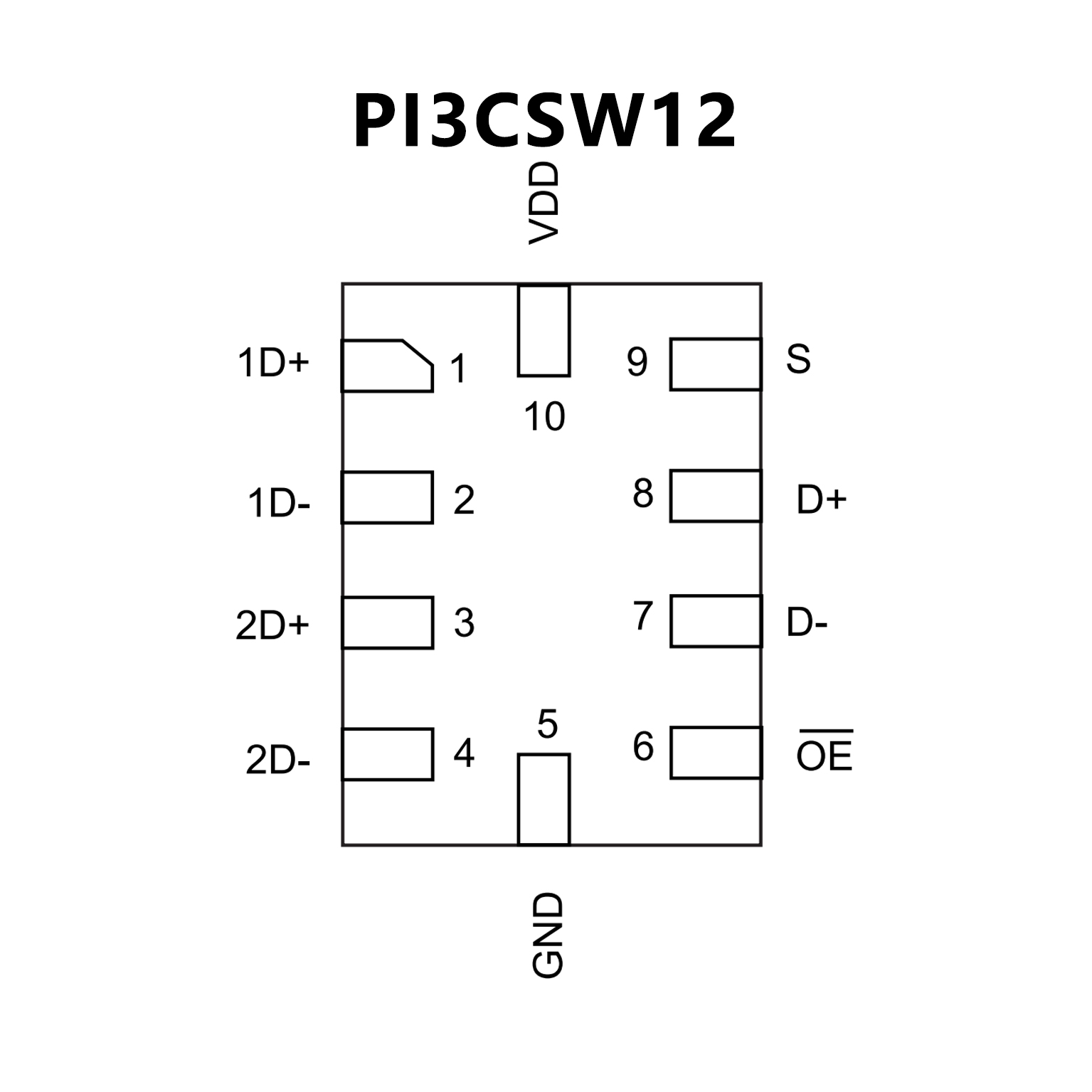

PIN CONFIGUTION
優勢替代
FEATURES
? VCC range 2.3 V to 4.8 V
? High performance switch characteristics:
– Bandwidth (–3 dB): 6.1 GHz
– RON (typical): 5.7 Ω
– CON (typical): 1.6 pF
? Current consumption: 30 μA (typical)
? Special features:
– IOFF protection prevents current leakage in
Powered-Down state
– 1.8-V compatible control inputs (SEL, EN)
? Flow-through pinout simplifies PCB layout
? Compatible with high-speed I3C signals
? ESD performance:
– 5-kV Human Body Model (A114B, Class II)
– 1-kV Charged-Device Model (C101)
? Compact 10-pin UQFN package
(1.5-mm × 2-mm, 0.5-mm pitch)

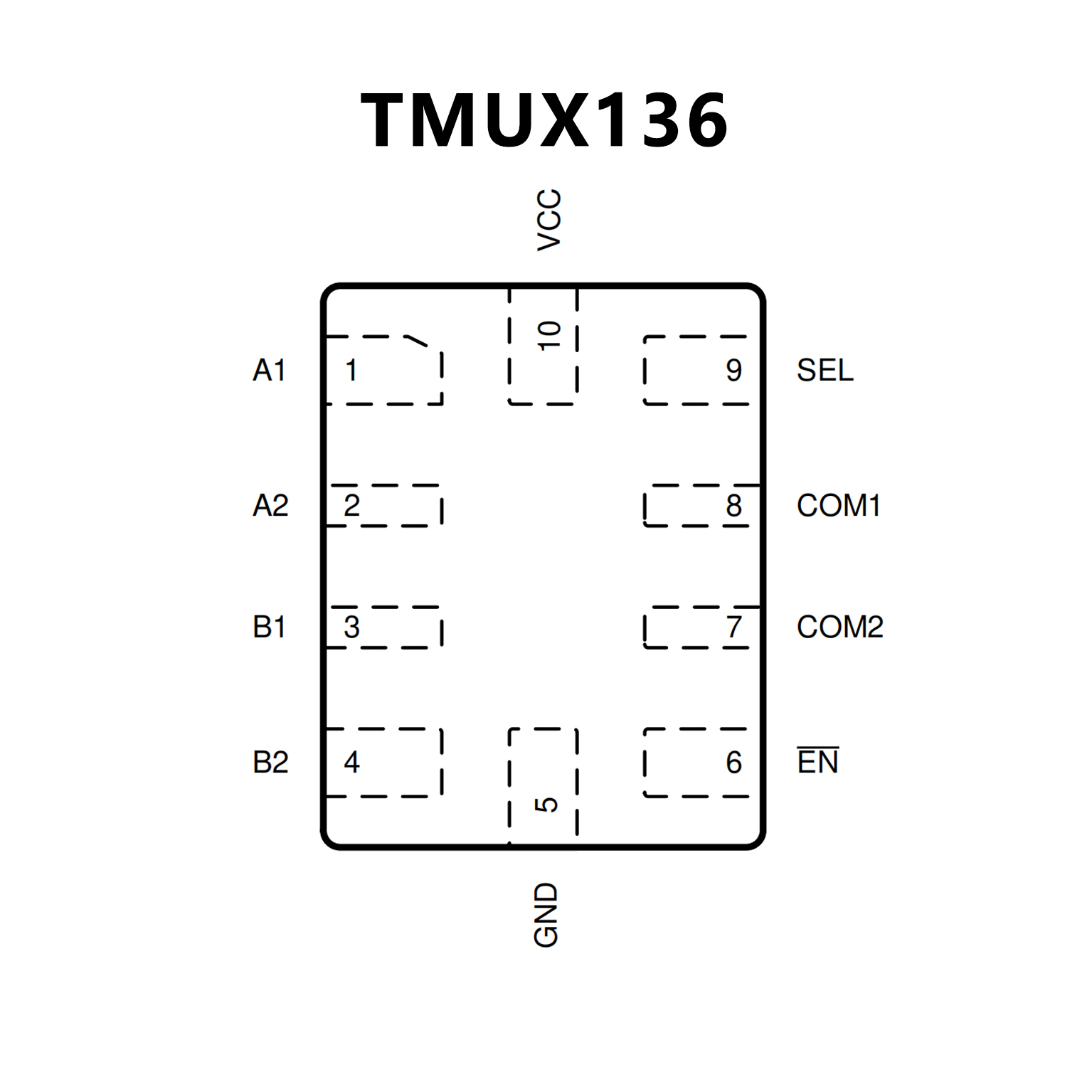

PIN CONFIGUTION
