4-bit LVTTL to GTL transceiver, PI4GTL2014 Replace SN74GTL2014.
PI4GTL2014
PI4GTL2014.pdf
PI4GTL2014.pdfFEATURES
? Operates as a 4-bit GTL ? /GTL/GTL+ sampling receiver
or as a LVTTL to GTL ? /GTL/GTL+ driver
? 2.3 V to 3.6 V operation with 5 V tolerant LVTTL input
? GTL input and output 3.6 V tolerant
? Vref adjustable from 0.5 V to VCC/2
? Partial power-down permitted
? ESD protection exceeds 2000 V HBM per JESD22-A114
and 1000 V CDM per JESD22-CC101
? Latch-up protection exceeds 200 mA per JESD78
? Package offered: TSSOP14

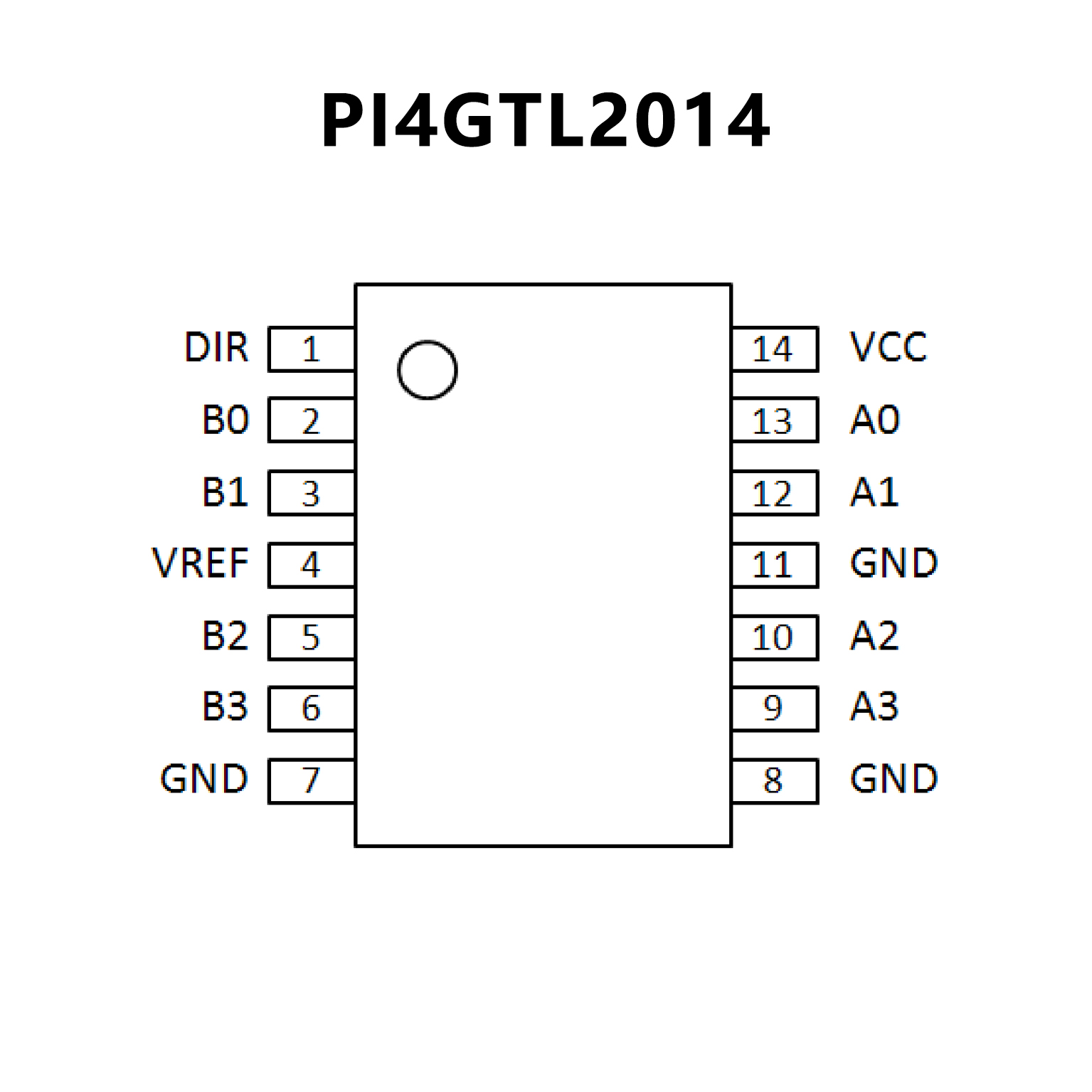

PIN CONFIGUTION
優勢替代
FEATURES
? Operates as a GTL–/GTL/GTL+ to LVTTL or
LVTTL to GTL–/GTL/GTL+ Translator
? The LVTTL Inputs are Tolerant up to 5.5 V
Allowing Direct Access to TTL or 5 V CMOS
? The GTL Input/Output Operate up to 3.6 V,
Allowing the Device to be Used in High Voltage
Open-Drain Applications
? VREF Goes Down to 0.5 V for Low Voltage CPU
Usage
? Partial Power-Down Permitted
? Latch-up Protection Exceed 500 mA per JESD78
? Package Option: TSSOP14
? –40°C to 85°C Operating Temperature Range
? ESD Protection on All Terminals
– 2000 V HBM, JESD22-A114
– 1000 V CDM, IEC61000-4-2

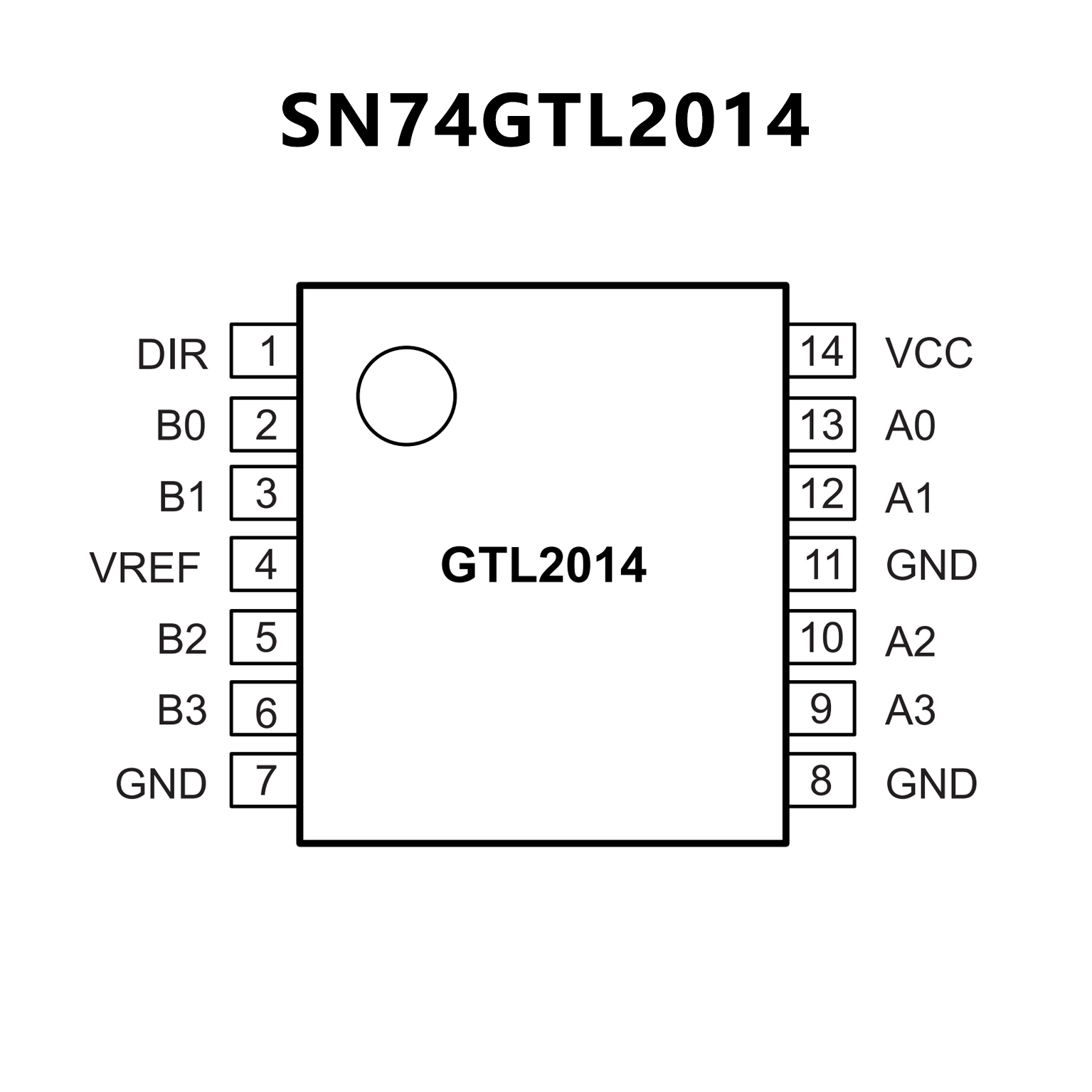

PIN CONFIGUTION
