140Mb/s Bi-directional Level Translator for Push-Pull Applications, PI4ULS3V304 Replace FXLA0104.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
? 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
? VCCA may be greater than, equal to, or less than VCCB
? High-Speed with 140 Mb/s Guaranteed Date Rate
? 100 pF Capacitive Drive Capability
? Low Bit-to-Bit Skew
? Overvoltage Tolerant Enable and I/O Pins
? Non-preferential Power-Up Sequencing
? Power-Off Protection
? Package: UQFN1.7x2.0-12L

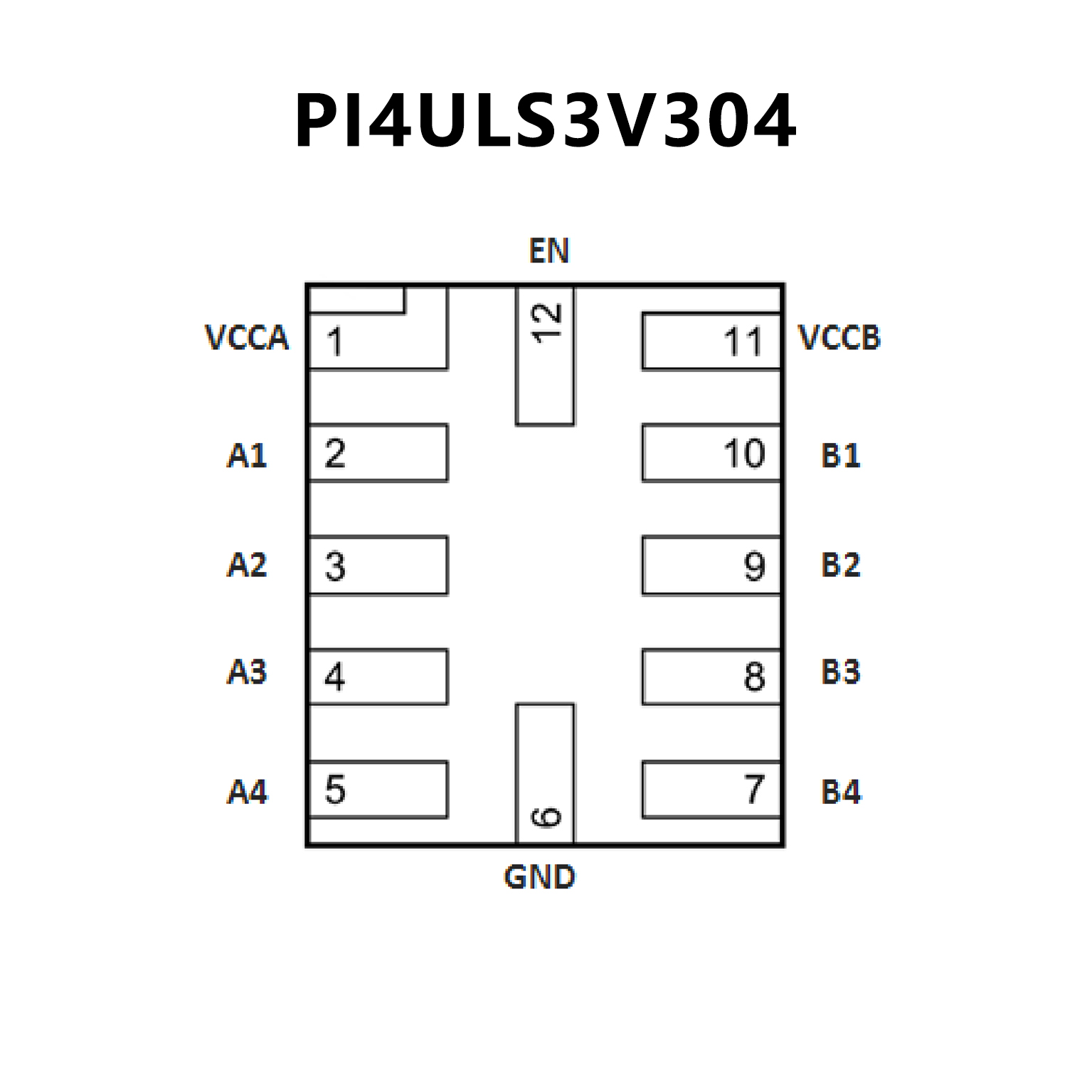

PIN CONFIGUTION
優勢替代
FEATURES
? Bi?Directional Interface between Two Levels: from
1.1V to 3.6V
? Fully Configurable: Inputs and Outputs Track VCC
? Non?Preferential Power?Up; Either VCC May Be
Powered Up First
? Outputs Switch to 3?State if Either VCC is at GND
? Power?Off Protection
? Bus?Hold on Data Inputs Eliminates the Need for Pull?Up
Resistors; Do Not Use Pull?Up Resistors on A or B Ports
? Control Input (OE) Referenced to VCCA Voltage
? Available in the 12?Lead, 1.7 mm x 2.0 mm UMLP Package
? Direction Control Not Necessary
? 100 Mbps Throughput when Translating Between 1.8 V
and 2.5 V
? ESD Protection Exceeds:
6 kV HBM (per JESD22?A114 & Mil Std 883e 3015.7)
2 kV CDM (per ESD STM 5.3)

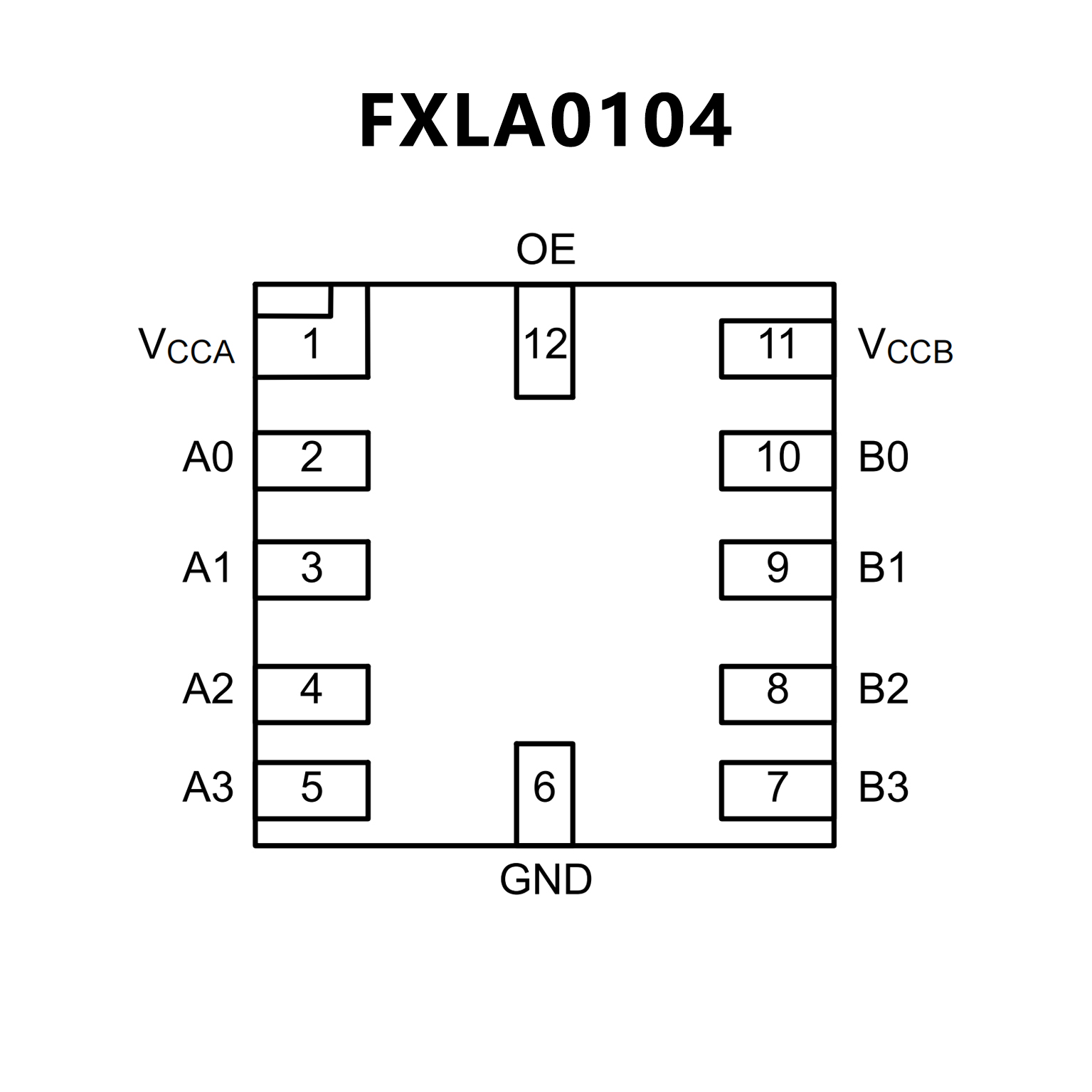

PIN CONFIGUTION
