4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLSX5014.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
? 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
? VCCA may be greater than, equal to, or less than VCCB
? High-Speed with 140 Mb/s Guaranteed Date Rate
? 100 pF Capacitive Drive Capability
? Low Bit-to-Bit Skew
? Overvoltage Tolerant Enable and I/O Pins
? Non-preferential Power-Up Sequencing
? Power-Off Protection
? Package: UQFN1.7x2.0-12L

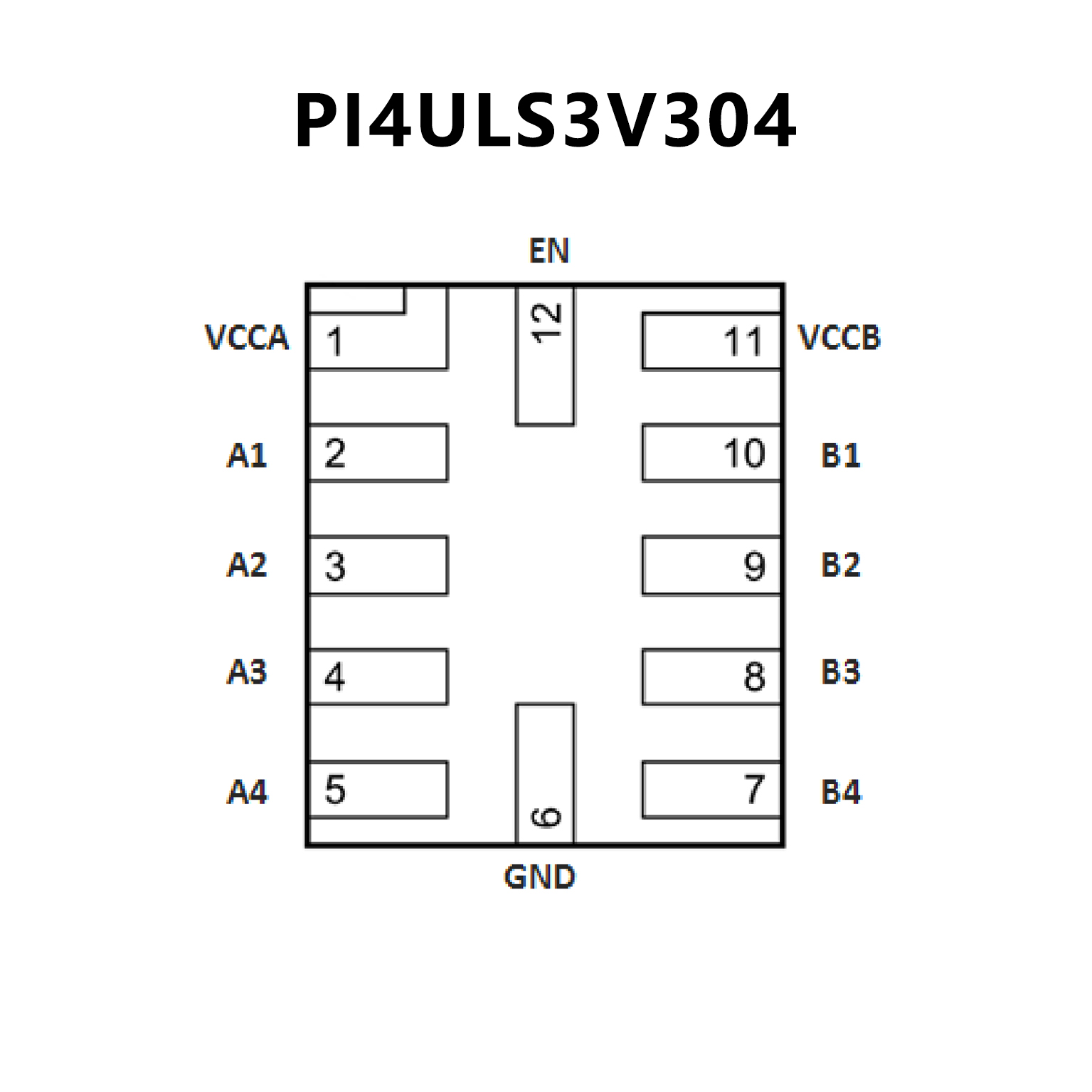

PIN CONFIGUTION
優勢替代
FEATURES
? Wide VCC, VL Operating Range: 0.9 V to 4.5 V
? VL and VCC are independent
? VL may be greater than, equal to, or less than VCC
? High 100 pF Capacitive Drive Capability
? High?Speed with 140 Mb/s Guaranteed Date Rate
for VCC, VL > 1.8 V
? Low Bit?to?Bit Skew
? Overvoltage Tolerant Enable and I/O Pins
? Non?preferential Powerup Sequencing
? Power?Off Protection
? Small packaging: 1.7 mm x 2.0 mm UQFN12, SOIC14,
TSSOP14
? These Devices are Pb?Free, Halogen Free/BFR Free and
are RoHS Compliant

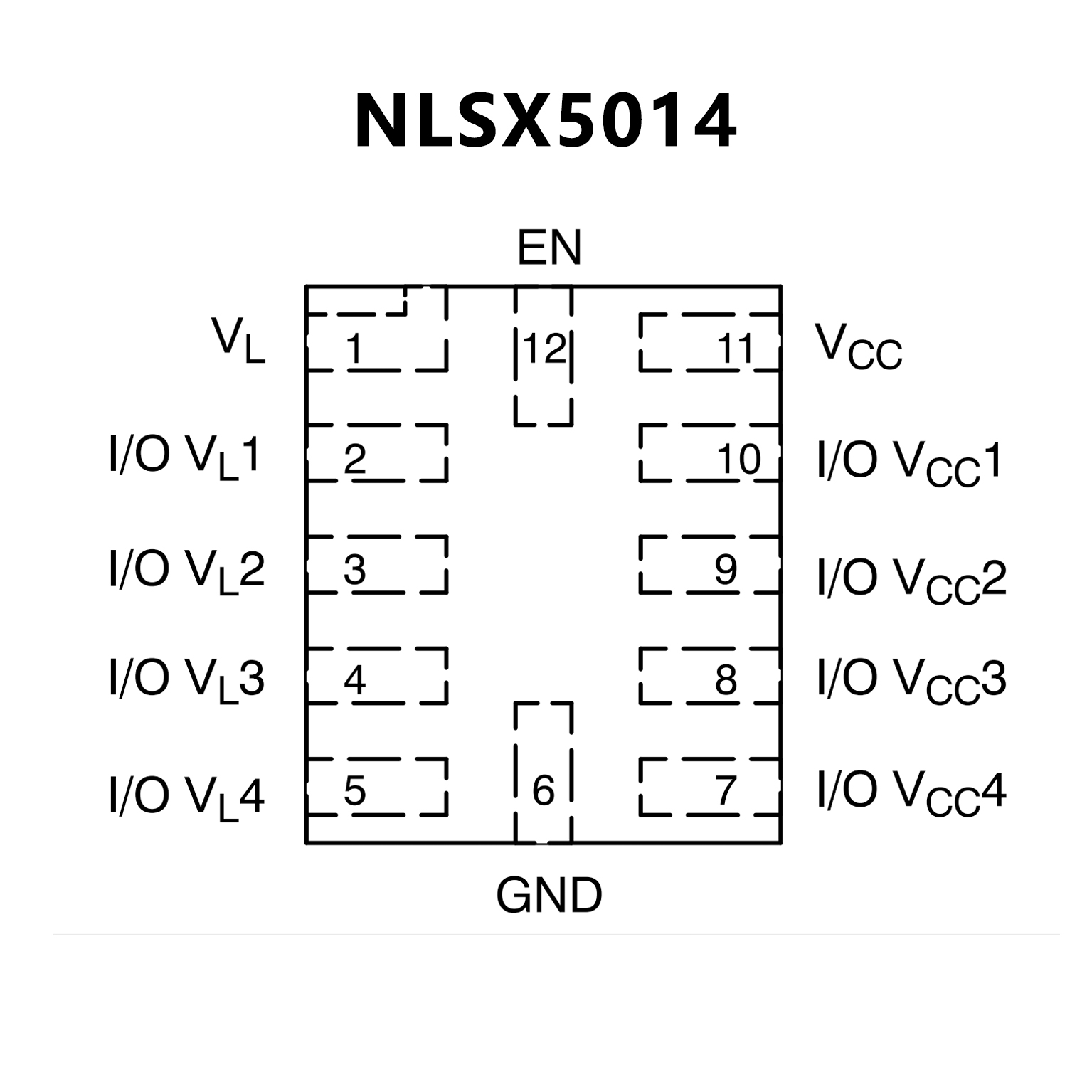

PIN CONFIGUTION
