Dual Bidirectional I2C-Bus and SMBus Voltage-Level Translator, PI6ULS5V9306QV8-7 Replace NLA9306.
PI6ULS5V9306QV8-7 PI6ULS5V9306QV8-7.pdf
FEATURES

2-bit Bidirectional Translator for SDA and SCL Lines in

  Mixed-Mode I2C-Bus Applications

Standard-Mode, Fast-Mode, and Fast-Mode Plus I2C-

  Bus and SMBus Compatible

Less than l.5ns Maximum Propagation Delay to

  Accommodate Standard Mode and Fast Mode I2C-Bus

  Devices and Multiple Masters

Allows Voltage Level Translation Between:

  ◆ 0.9V VREF1 and 1.8V,2.5V,3.3V,or 5V VREF2

  ◆ 1.2V VREF1 and 1.8V,2.5V,3.3V,or 5V VREF2

  ◆ 1.5V VREF1 and 2.5V,3.3V,or 5V VREF2

  ◆ 1.8V VREF1 and 3.3V or 5V VREF2

  ◆ 2.5V VREF1 and 5V VREF2

  ◆ 3.3V VREF1 and 5V VREF2

Provides Bidirectional Voltage Translation with no

  Direction Pin

Low 3.5O ON-State Connection Between Input and

  Output Ports Provides Less Signal Distortion

Open-Drain I2C-Bus I/O Ports (SCLl, SDAl, SCL2,and

  SDA2)

5V Tolerant I2C-Bus I/O Ports to Support Mixed-Mode

  Signal Operation

High-Impedance SCL1, SDAl, SCL2, and SDA2 Pins for

  EN =LOW

Lock-up Free Operation for Isolation when EN = LOW

Flow through Pinout for Ease of Printed-Circuit Board

  Trace Routing

ESD Protection Exceeds 4KV HBM per JESD22-Al14

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green" Device (Note 3)

The PI6ULS5V9306Q is suitable for automotive applications

  requiring specific change control; this part is AEC-Q100

  qualified, PPAP capable, and manufactured in IATF 16949

  certified facilities.

Packaging (Pb-free & Green): 8-Pin,VSSOP (V)

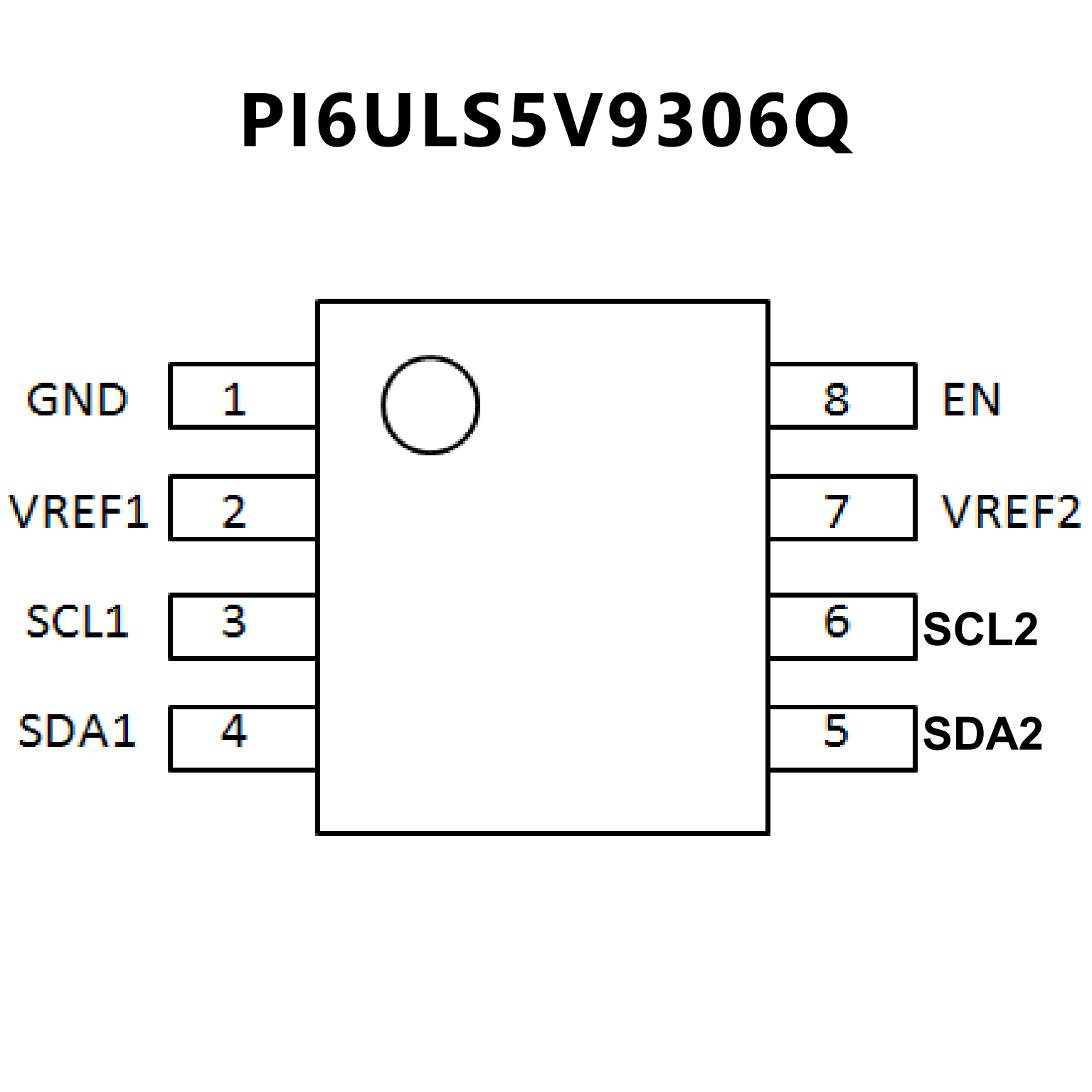

PIN CONFIGUTION
優勢替代
NLA9306 NLA9306.pdf

No.14354

FEATURES

? 2?bit Bidirectional Translator for SDA and SCL Lines in

  Mixed?Mode I2C?Bus Applications
? Standard?Mode, Fast?Mode, and Fast?Mode Plus I2C
  ?Bus and SMBus Compatible
? Less Than 1.5 ns Maximum Propagation Delay to
  Accommodate Standard?Mode and Fast?Mode I2C?Bus
  Devices and Multiple Masters
? Allows Voltage Level Translation Between:
  ◆ 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2)
  ◆ 1.2 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2)
  ◆ 1.8 V Vref(1) and 3.3 V or 5 V Vbias(ref)(2)
  ◆ 2.5 V Vref(1) and 5 V Vbias(ref)(2)
  ◆ 3.3 V Vref(1) and 5 V Vbias(ref)(2)
? Provides Bidirectional Voltage Translation With No
  Direction Pin
? Low 3.5 ON?State Connection Between Input and
  Output Ports Provides Less Signal Distortion

? Open?Drain I2C?Bus I/O Ports (SCL1, SDA1, SCL2

  and SDA2)

? 5 V Tolerant I2C?Bus I/O Ports to Support Mixed?Mode
  Signal Operation
? High?Impedance SCL1, SDA1, SCL2 and SDA2 Pins for
  EN = LOW
? Lock?Up Free Operation
? Flow Through Pinout for Ease of Printed?Circuit Board
  Trace Routing
? Packages Offered:
 ◆ US8, UQFN8, UDFN8, TSSOP?8
? ESD Performance: 2000 V Human Body Model
? ?Q Suffix for Automotive and Other Applications Requiring
  Unique Site and Control Change Requirements; AEC?Q100
  Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR Free and

  are RoHS Compliant

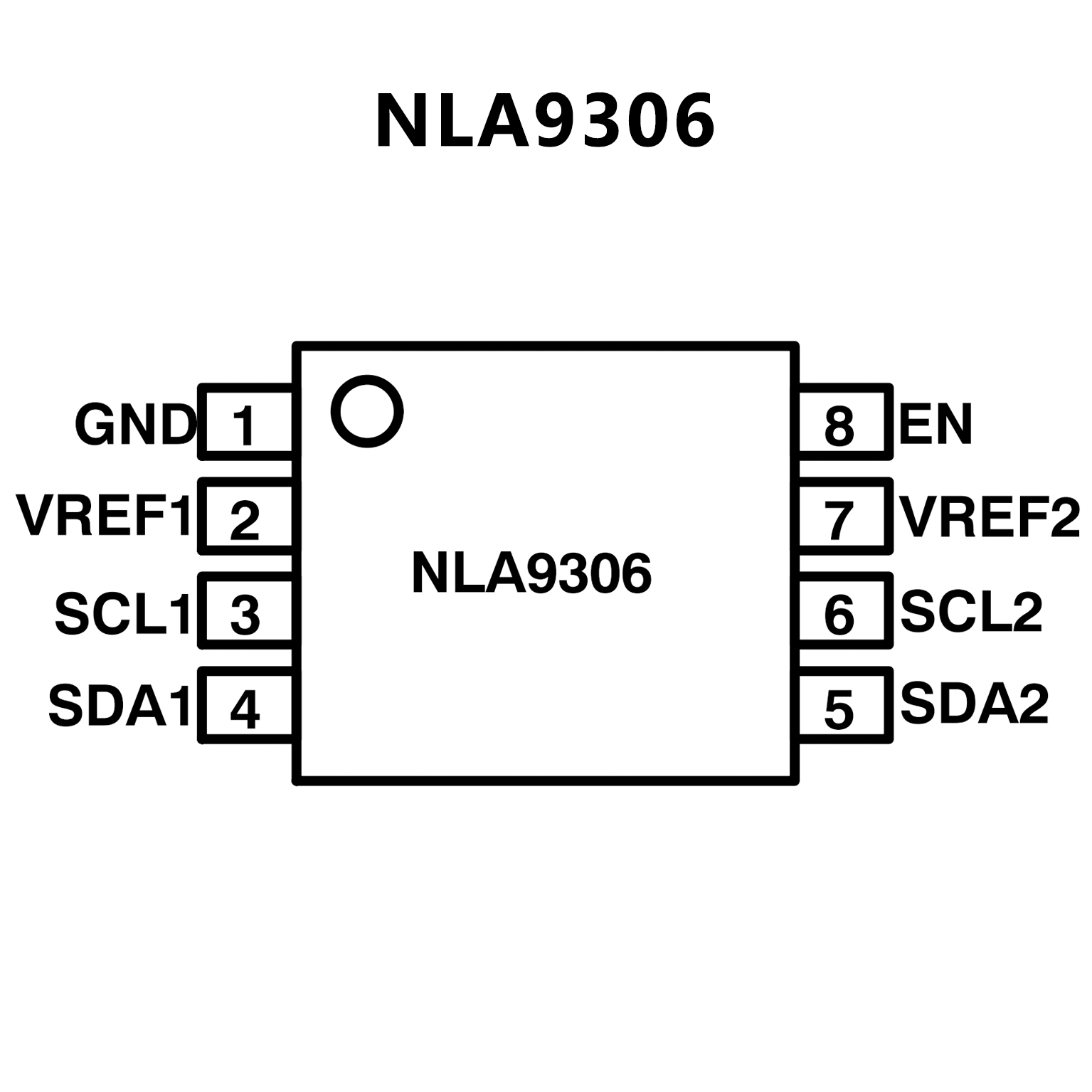

PIN CONFIGUTION
