Level Translating I2C-Bus/SMBus Repeater with Tiny Package, PI6ULS5V9509 Replace PCA9306.
PI6ULS5V9509
PI6ULS5V9509.pdf
PI6ULS5V9509.pdfFEATURES
? Bidirectional Buffer Isolates Capacitance and Allows
400pF on Port B of the Device
? Port A Operating Supply Voltage Range of 1.1V to
VCC(B) - 1.0V
? Port B Operating Supply Voltage Range of 2.5V to 5.5V
? Voltage Level Translation from 1.1V to VCC(B)- 1.0V and
from 2.5V to 5.5V
? Requires no External Pullup Resistors on Lower Voltage
Port A
? Open-Drain Port B Inputs/Outputs
? Lockup-Free Operation
? Supports Arbitration and Clock Stretching Across the
Repeater
? Accommodates Standard Mode and Fast Mode I2C-Bus
Devices and Multiple Masters
? Powered-off High-Impedance I2C-bus Pins
? 5V Tolerant B SCL, SDA and Enable Pins
? 0Hz to 400kHz Clock Frequency
? ESD Protection Exceeds 8KV HBM per JESD22-A114
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Package: MSOP-8, SOIC-8 and UQFN1.6x1.6-8L

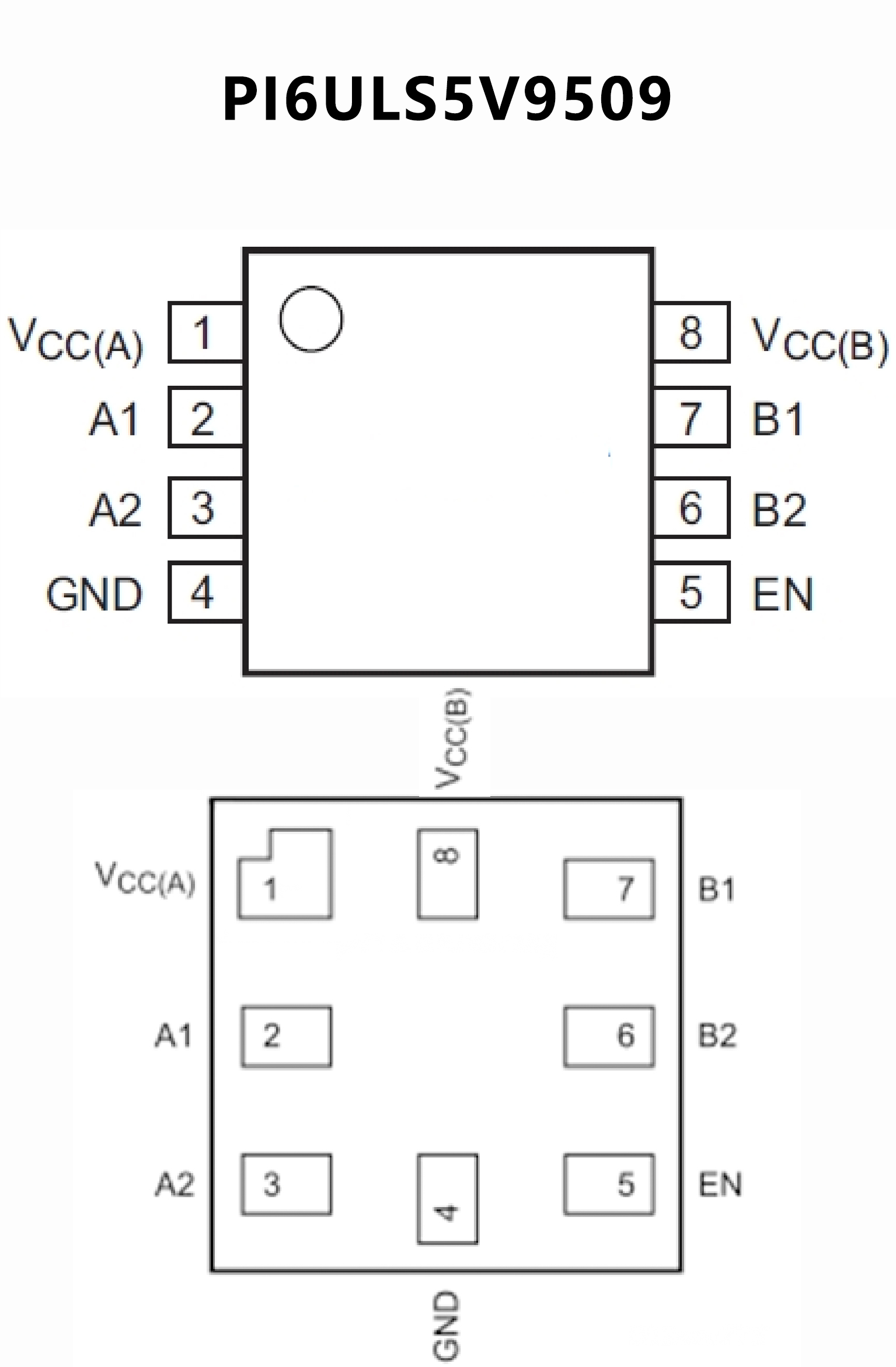

PIN CONFIGUTION
優勢替代
FEATURES
? 2-Bit bidirectional translator for SDA and SCL lines
in mixed-mode I2C Applications
? I2C and SMBus compatible
? Less than 1.5-ns maximum propagation delay to
accommodate standard-mode and fast-mode I2C
devices and multiple controllers
? Allows voltage-level translation between
– 1.2-V VREF1 and 1.8-V, 2.5-V, 3.3-V, or 5-V VREF2
– 1.8-V VREF1 and 2.5-V, 3.3-V, or 5-V VREF2
– 2.5-V VREF1 and 3.3-V or 5-V VREF2
– 3.3-V VREF1 and 5-V VREF2
? Provides bidirectional voltage translation with no
direction pin
? Low 3.5-Ω ON-state resistance between input and
output ports provides less signal distortion
? Open-drain I2C I/O ports (SCL1, SDA1, SCL2, and
SDA2)
? 5-V Tolerant I2C I/O ports to support mixed-mode
signal operation
? High-impedance SCL1, SDA1, SCL2, and SDA2
pins for EN = low
? Lockup-free operation for isolation when EN = low
? Flow-through pinout for ease of printed-circuit
board trace routing
? Latch-up performance exceeds 100 mA Per JESD
78, class II
? ESD protection exceeds JESD 22
– 2000-V Human-body model (A114-A)
– 1000-V Charged-device model (C101)

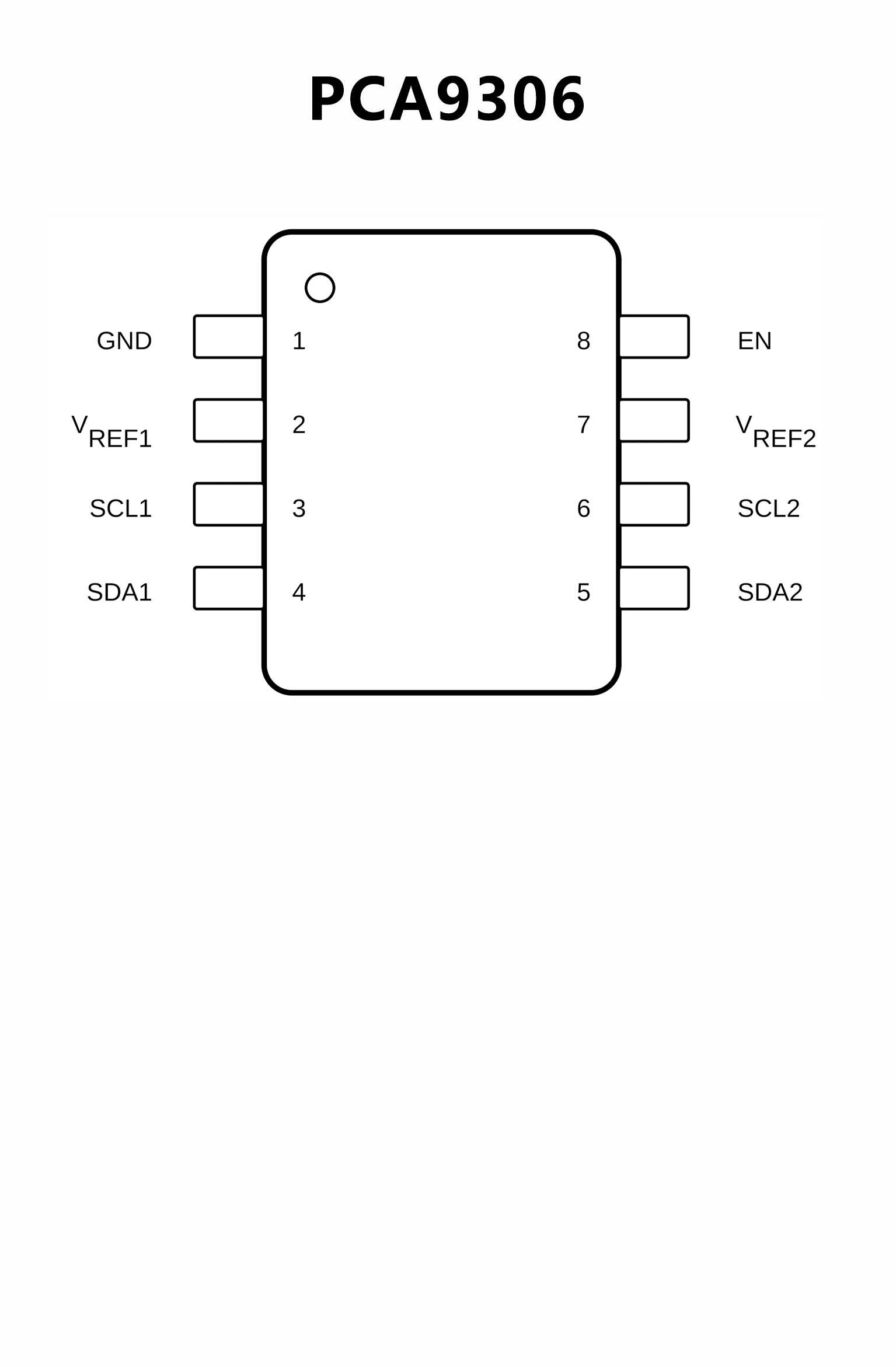

PIN CONFIGUTION
