Level Translating I2C Bus/SMBus Repeater, PI6ULS5V9517 Replace PCA9517DGK.
PI6ULS5V9517 PI6ULS5V9517.pdf
FEATURES

? 2 channel, bidirectional buffer

? I2C-bus and SMBus compatible
? Port A operating supply voltage range of 0.8 V to 5.5 V
? Port B operating supply voltage range of 2.2 V to 5.5 V
? Voltage level translation from 0.8 V to 5.5 V and from 2.2
  V to 5.5 V
? Active HIGH repeater enable input
? Open-drain input/outputs
? Lock-up free operation
? Supports arbitration and clock stretching across the
  repeater
? Accommodates Standard-mode and Fast-mode I2C-bus
  devices and multiple masters
? Powered-off high-impedance I2C-bus pins
? 5.5 V tolerant I2C-bus and enable pins
? 0 Hz to 400 kHz clock frequency (the maximum system
  operating frequency may be less than 400 kHz because of
  the delays added by the repeater)
? ESD protection exceeds 8KV HBM per JESD22-A114

? Package: MSOP-8L, SOIC-8L and DFN2x3-8L,

  UQFN1.6x1.6-8L

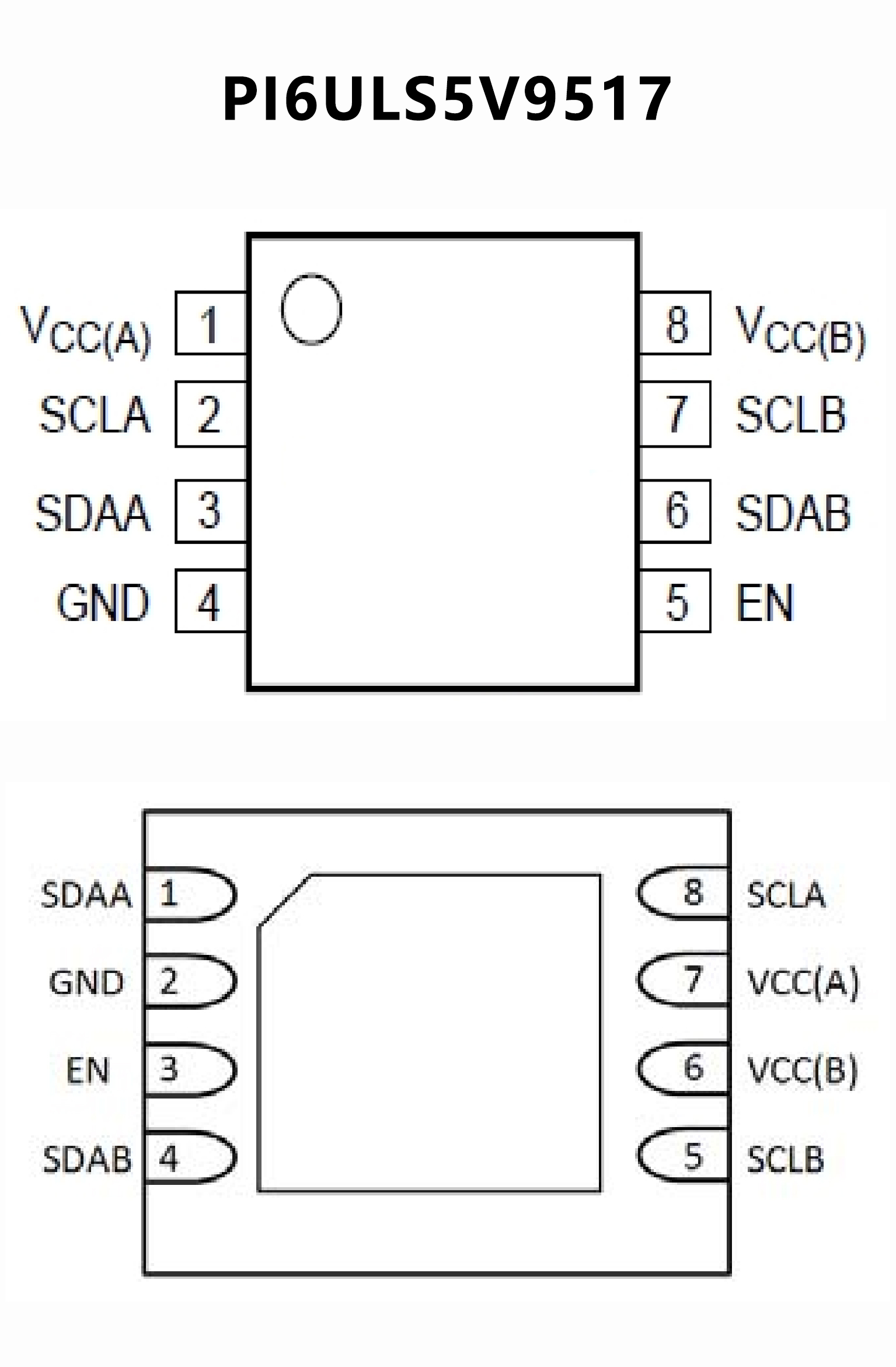

PIN CONFIGUTION
優勢替代
PCA9517DGK PCA9517DGK.pdf

No.14296

FEATURES

? Two-Channel Bidirectional Buffer

? I2C Bus and SMBus Compatible

? Operating Supply Voltage Range of 0.9 V to 5.5 V

  on A Side

? Operating Supply Voltage Range of 2.7 V to 5.5 V

  on B Side

? Voltage-Level Translation From 0.9 V to 5.5 V and

  2.7 V to 5.5 V

? Footprint and Function Replacement for PCA9515A

? Active-High Repeater-Enable Input Open-Drain I2C VO

? 5.5-V Tolerant I2C and Enable Input Support Mixed-Mode

  Signal Operation

? Lockup-Free Operation

? Accommodates Standard Mode and Fast Mode I2C Devices

  and Multiple Masters

? Powered-Off High-Impedance I2C Pins 400-kHz Fast I2C Bus

? Latch-Up Performance Exceeds 100mA Per JESD78, Class Il

? ESD Protection Exceeds JESD 22

  2000-V Human-Body Model (A114-A)

  200-V Machine Model (A115-A)

  1000-V Charged-Device Model (C101)

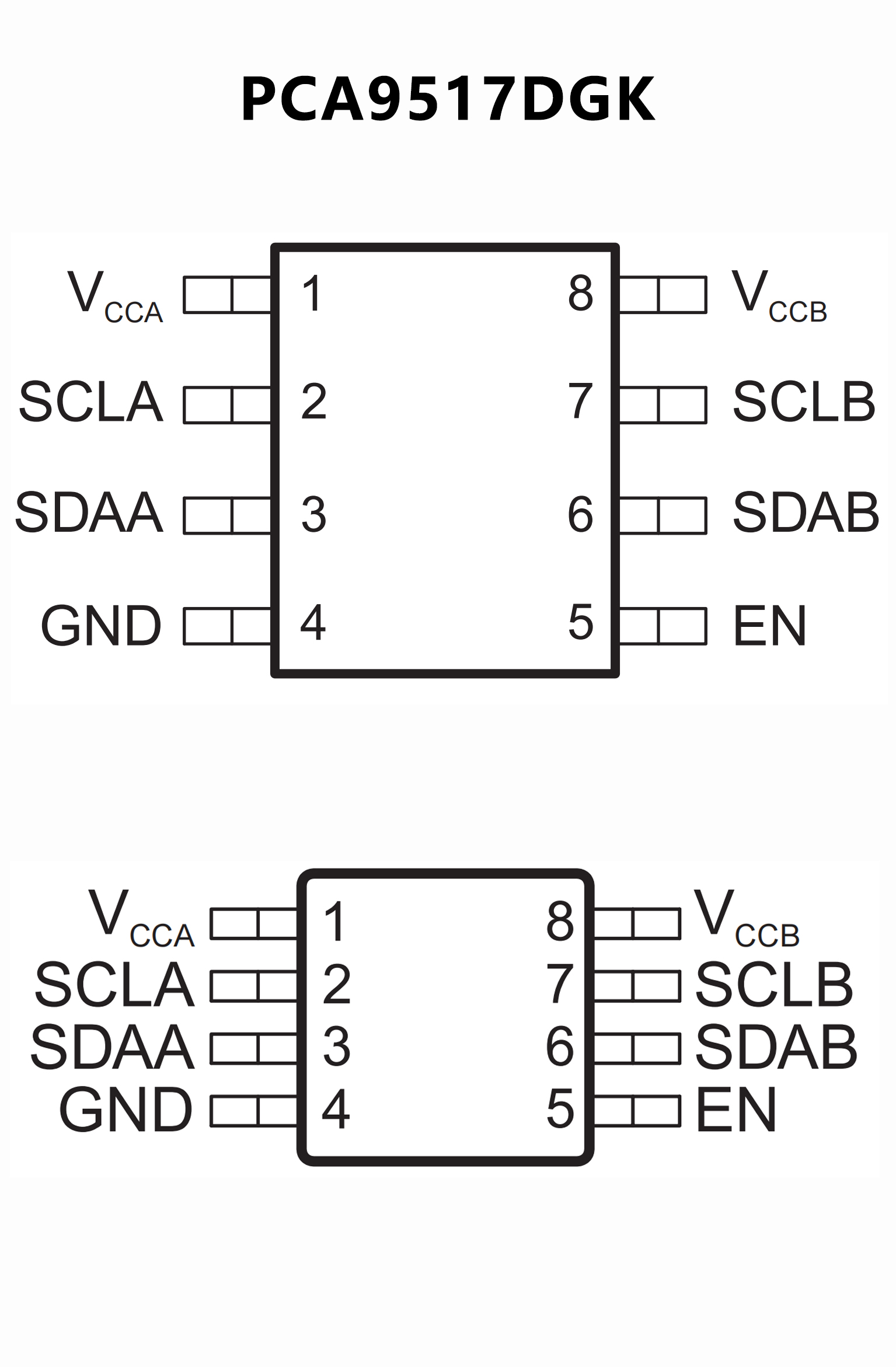

PIN CONFIGUTION
