Negative Voltage SPDT Switch, PS4157N Replace TMUX4157N.
PS4157N
PS4157N.pdf
PS4157N.pdfFEATURES
? Operating Voltage Range: VEE = ?12 V to ?4 V
? Switch Signal Voltage Range: VIS = VEE to GND
? Positive Control Signal Voltage: VIN = 0 to 3.3 V
? Low ON Resistance: RON ≤ 5 ? when VEE =?10 V
? Extended Industrial Temperature Range: -55°C to 125°C
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free and Green):
6-pin Small Compact SC70

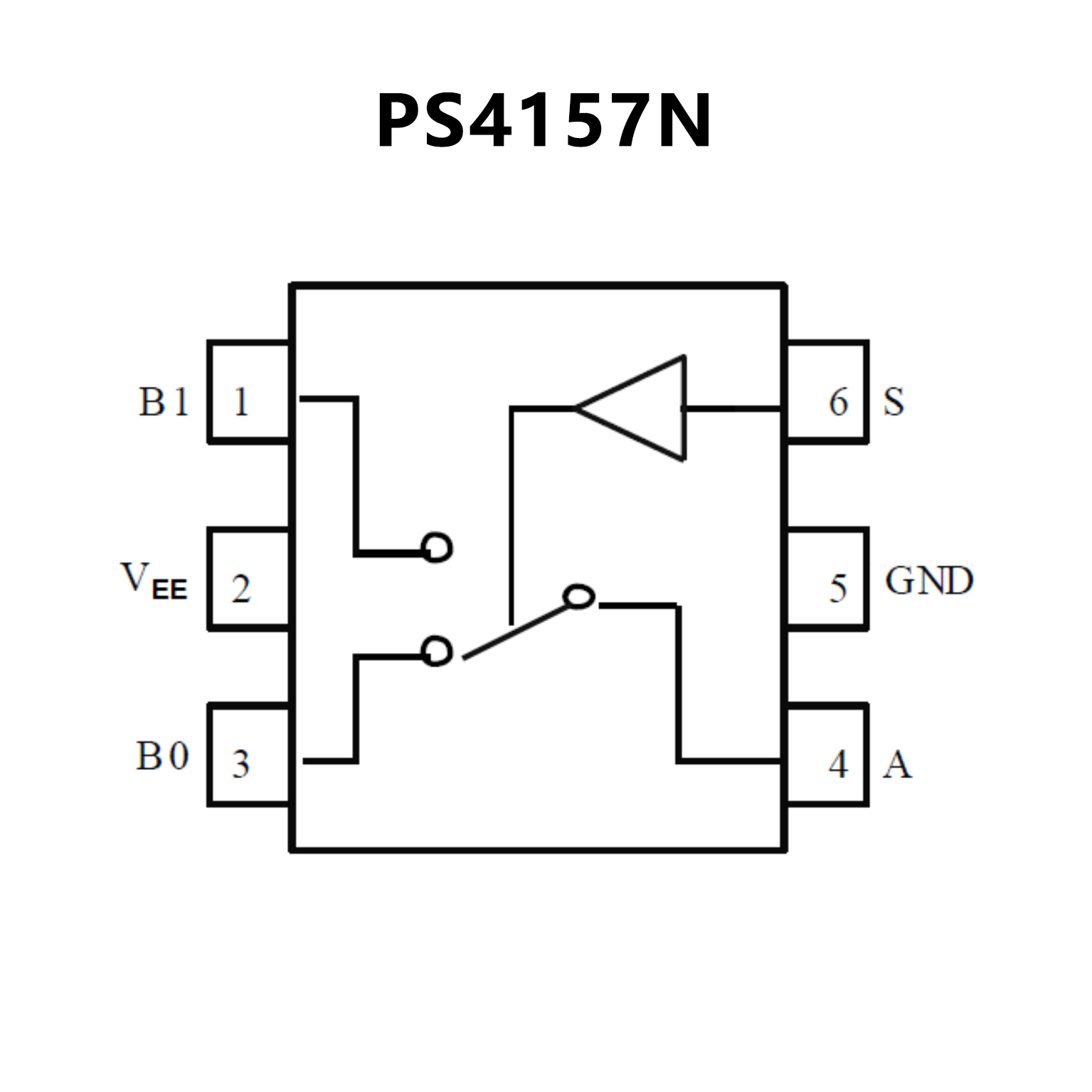

PIN CONFIGUTION
優勢替代
FEATURES
? Negative Voltage Support: -4 V to -12 V
? Rail-to-Rail Operation
? Bidirectional Signal Path
? 1.8 V Logic Compatible
? Fail-Safe Logic
? High Continuous Current Support: 150 mA
? Low On-Resistance: 1.8 Ω
? -55°C to +125°C Operating Temperature
? Break-Before-Make Switching
? ESD Protection HBM: 2000 V

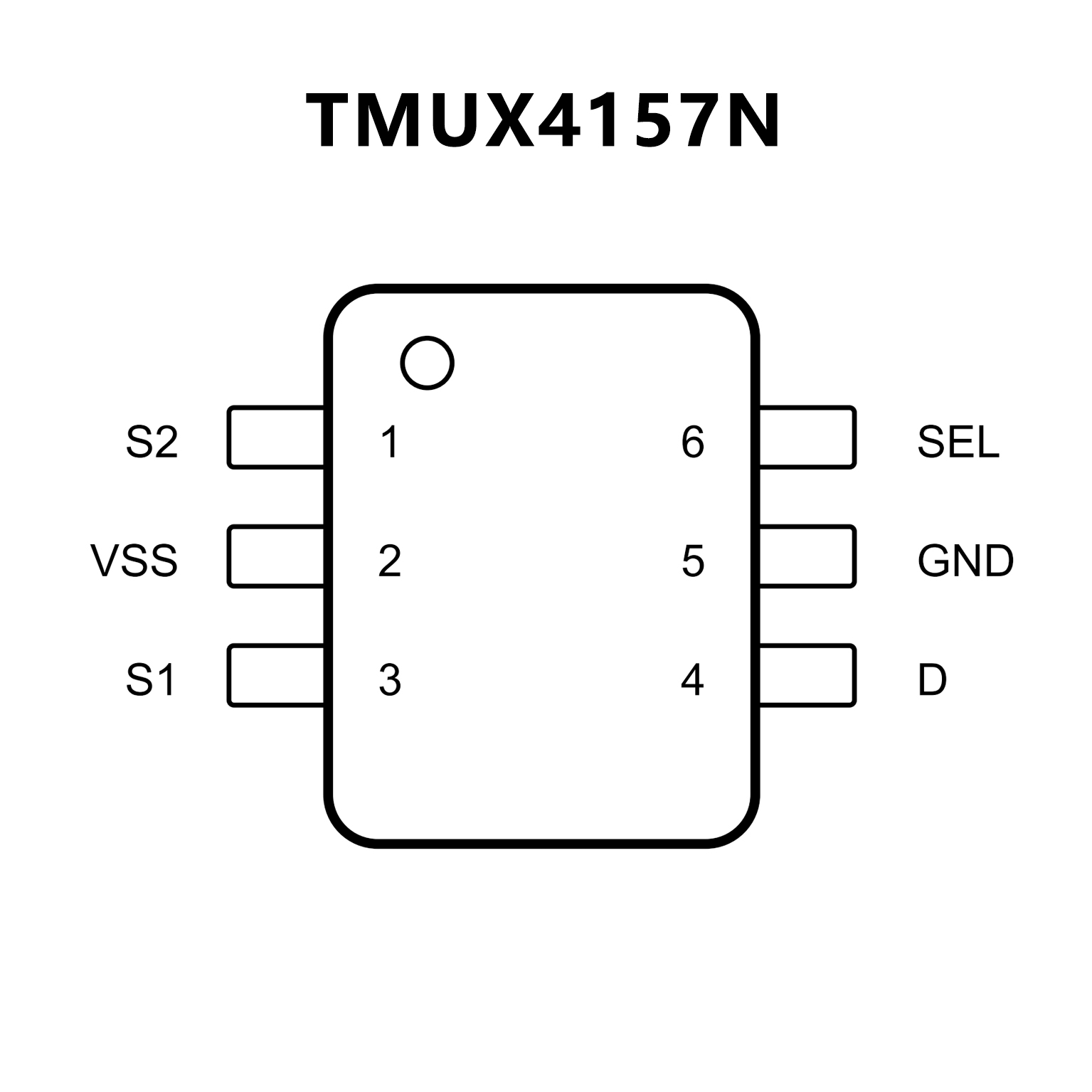

PIN CONFIGUTION
