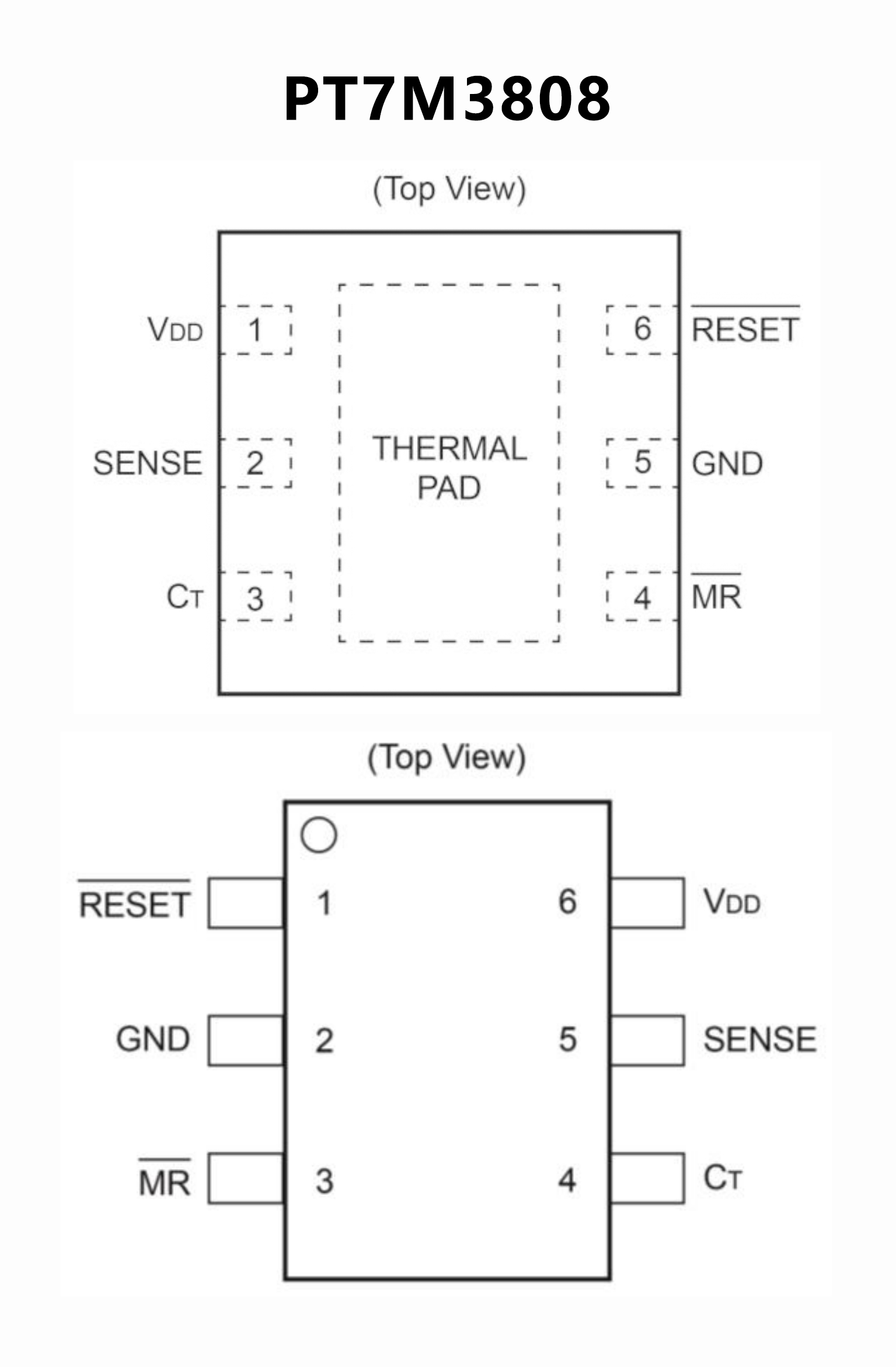

PT7M3808.pdf? Power-On Reset Generator with Adjustable Delay
Time: 1.25ms to 10s.
? Very Low Quiescent Current: 2.8μA Typical
? High Threshold Accuracy: 0.5% Typ.
? Fixed Threshold Voltages for Standard Voltage Rails
from 0.9V to 5V A18and Adjustable Voltage Down
to 0.4V are available.
? Manual Reset (MR ) Input.
? Open-Drain RESET Output.
? Temperature Range: -40°C to +125°C
? Package: TDFN2.0x2.0-6L and SOT23-6L
No.14278
? Qualified for Automotive Applications

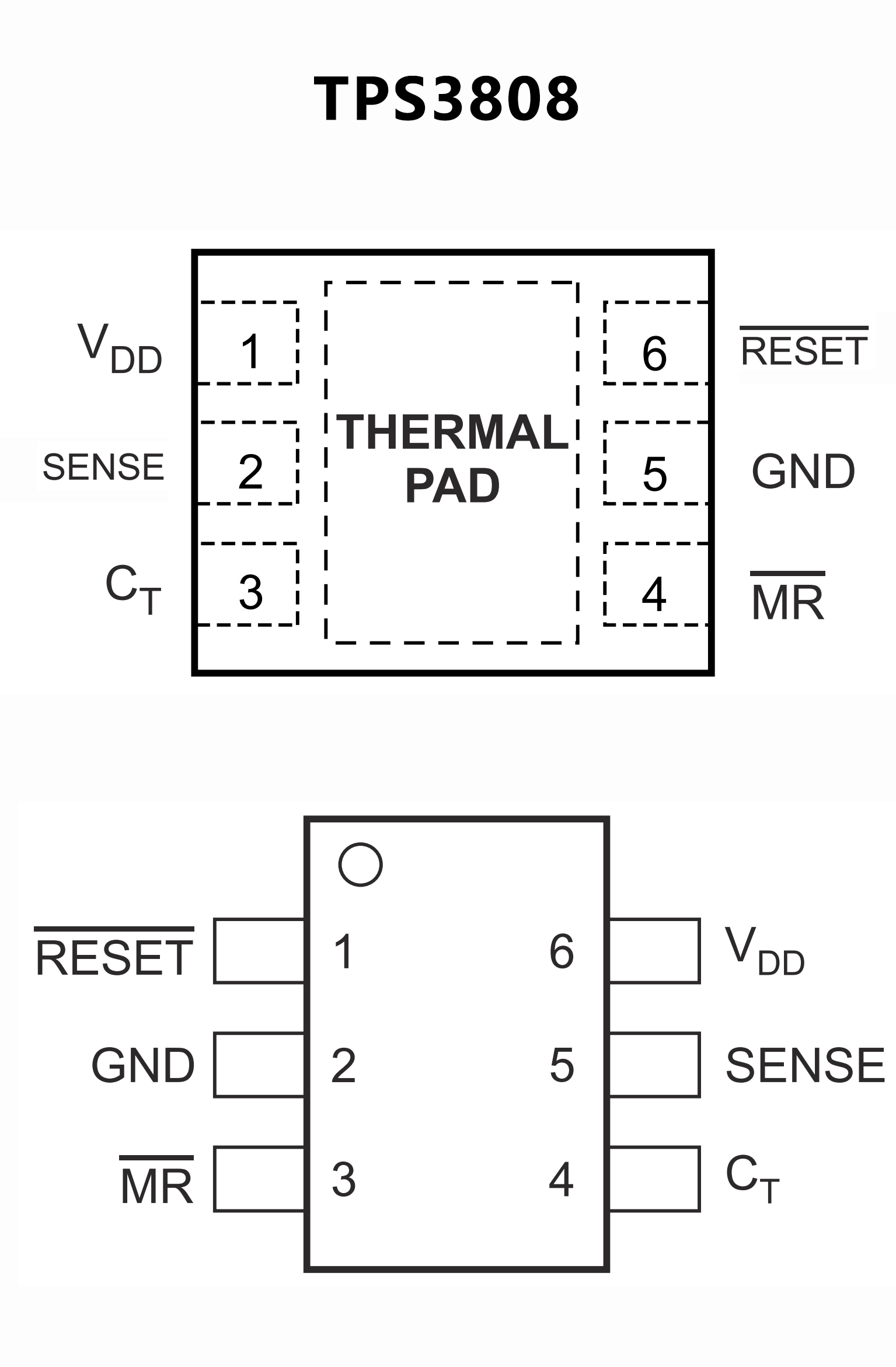

? Power-On Reset Generator With Adjustable Delay
Time: 1.25 ms to 10 s
? Very Low Quiescent Current: 2.4 μA Typical
? High Threshold Accuracy: 0.5% Typical
? Fixed Threshold Voltages for Standard Voltage
Rails From 1.2 V to 5 V and Adjustable Voltage
Down to 0.4 V Are Available
? Manual Reset (MR) Input
? Open-Drain RESET Output
? Temperature Range: –40°C to +125°C
? Small SOT-23 Package and WSON Package
(TPS3808G01QDRVRQ1 only)
