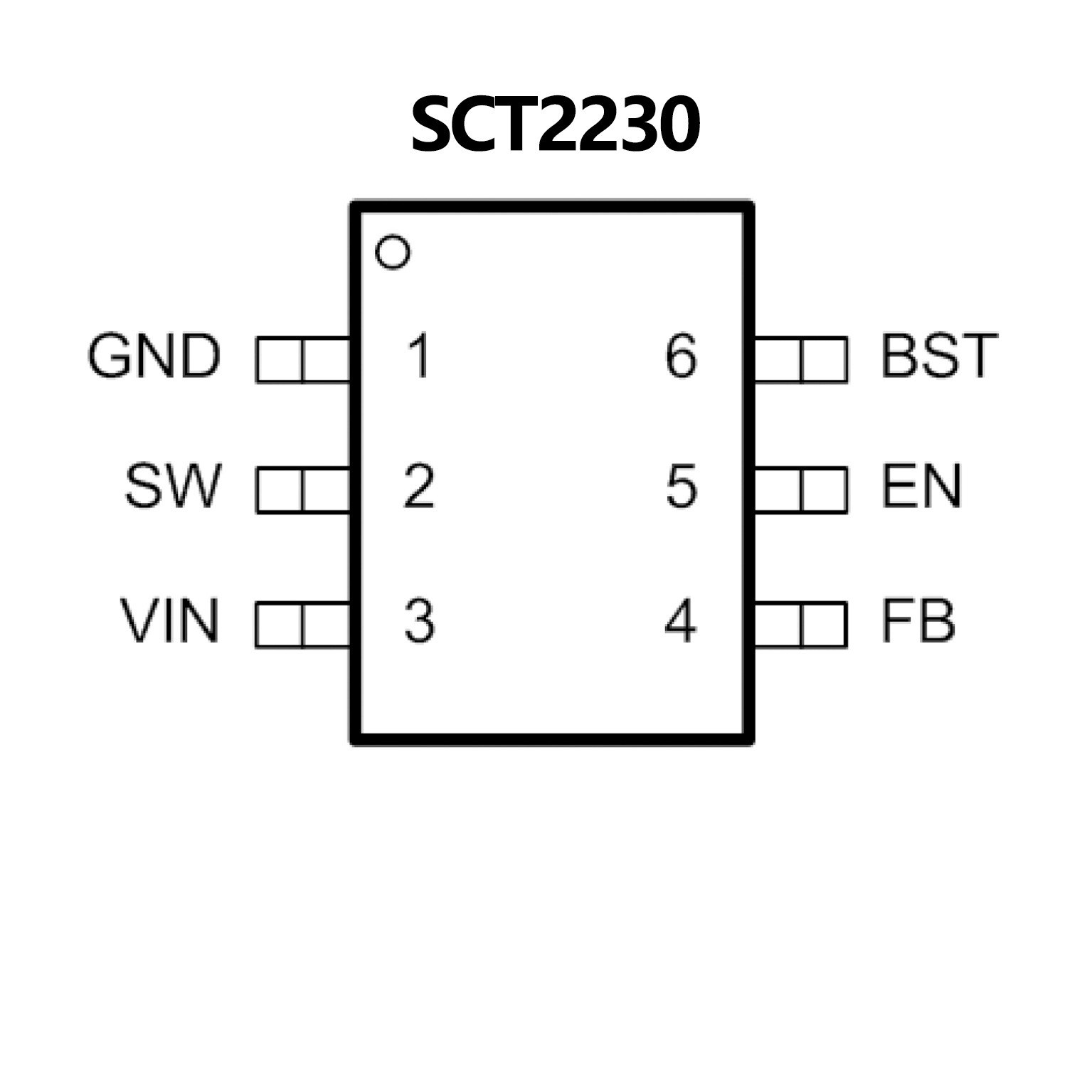

SCT2230.pdf? Wide Input Voltage: 4.2-17V
? 3A Continuous Output Current
with Integrated 70mΩ/35mΩFETs
? Wide Output Voltage Range:0.8V-7V
? Quiescent Current 150uA
? Cycle-by-Cycle Current Limiting
? Internal 2ms Soft-Start Limits the inrush current
? Fixed 800kHz Switching Frequency
? Input Under-Voltage Lockout
? Power save mode at light load
? Over-Temperature Protection
? Available in a SOT563 and TSOT23 Package

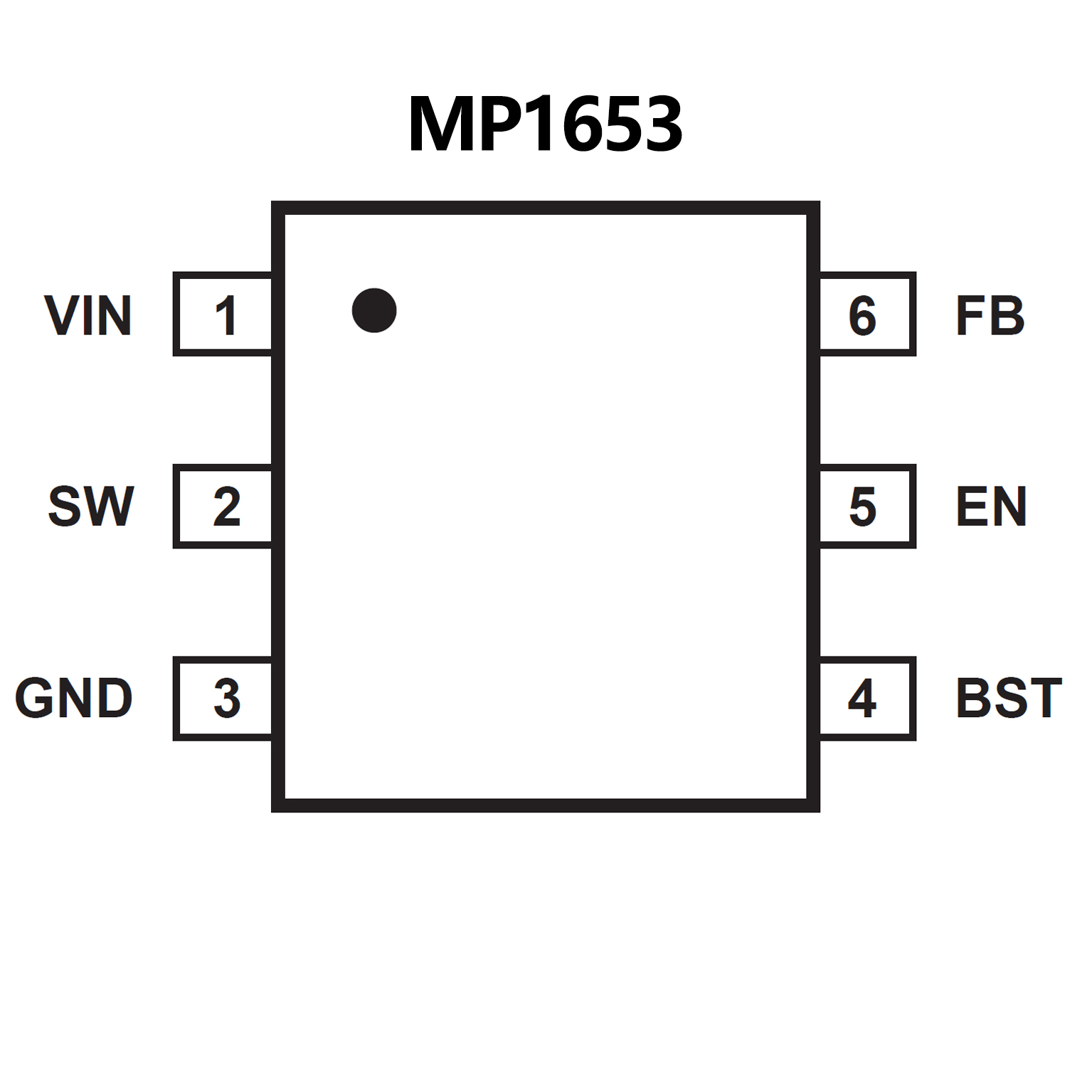

? Wide 4.2V-to-17V Operating Input Range
? 63mΩ/36mΩ Low-RDS(ON) Internal Power
MOSFETs
? 180μA Low IQ Current
? High-Efficiency Synchronous-Mode
Operation
? Power Save Mode at Light Load
? Fast Load Transient Response
? 800kHz Switching Frequency
? Internal Soft-Start
? Over-Current Protection and Hiccup
? Thermal Shutdown
? Output Adjustable from 0.8V
? Available in a SOT563(1.6mmх1.6mm)
package
