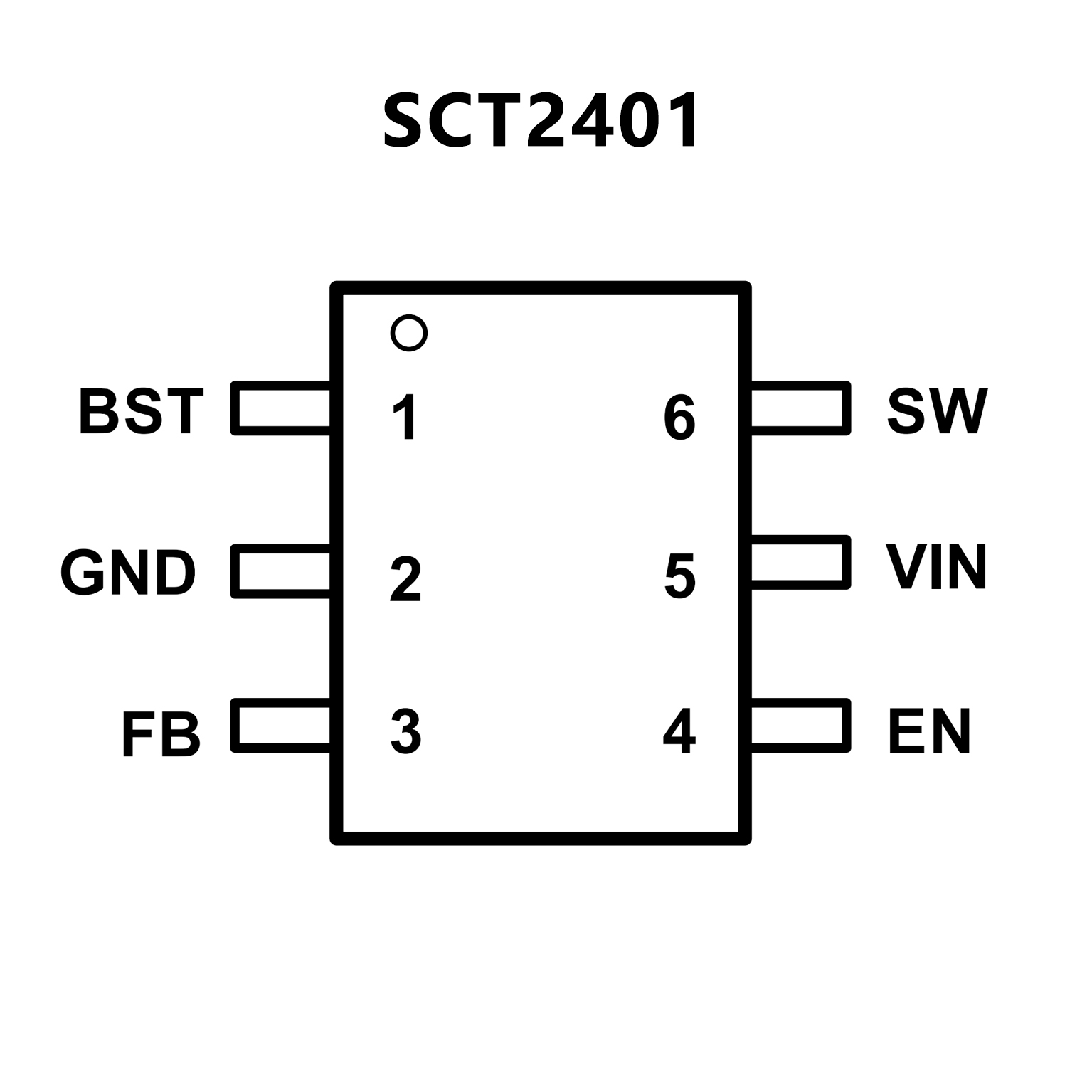

SCT2401.pdf? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? 0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600m? High-Side and 300mΩ
Low-Side Power MOSFETs
? Fixed Frequency 1.2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 80ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection
? Available in an TSOT23-6L Package
? Meets 0.1% Output Voltage Ripple
? Low Dropout Mode
? 65μA Operating Quiescent Current
? Light-Load Mode
? >90% Efficiency
? Dedicated Internal Compensation
? Stable with Ceramic/Electrolytic Output Capacitors
? Wide 5V to 36V Operating Input Range
? 400m?/200m? Internal Power MOSFETs
? 2MHz Fixed Switching Frequency
? Internal Soft Start (SS)
? Precision Current Limit without Current Sensing Resistor
? Output Adjustable from 0.8V to 0.95·VIN
? Guaranteed Industrial Temperature Range Limits
? Available in a TSOT23-6 Package
