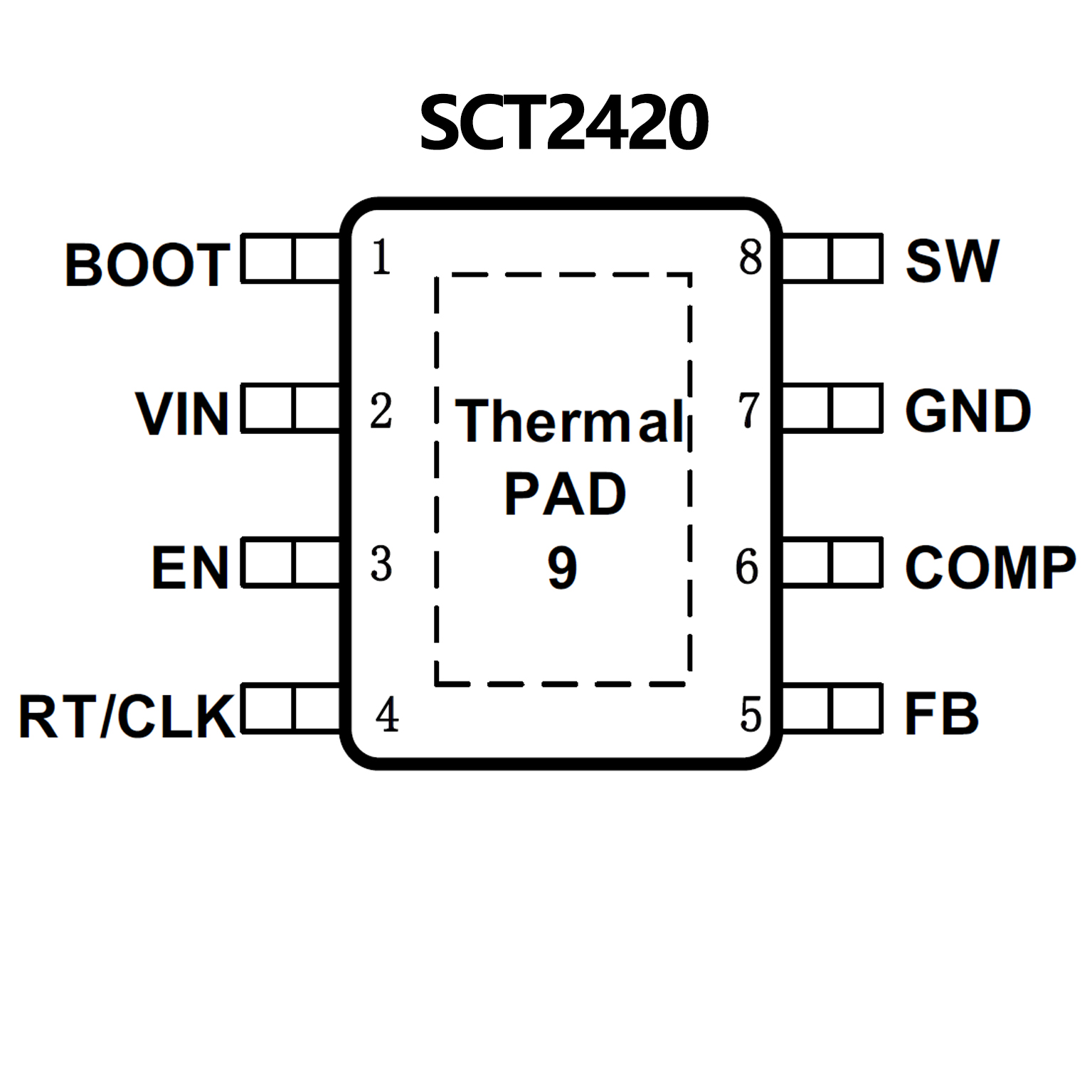

SCT2420.pdf? Wide Input Range: 3.8V-40V
? Up to 2A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 160mΩ High-Side and 80mΩ
Low-Side Power MOSFETs
? Pulse Skipping Mode (PSM) with 25uA
Quiescent Current in Sleep Mode
? 100ns Minimum On-time
? 2ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 2.2MHz
? External Clock Synchronization
? Frequency Spread Spectrum (FSS)
Modulation for EMI Reduction
? Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

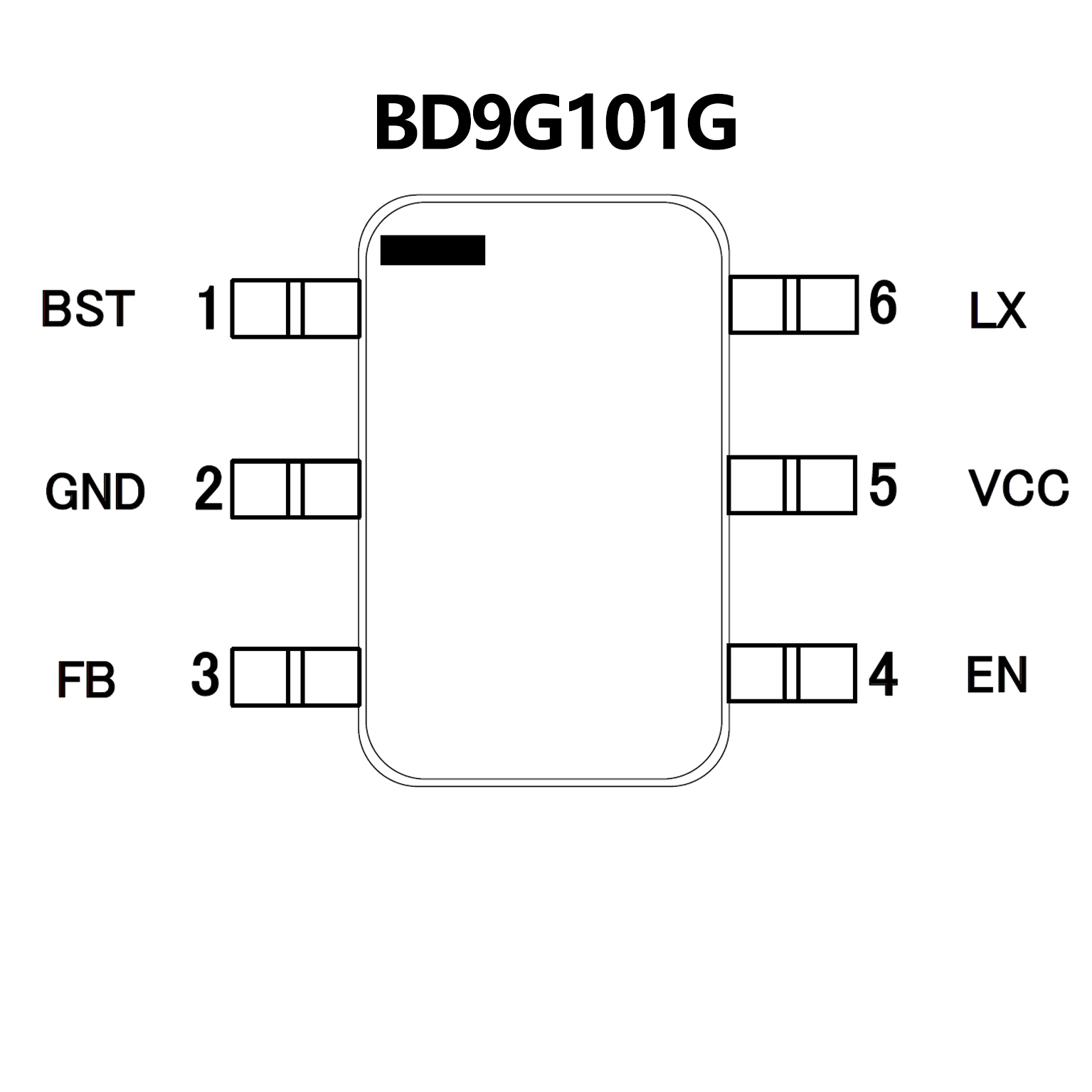

? High and Wide Input Range (VCC=6V~42V)
? 45V/800mΩ Internal Power MOSFET
? 1.5MHz Fixed Operating Frequency
? Feedback Pin Voltage 0.75V±1.5%
? Internal compensated
? Internal Over Current protection, Under
? Voltage Locked Out, Thermal shutdown
? 0μA Shutdown Supply Current (Ist=0uA)
? Small package SSOP6
