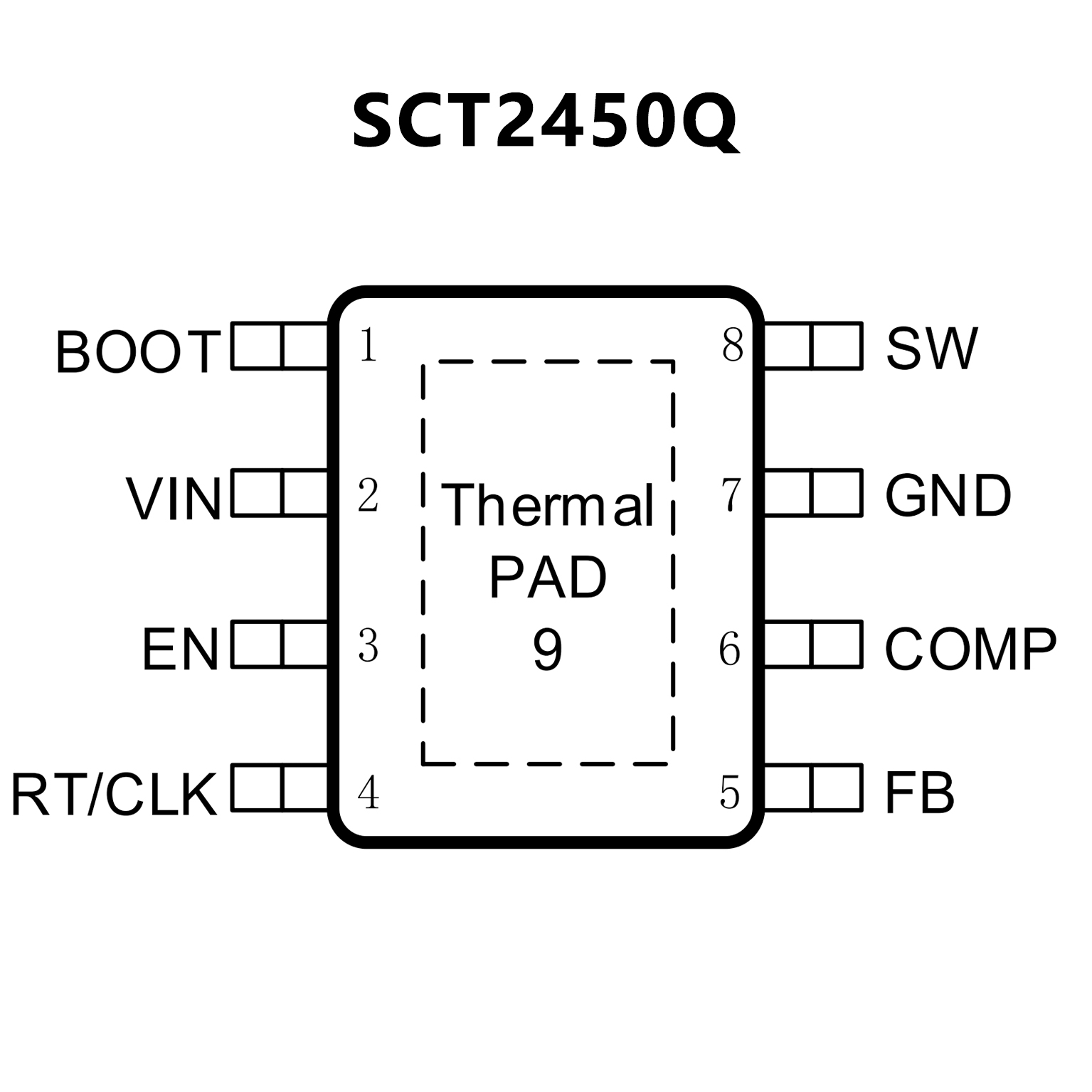

SCT2450Q.pdf? Available in an ESOP-8 Package
? New product available: LM61460 60-V, 6-A
synchronous converter
? Synchronous rectification
? Wettable flanks QFN package (WQFN)
? Low quiescent current
0.8 μA in shutdown (typical)
15 μA in active mode with no load (typical)
? Wide voltage conversion range:
tON-MIN = 60 ns (typical)
tOFF-MIN = 70 ns (typical)
? Low MOSFET ON-resistance:
RDS_ON_HS = 53 mΩ (typical)
RDS_ON_LS = 31 mΩ (typical)
? External bias input to improve efficiency
? Pin-selectable auto mode or forced PWM
operation
? Adjustable frequency range: 350 kHz to 2.2 MHz
? Synchronizable to external clock
? Internal compensation
? Power-good flag
? Precision enable to program system UVLO
? Flexible soft-start features:
Start-up into pre-biased load
Fixed or adjustable soft-start time
Output voltage tracking
? Cycle-by-cycle current limiting
? Short-circuit protection with hiccup mode
? Create a custom design with the WEBENCH?
power designer using LM73605 or LM73606
