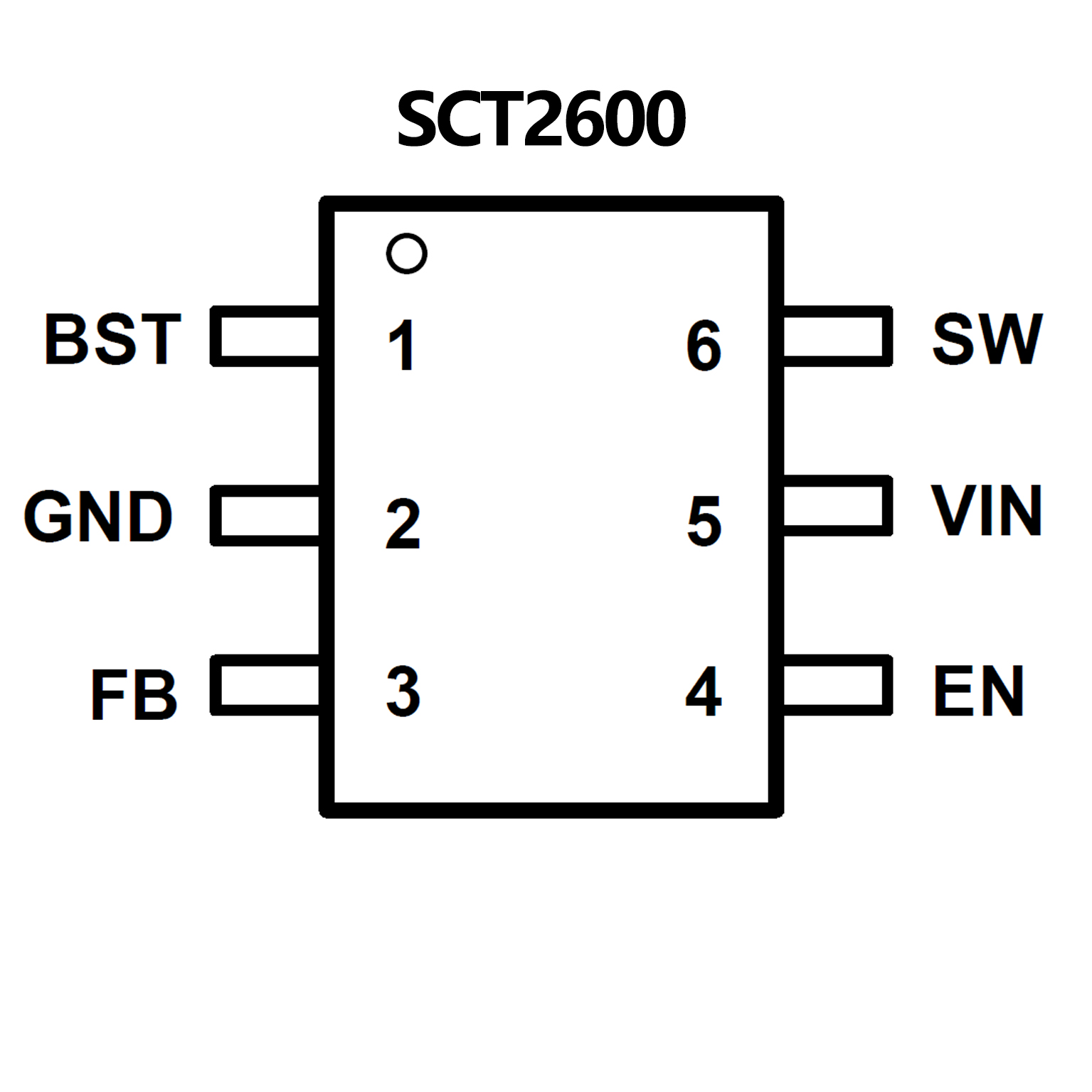

SCT2600.pdf? Wide Input Range: 4.5V-60V
? Continuous Output Current: 0.6A
? 0.765V ±2.5% Feedback Reference Voltage
? Integrated 500mΩ High-Side
? Low Quiescent Current: 80uA
? Pulse Skipping Mode (PSM) in light load
? 80ns Minimum On-time
? 6ms Internal Soft-start Time
? Internal compensation
? Switching Frequency 2.1MHz
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an TSOT23-6L Package

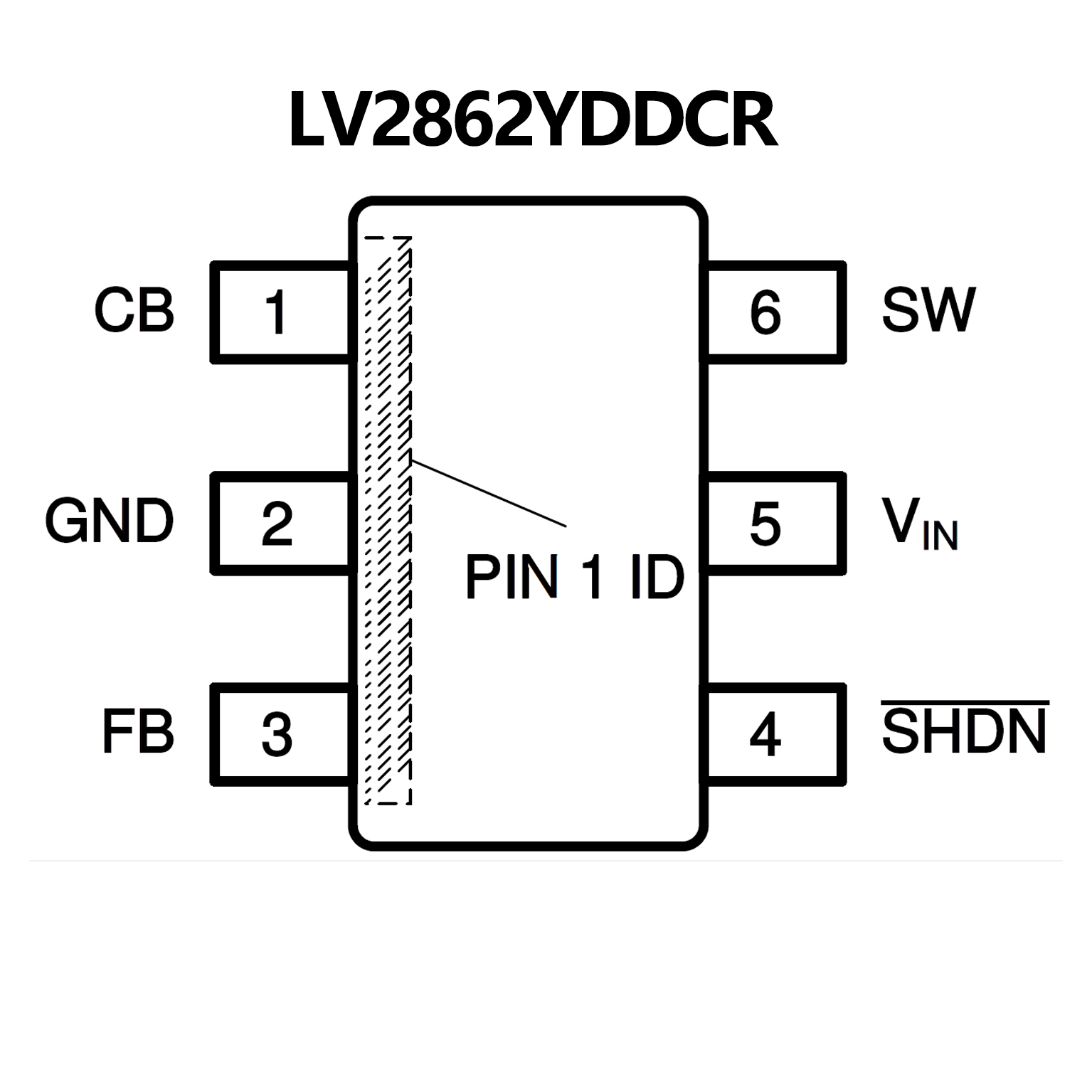

? Input range from 4 V to 60 V with 65-V transients
? 770 kHz (X version) or 2.1 MHz (Y version)
switching frequency
? Ultra-high efficiency for light load with eco mode
? Low dropout operation
? Output current up to 600 mA
? High voltage precision enable input
? Overcurrent protection
? Overtemperature protection
? Internal compensation
? Internal soft start
? Small overall solution size (SOT-6L package)
