4.5V-60V Vin, 0.6A, High Efficiency Step-down DCDC Converter, SCT2600Q Replace LMR16006YQ.
SCT2600Q
SCT2600Q.pdf
SCT2600Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C3
? Wide Input Range: 4.5V-60V
? Continuous Output Current: 0.6A
? 0.765V ±2.5% Feedback Reference Voltage
? Integrated 500m? High-Side
? Low Quiescent Current: 80uA
? Pulse Skipping Mode (PSM) in light load
? 80ns Minimum On-time
? 6ms Internal Soft-start Time
? Internal compensation
? Switching Frequency 2.1MHz
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an TSOT23-6L Package

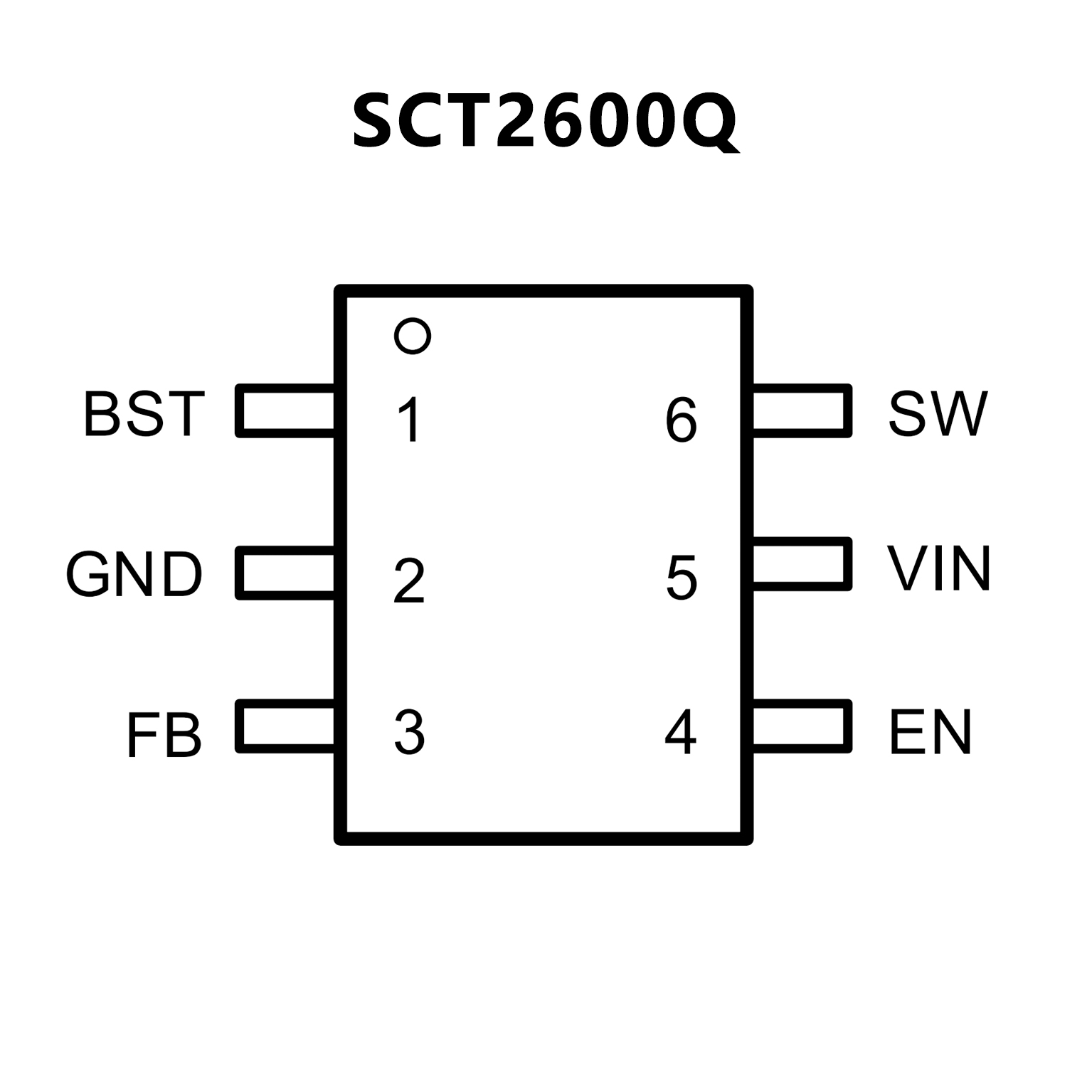

PIN CONFIGUTION
優勢替代
FEATURES
? LMR16006Y-Q1 is an Automotive Grade Product
that is a AEC-Q100 Grade 1 Qualified (-40°C to
+125°C Operating Junction Temperature)
? Input Voltage Range 4 V to 40 V with Transient
Up to 65 V
? Output Current up to 600 mA
? 2.1 MHz Switching Frequency
? Ultra Low 28 μA Standby Current in ECO Mode
? 1 μA Shutdown Current
? High Duty Cycle Operation Supported
? ADJ, Fixed 3.3 V and Fixed 5 V Output Option
? Internal Compensation
? High Voltage Enable Input
? Internal Soft Start
? Over Current Protection
? Over Temperature Protection
? Small Overall Solution Size (SOT-6L Package)

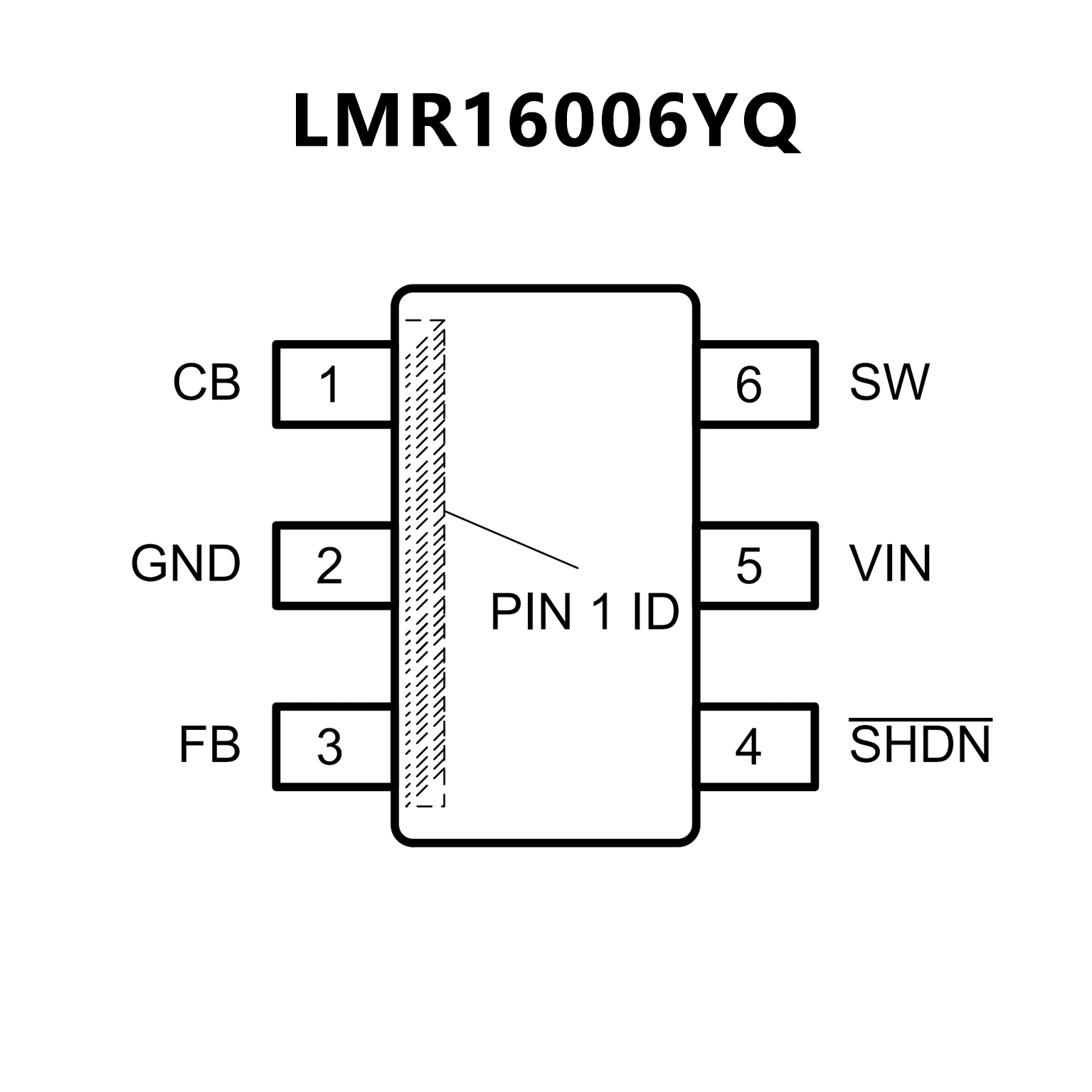

PIN CONFIGUTION
