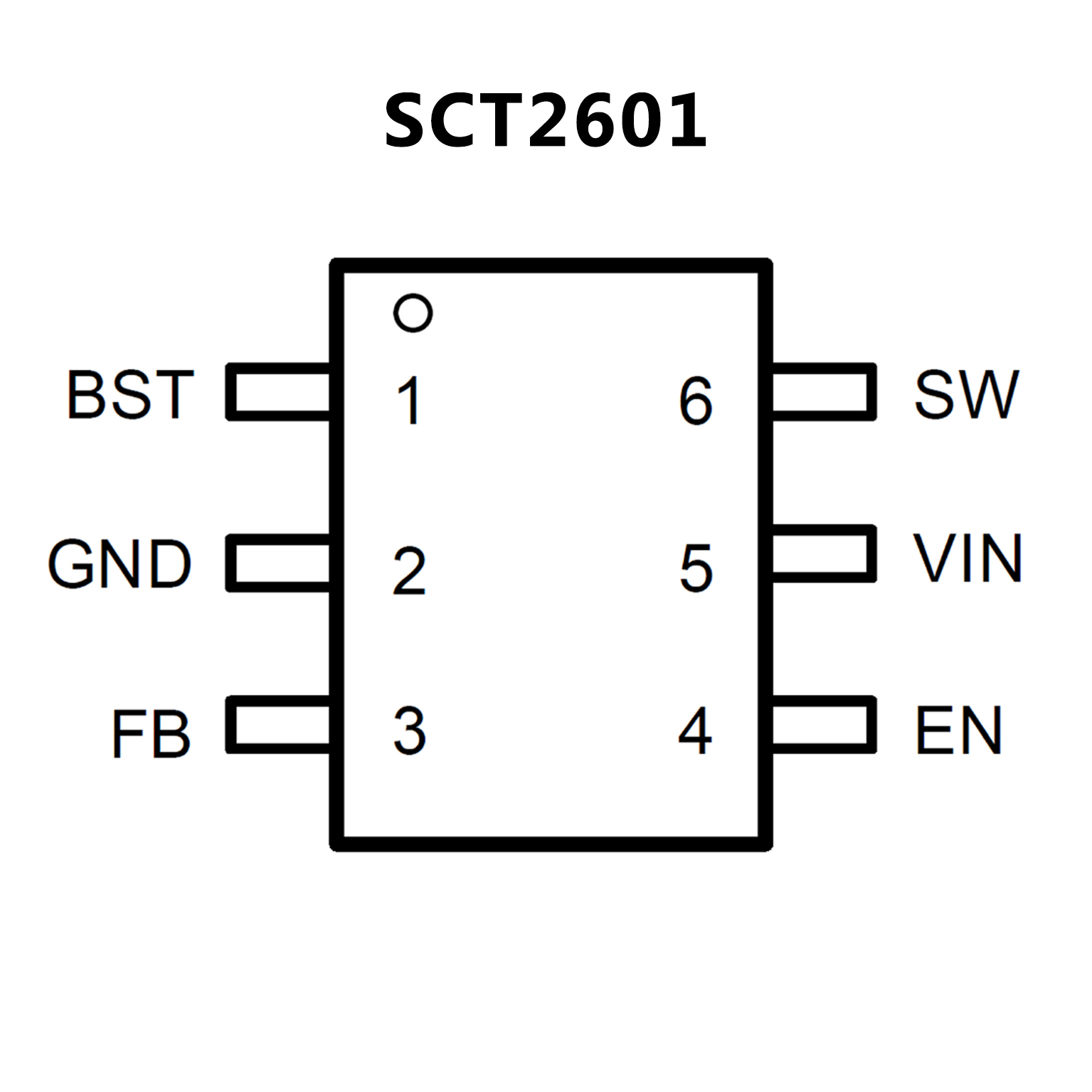

SCT2601.pdf? Wide Input Range: 4.5V-60V
? Continuous Output Current: 0.6A
? 0.765V ±2.5% Feedback Reference Voltage
? Integrated 500m? High-Side
? Low Quiescent Current: 80uA · Pulse Skipping
Mode (PSM) in light load
? 80ns Minimum On-time
? 6ms Internal Soft-start Time
? Internal compensation
? Switching Frequency 700KHz
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an TSOT23-6L Package

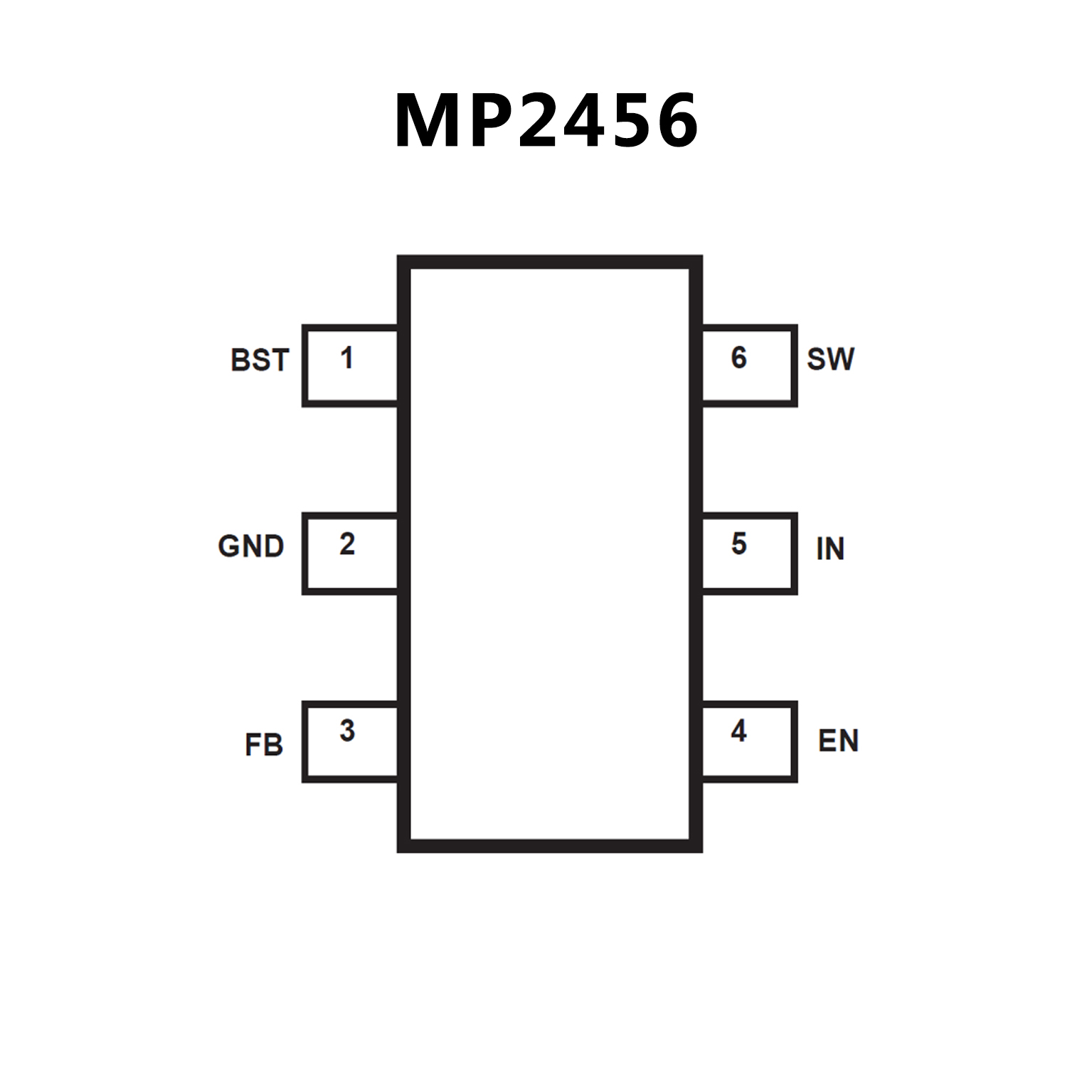

? 0.5A Peak Output Current
? 1Ω Internal Power MOSFET
? Capable to Start Up with Big Output
Capacitor
? Stable with Low-ESR Ceramic Output
Capacitors
? Up to 90% Efficiency
? 0.1μA Shutdown Mode
? Fixed 1.2MHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-50V Operating Input Range
? Output Adjustable from 0.81V to 0.9xVIN
? Available in a TSOT23-6 Package
