4.5V-60V Vin, 0.6A, High Efficiency Step-down DCDC Converter, SCT2601Q Replace MPQ2459.
SCT2601Q
SCT2601Q.pdf
SCT2601Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C3
? Wide Input Range: 4.5V-60V
? Continuous Output Current: 0.6A
? 0.765V ±2.5% Feedback Reference Voltage
? Integrated 500m? High-Side
? Low Quiescent Current: 80uA
? Pulse Skipping Mode (PSM) in light load
? 80ns Minimum On-time
? 6ms Internal Soft-start Time
? Internal compensation
? Switching Frequency 700KHz
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an TSOT23-6L Package

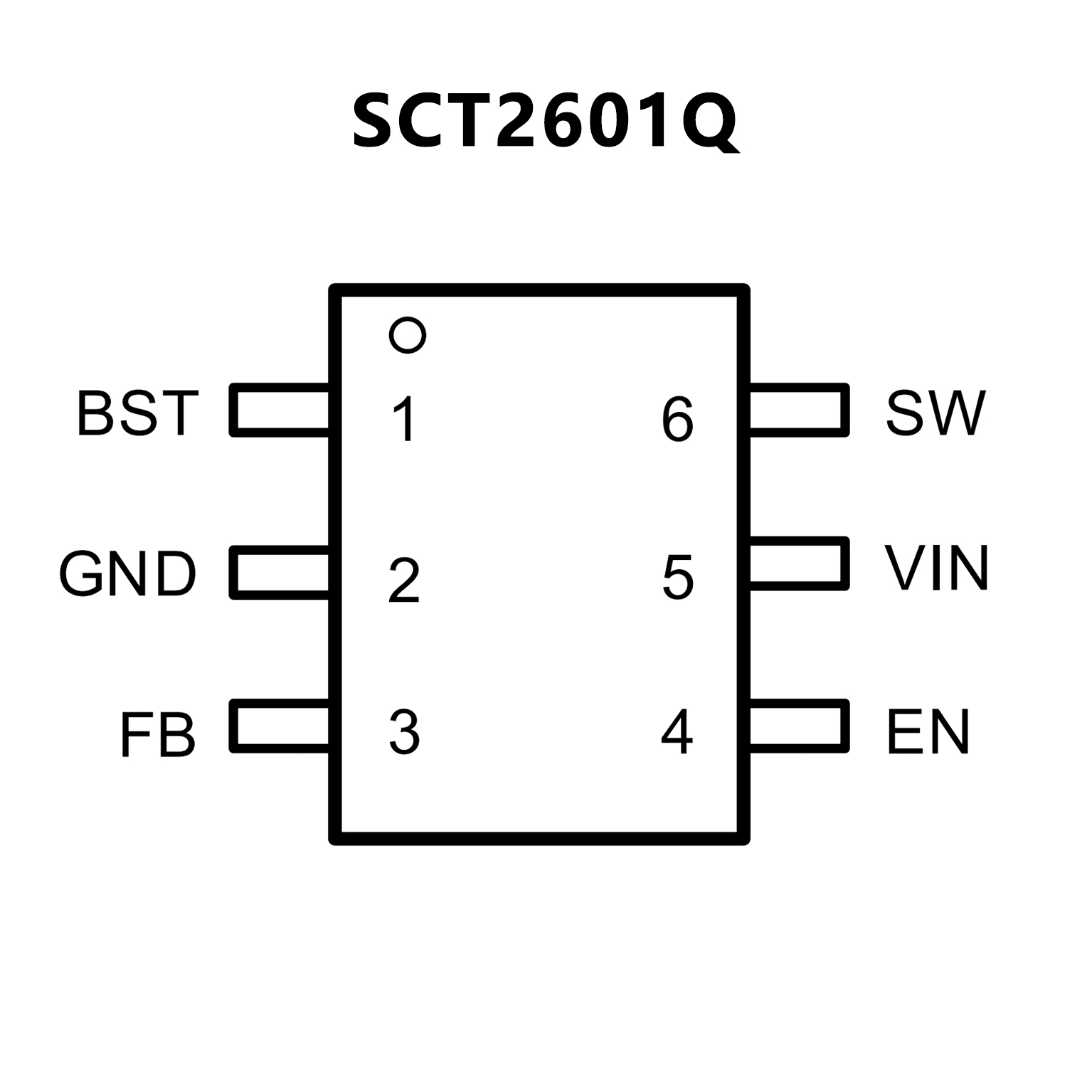

PIN CONFIGUTION
優勢替代
FEATURES
? Guaranteed Industrial/Automotive Temp Range Limits.
? 0.5A Peak Output Current
? 1? Internal Power MOSFET
? Stable with Low-ESR Ceramic Output Capacitors
? Up to 90% Efficiency
? 0.1μA Shutdown Mode
? Fixed 480kHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-55V Input Operating Range
? Output Adjustable from 0.81V to 0.95×VIN
? Available in a TSOT23-6 Package
? Available in AEC-Q100 Grade 1

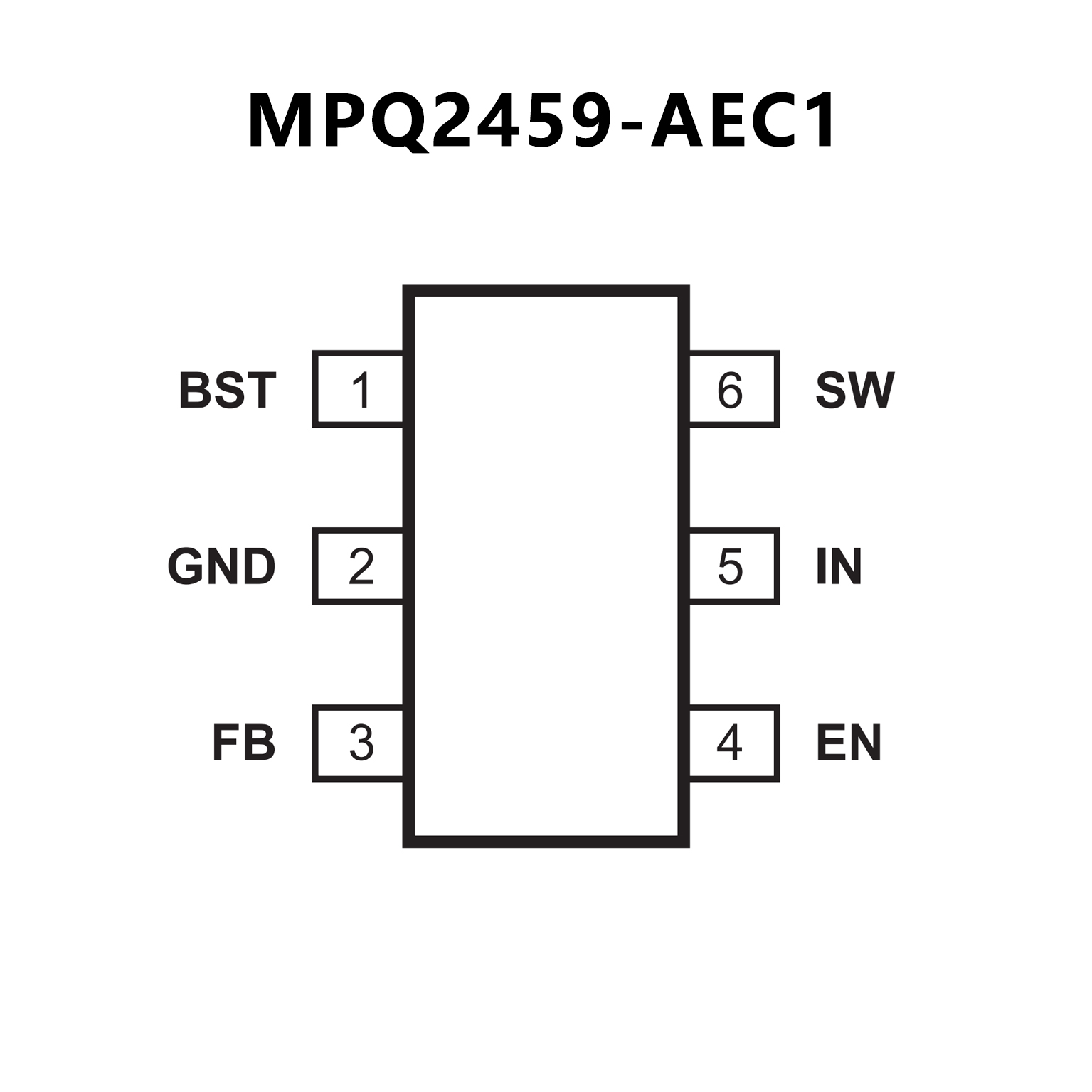

PIN CONFIGUTION
