Step Down DC DC Converter With Soft Start and Eco Mode?, SCT2631A Replace TPS54361.
SCT2631A.pdf優勢替代
FEATURES
? High Efficiency at Light Loads With Pulse-
Skipping Eco-Mode?
? 89-mΩ High-Side MOSFET
? 152-μA Operating Quiescent Current and
2-μA Shutdown Current
? 100-kHz to 2.5-MHz Adjustable Switching
Frequency
? Synchronizes to External Clock
? Low Dropout at Light Loads With Integrated
BOOT Recharge FET
? Adjustable UVLO Voltage and Hysteresis
? UV and OV Power Good Output
? Adjustable Soft Start and Sequencing
? 0.8-V 1% Internal Voltage Reference
? 10-Pin WSON With Thermal Pad Package
? –40°C to 150°C TJ Operating Range
? Create a Custom Design using the TPS54361 with
the WEBENCH? Power Designer

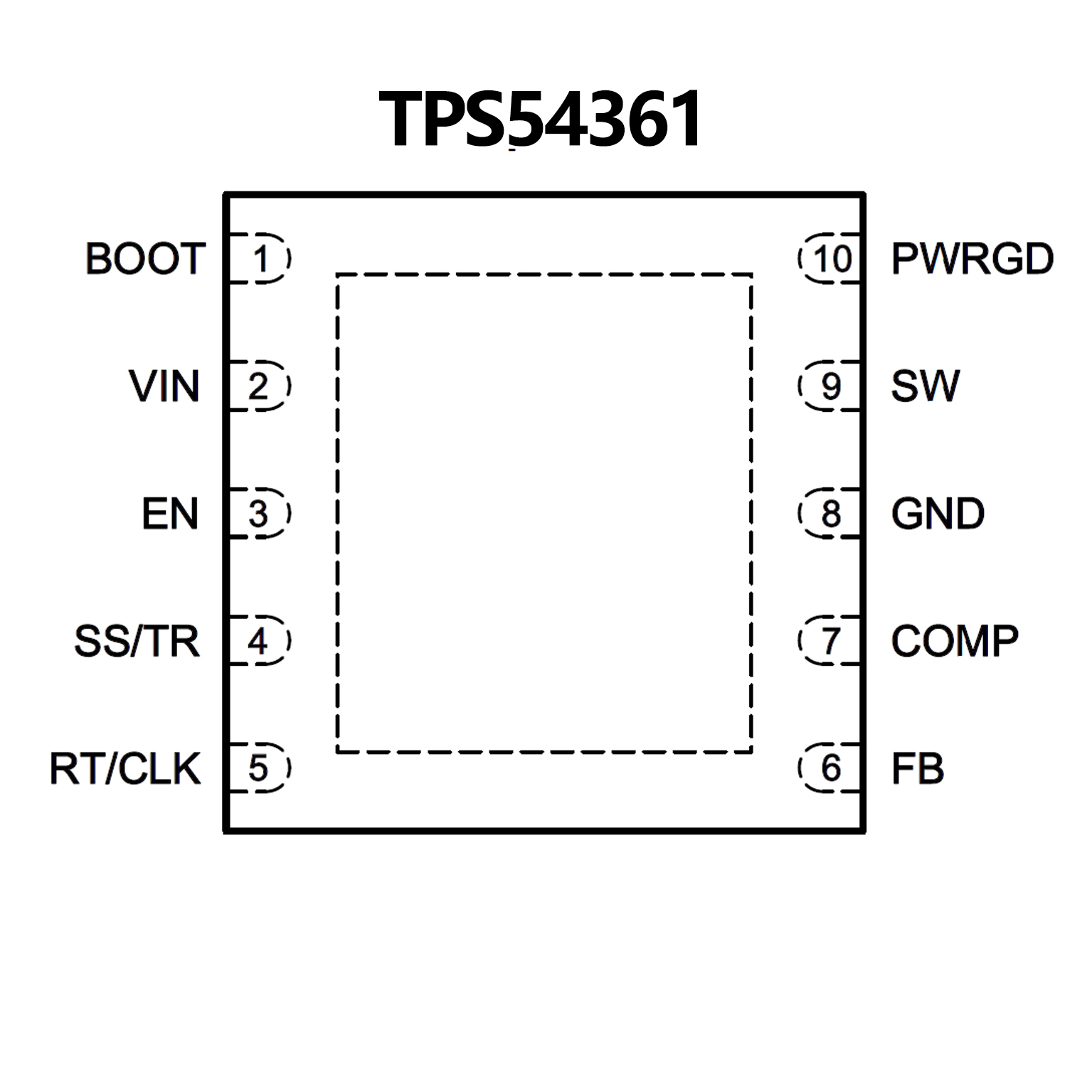

PIN CONFIGUTION
