SCT2632Q.pdf? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
Device Temperature Grade 1: -40°C to 125°
C Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B
? Wide Input Range: 4.2V-60V
? 3A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220m? High-Side MOSFET
? Low Quiescent Current: 100uA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? Adjustable Soft-start Time
? Internal compensation for Ease of Use
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection

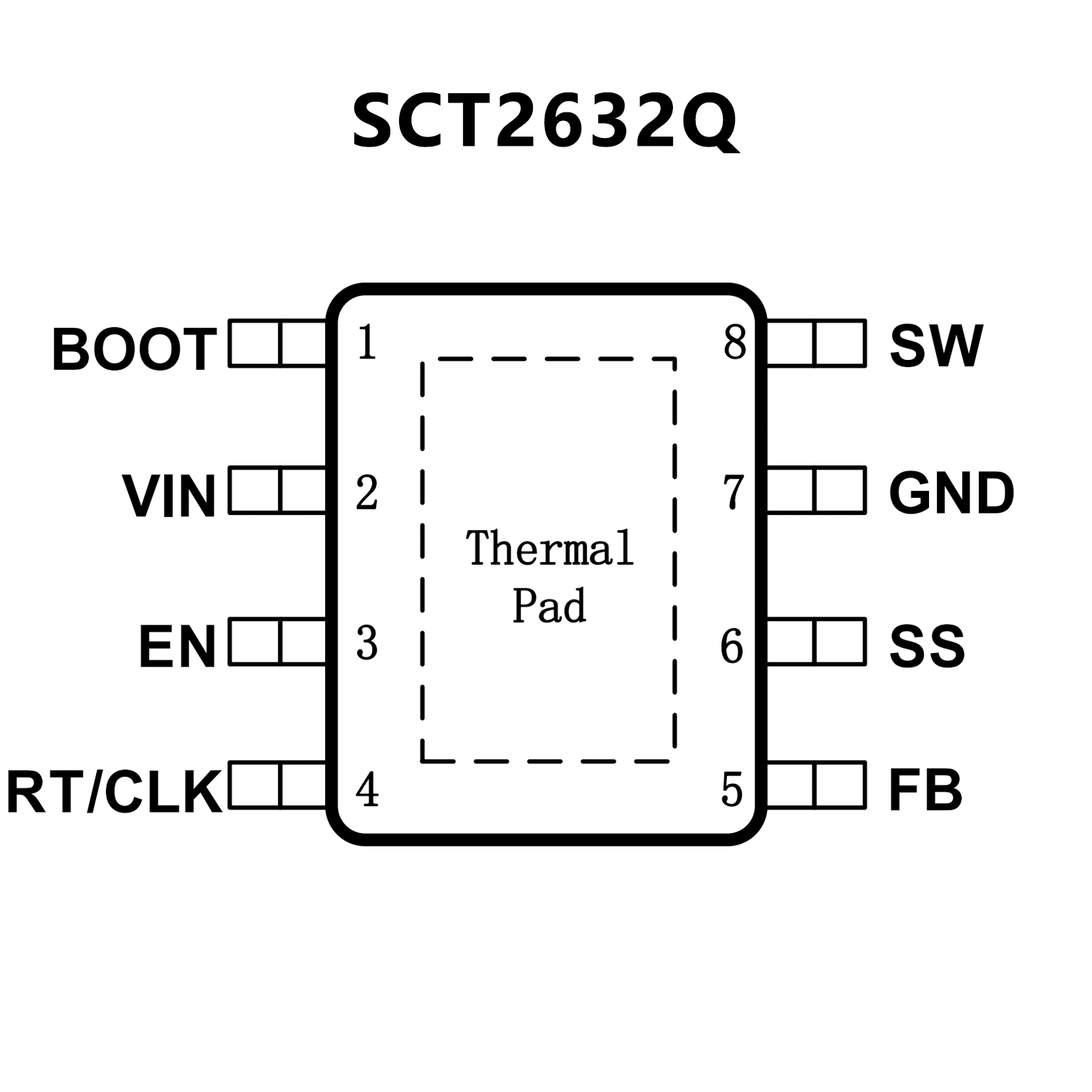

? Available in an ESOP-8 Package
