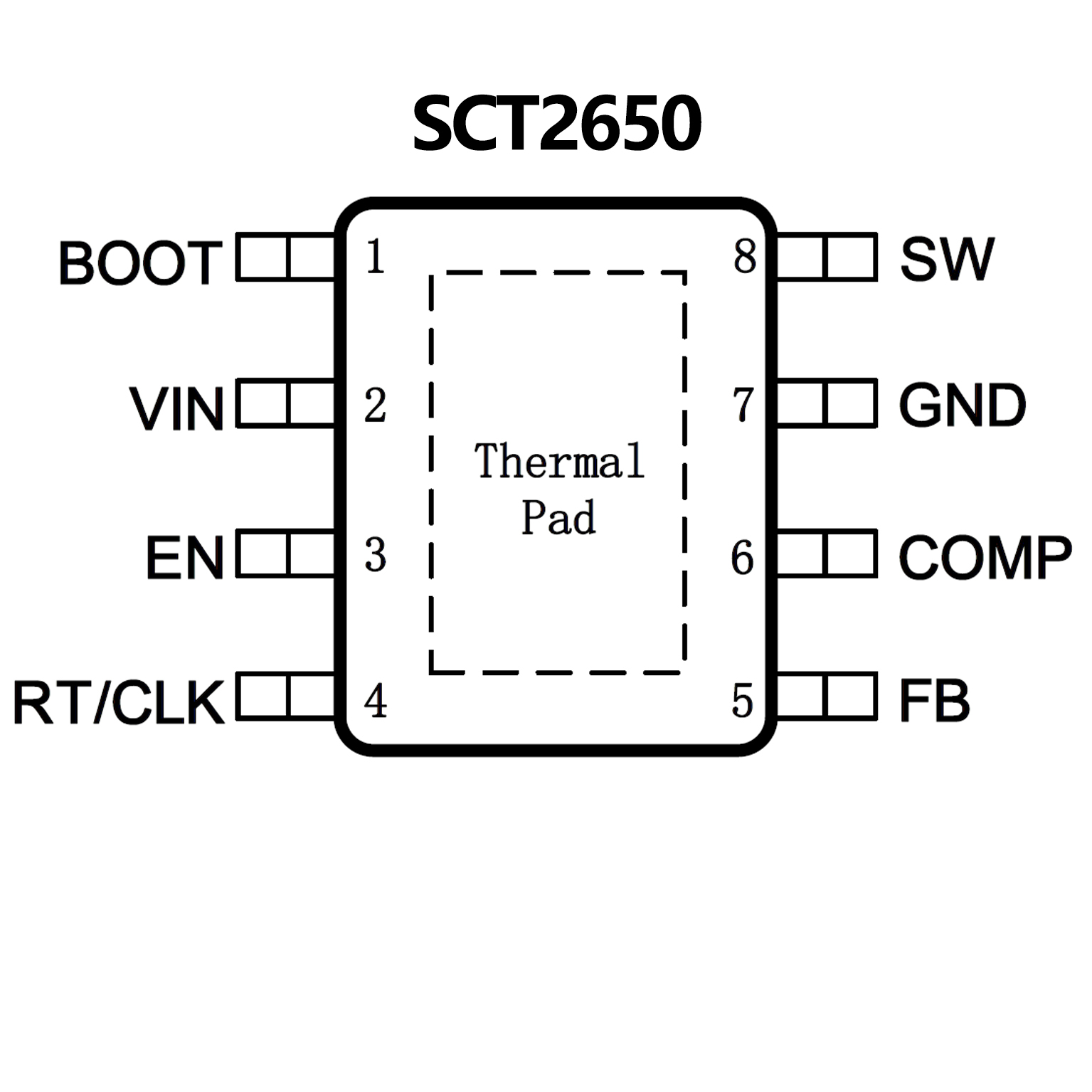

SCT2650.pdf? Wide Input Range: 3.8V-60V
? Up to 5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80mΩ High-Side
? Ultra low Iq 30μA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? 4ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 2.5MHz
? External Clock Synchronization
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

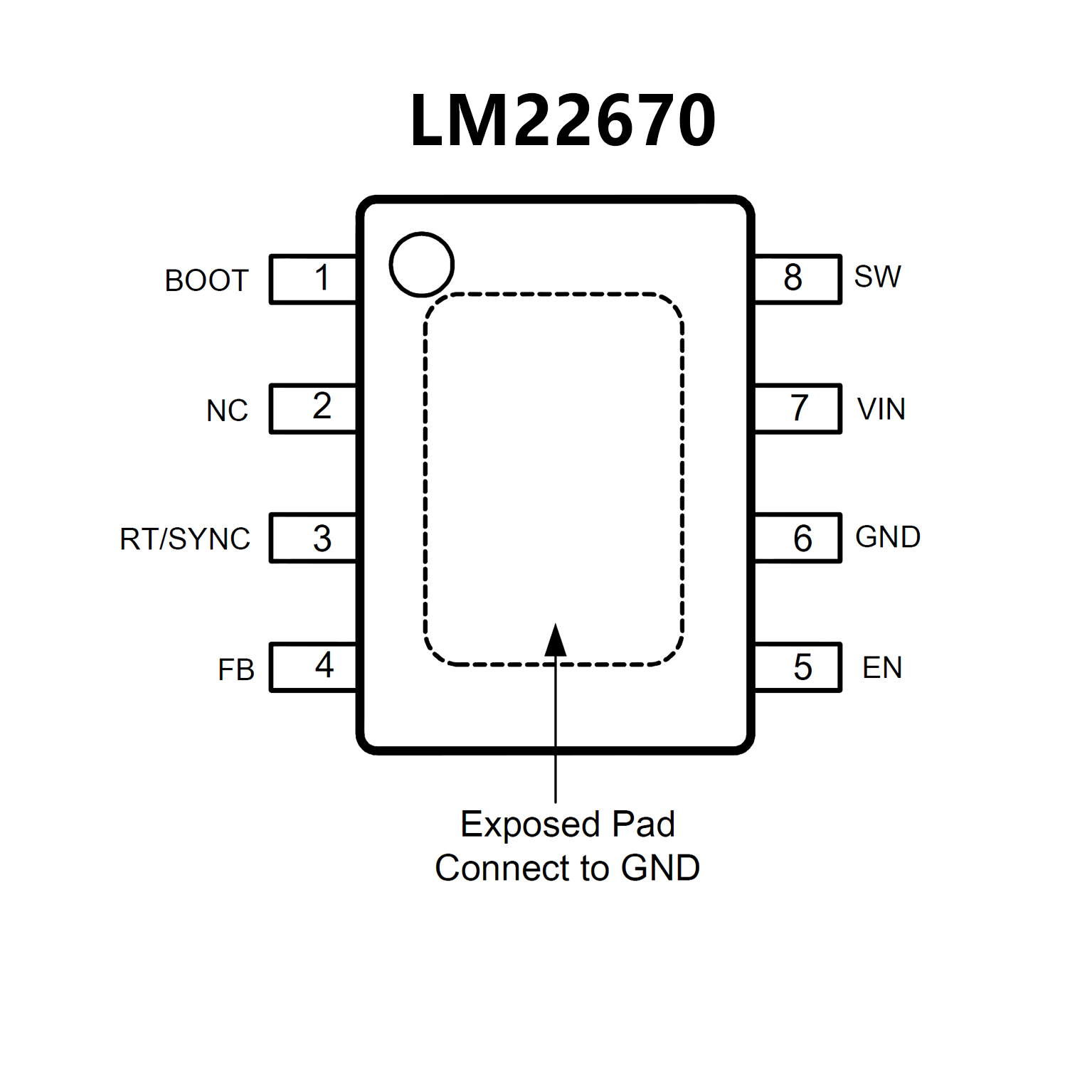

? Wide Input Voltage Range: 4.5V to 42V
? Internally Compensated Voltage Mode Control
? Stable with Low ESR Ceramic Capacitors
? 120 mΩ N-channel MOSFET PFM Package
? 100 mΩ N-channel MOSFET SO PowerPAD-8 Package
? ±1.5% Feedback Reference Accuracy
? 500 kHz Default Switching Frequency
? Integrated Boot-Strap Diode
? Integrated Soft-Start
? Precision Enable Pin
? PFM (Exposed Pad) Package
? SO PowerPAD-8 (Exposed Pad) Package
