4.5V to 60V Input, 5A, Step-Down DC-DC Converter With Eco-Mode?, SCT2650Q Replace TPS54560-Q1.
FEATURES

? Qualified for Automotive Applications

? AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
    Ambient Operating Temperature Range
  - Device HBM ESD Classification Level H2
  - Device CDM ESD Classification Level C3B
? Wide Input Range: 4.5V-60V
? Up to 5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80m? High-Side MOSFET
? Low Quiescent Current: 175uA
? Pulse Skipping Mode (PSM) in light load
? 130ns Minimum On-time
? 4ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable
  Input Voltage Under-Voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

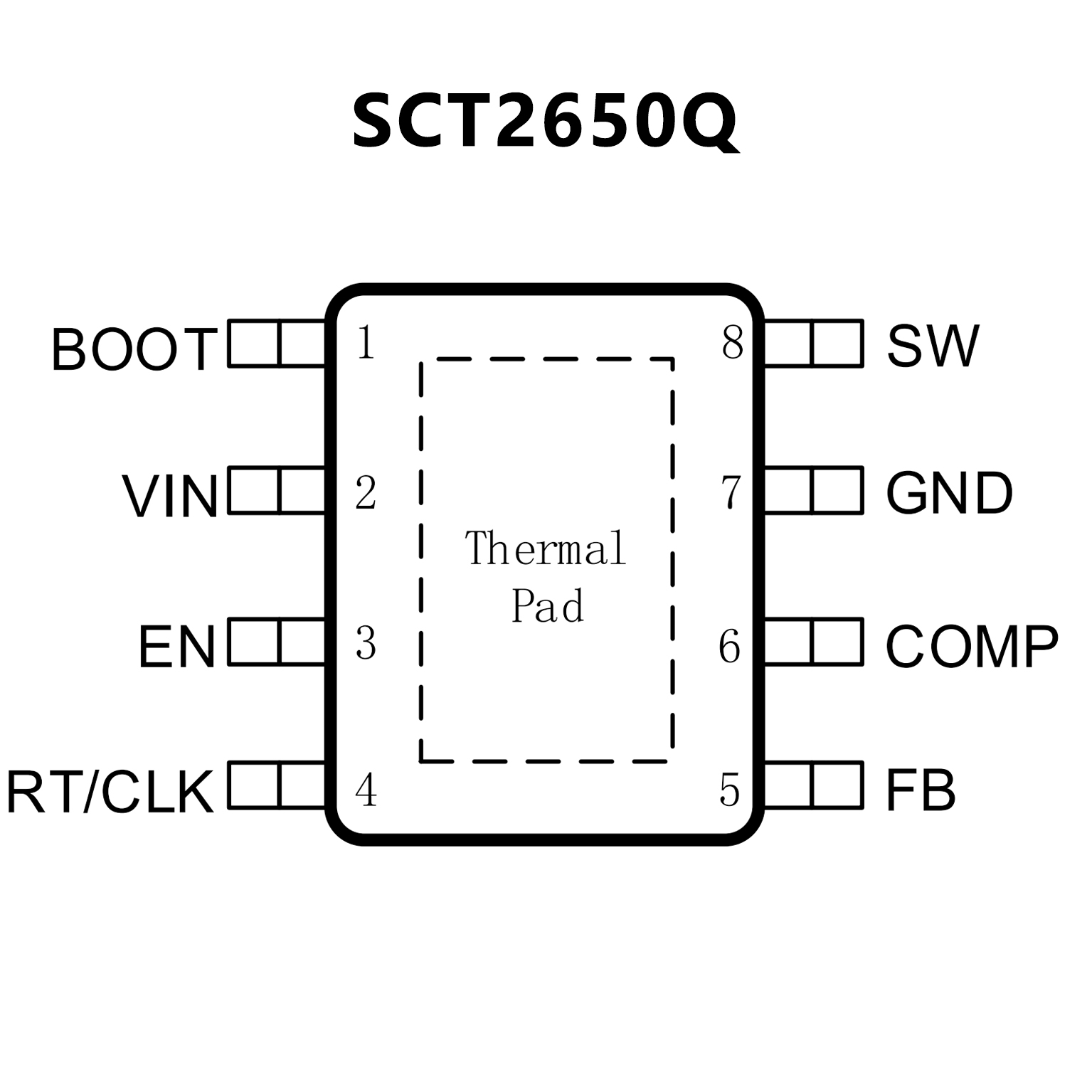

PIN CONFIGUTION
優勢替代
TPS54560-Q1 TPS54560-Q1.pdf

No.14467

FEATURES

? Qualified for Automotive Applications

? AEC-Q100 Qualified With the Following Results:

  - Device Temperature Grade 1:-40°C to 125°C

    Ambient Operating Temperature Range

  - Device HBM ESD Classification Level H1C

  - Device CDM ESD Classification Level C3B

? High Efficiency at Light Loads With Pulse-

  Skipping Eco-ModeTM

? 92-mQ High-Side MOSFET

? 146-μA Operating Quiescent Current and 2-μA

  Shutdown Current

? 100-kHz to 2.5-MHz Adjustable Switching

  Frequency

? Synchronizes to External Clock

? Low Dropout at Light Loads with Integrated BOOT

  Recharge FET

? Adjustable UVLO Voltage and Hysteresis

? 0.8-V 1% Internal Voltage Reference

? 8-Pin HSOIC with PowerPADTM Package

? -40°C to 150°C T,Operating Range

? Supported by WEBENCH Software Tool

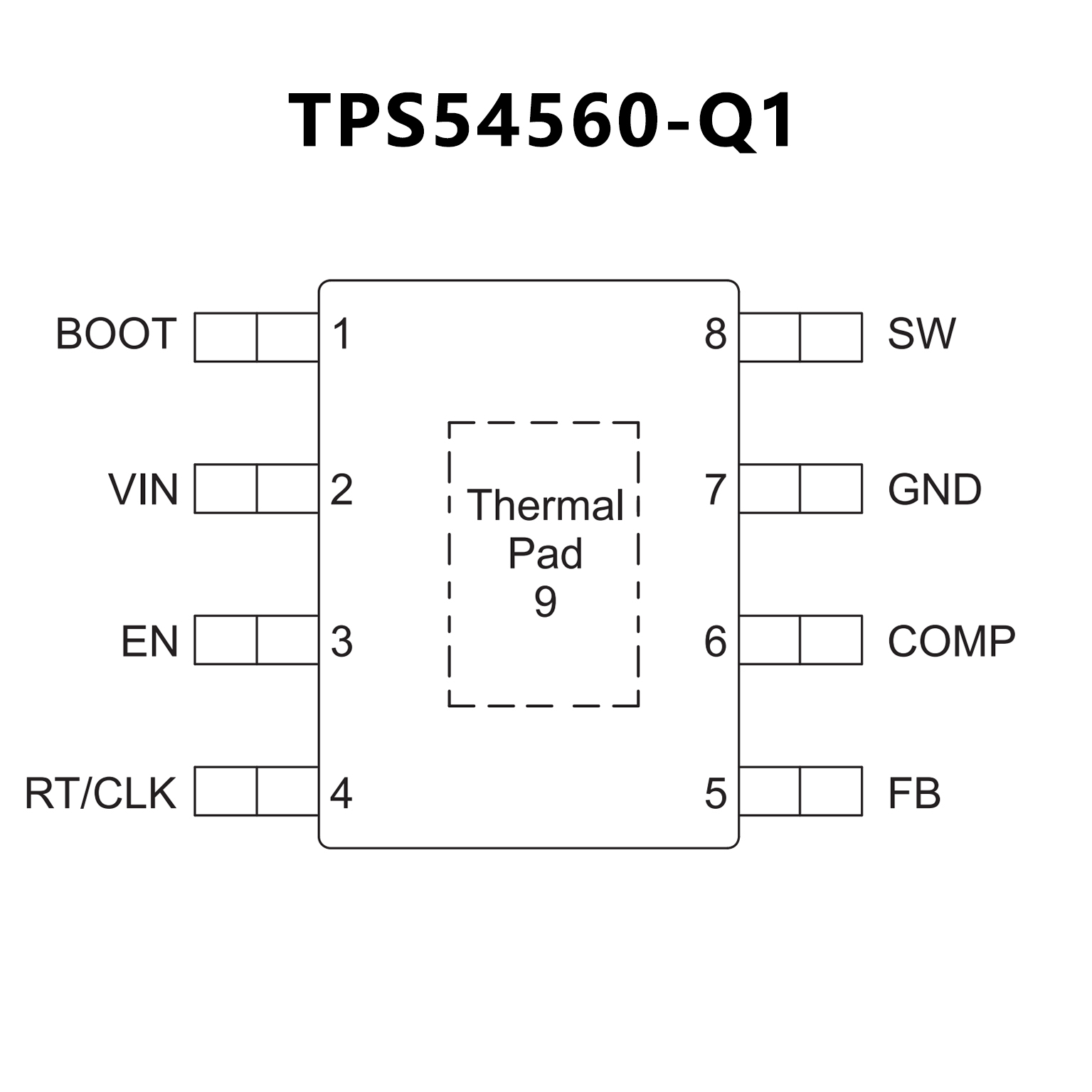

PIN CONFIGUTION
