100V 0.6A 輸出, 非步降壓DCDC轉換器, SCT2A01 Replace LM74700.
SCT2A01.pdf優勢替代
FEATURES
? AEC-Q100 qualified with the following results
– Device temperature grade 1:
–40°C to +125°C ambient operating
temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
? Functional Safety-Capable
– Documentation available to aid functional safety
system design
? 3.2-V to 65-V input range (3.9-V start up)
? –65-V reverse voltage rating
? Charge pump for external N-Channel MOSFET
? 20-mV ANODE to CATHODE forward voltage drop
regulation
? Enable pin feature
? 1-μA shutdown current (EN=Low)
? 80-μA operating quiescent current (EN=High)
? 2.3-A peak gate turnoff current
? Fast response to reverse current blocking:
< 0.75 μs
? Meets automotive ISO7637 transient requirements
with a suitable TVS Diode
? Available in 6-pin and 8-pin SOT-23 Package 2.90
mm × 1.60 mm

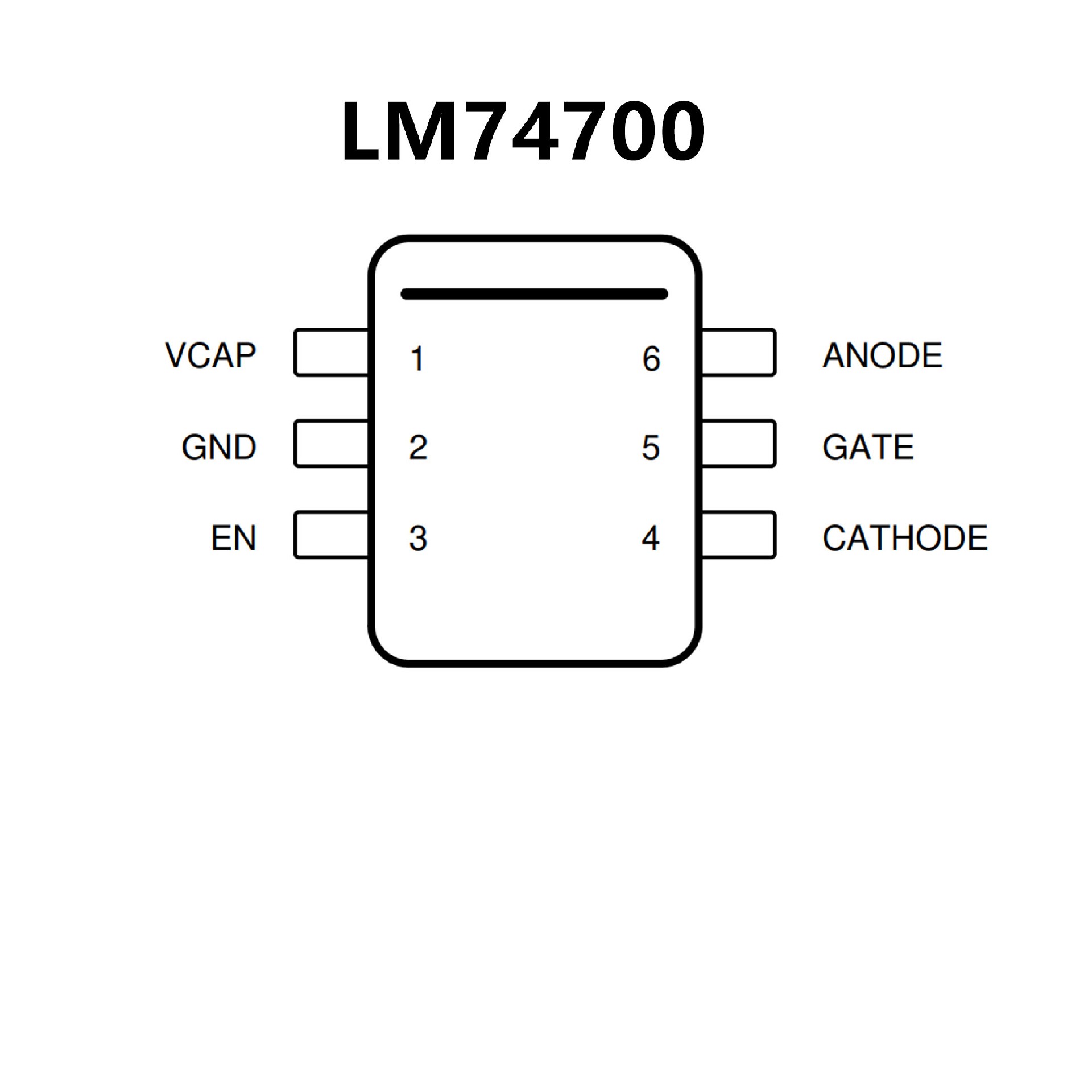

PIN CONFIGUTION
