SCT2A10.pdf? Wide Input Range: 4.5V-100V
? 0.6A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 770m? High-Side and 460mΩ LowSide Power MOSFETs
? Pulse Frequency Modulation (PFM) with 100uA
Quiescent Current in Sleep Mode
? 4ms Internal Soft-start Time
? Adjustable Frequency 300KHz to 800KHz
? Precision Enable Threshold for Programmable
; Input Voltage Under-voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Cycle-by-Cycle Current Limiting
? Over-Voltage Protection
? Over-Temperature Protection

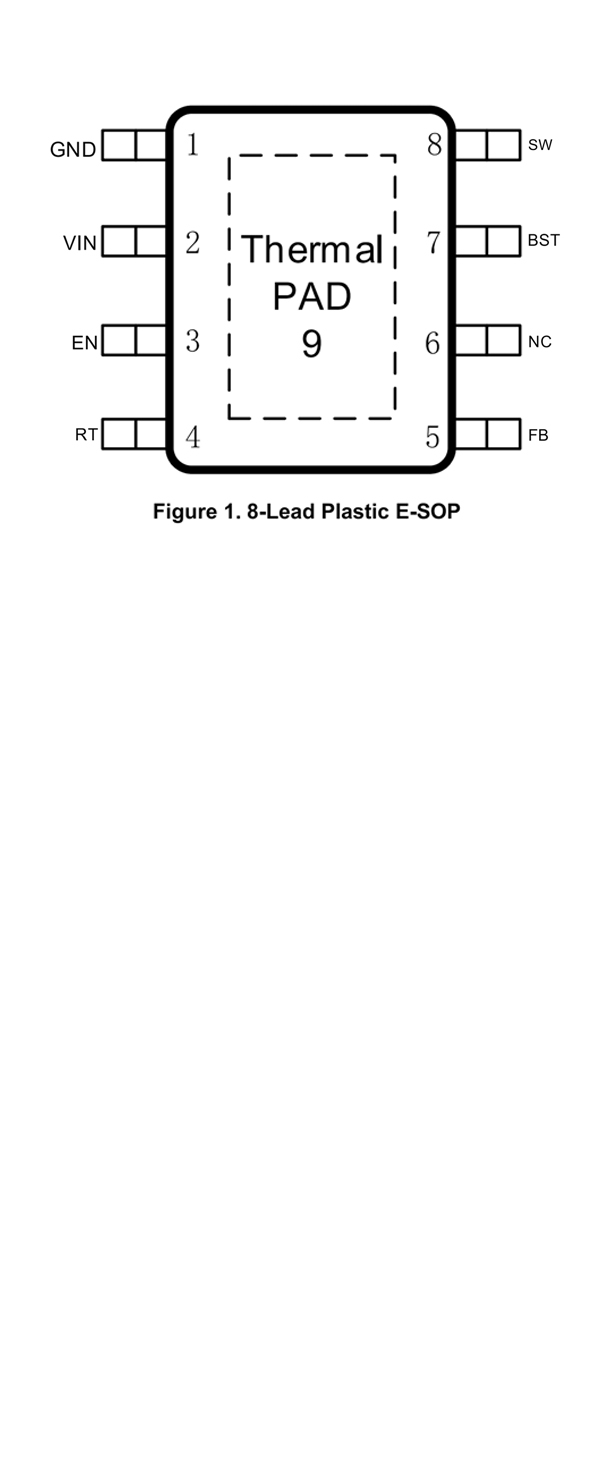

? Available in an ESOP-8 Package
? Wide 9V to 100V Input Range
? Integrated 100V, High and Low Side Switches
? No Schottky Required
? Constant On-time Control
? No Loop Compensation Required
? Ultra-Fast Transient Response
? Nearly Constant Operating Frequency
? Intelligent Peak Current Limit
? Adjustable Output Voltage from 1.225V
? Precision 2% Feedback Reference
? Frequency Adjustable to 1MHz
? Adjustable Undervoltage Lockout (UVLO)
? Remote Shutdown
? Thermal Shutdown
