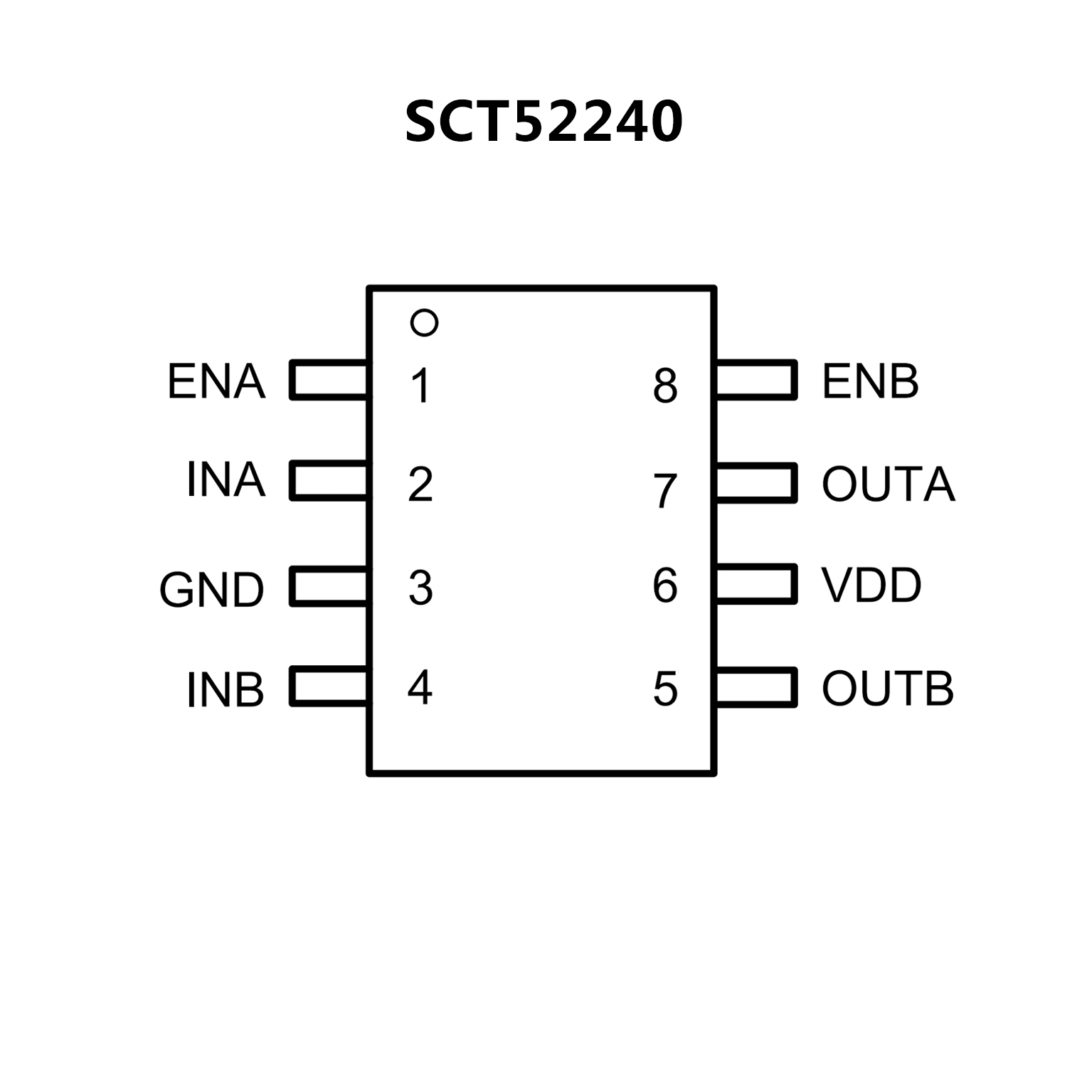

SCT52240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 and eMSOP-8 Package

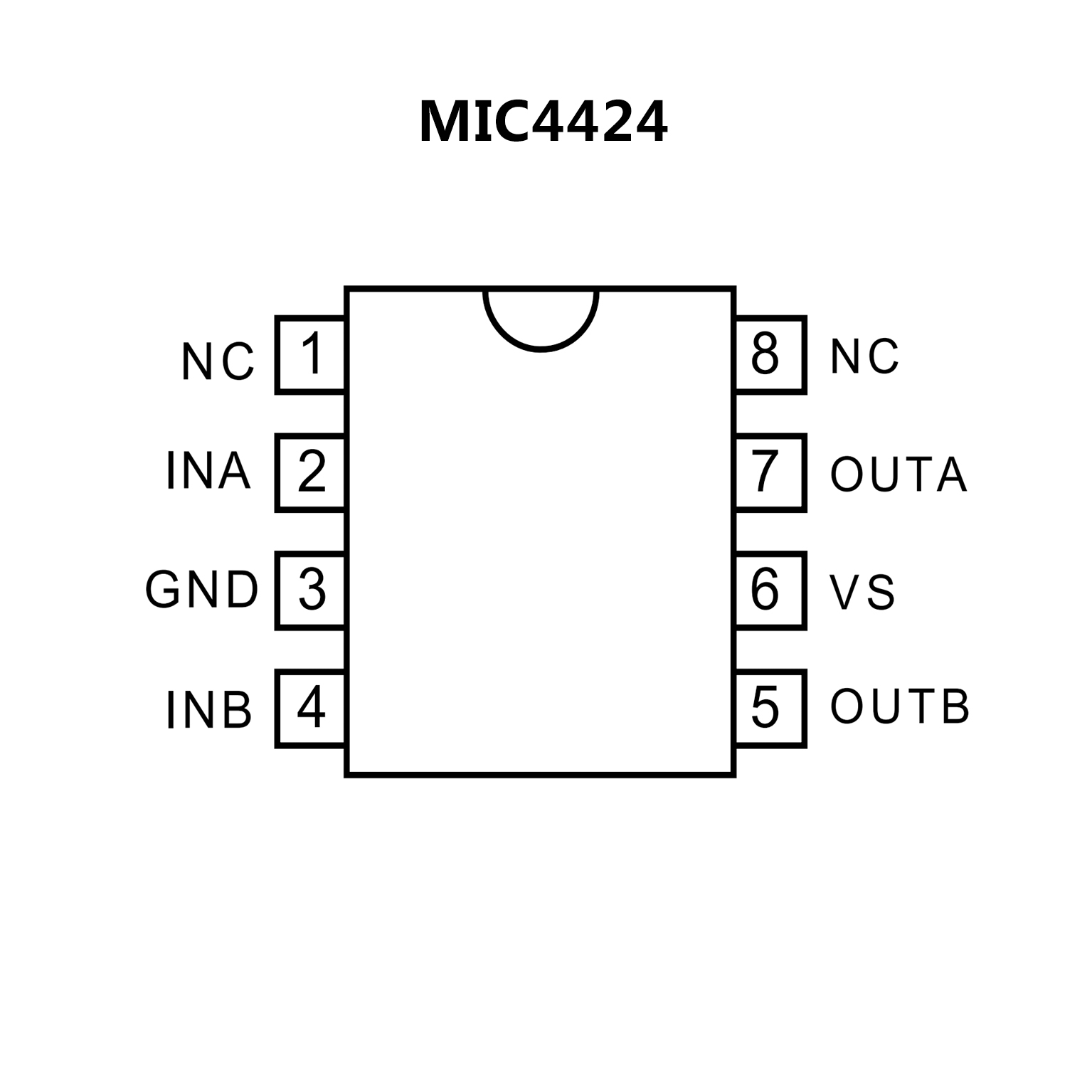

? Reliable, low-power bipolar/CMOS/DMOS construction
? Latch-up protected to >500mA reverse current
? Logic input withstands swing to –5V
? High 3A-peak output current
? Wide 4.5V to 18V operating range
? Drives 1800pF capacitance in 25ns
? Short <40ns typical delay time
? Delay times consistent with in supply voltage change
? Matched rise and fall times
? TTL logic input independent of supply voltage
? Low equivalent 6pF input capacitance
? Low supply current
3.5mA with logic-1 input
350μA with logic-0 input
? Low 3.5Ω typical output impedance
? Output voltage swings within 25mV of ground or VS.
? ‘426/7/8-, ‘1426/7/8-, ‘4426/7/8-compatible pinout
? Inverting, noninverting, and differential configurations
