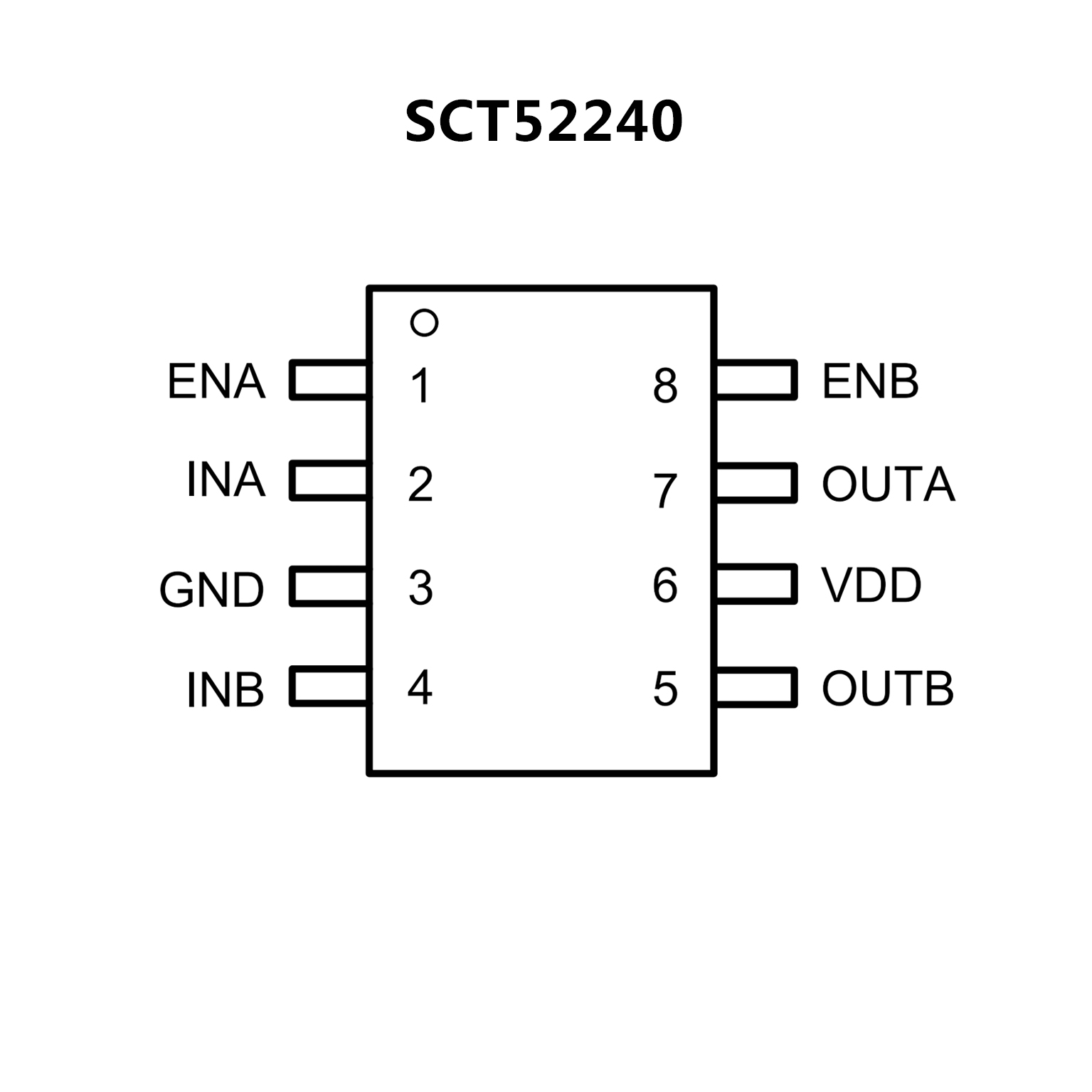

SCT52240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 and eMSOP-8 Package

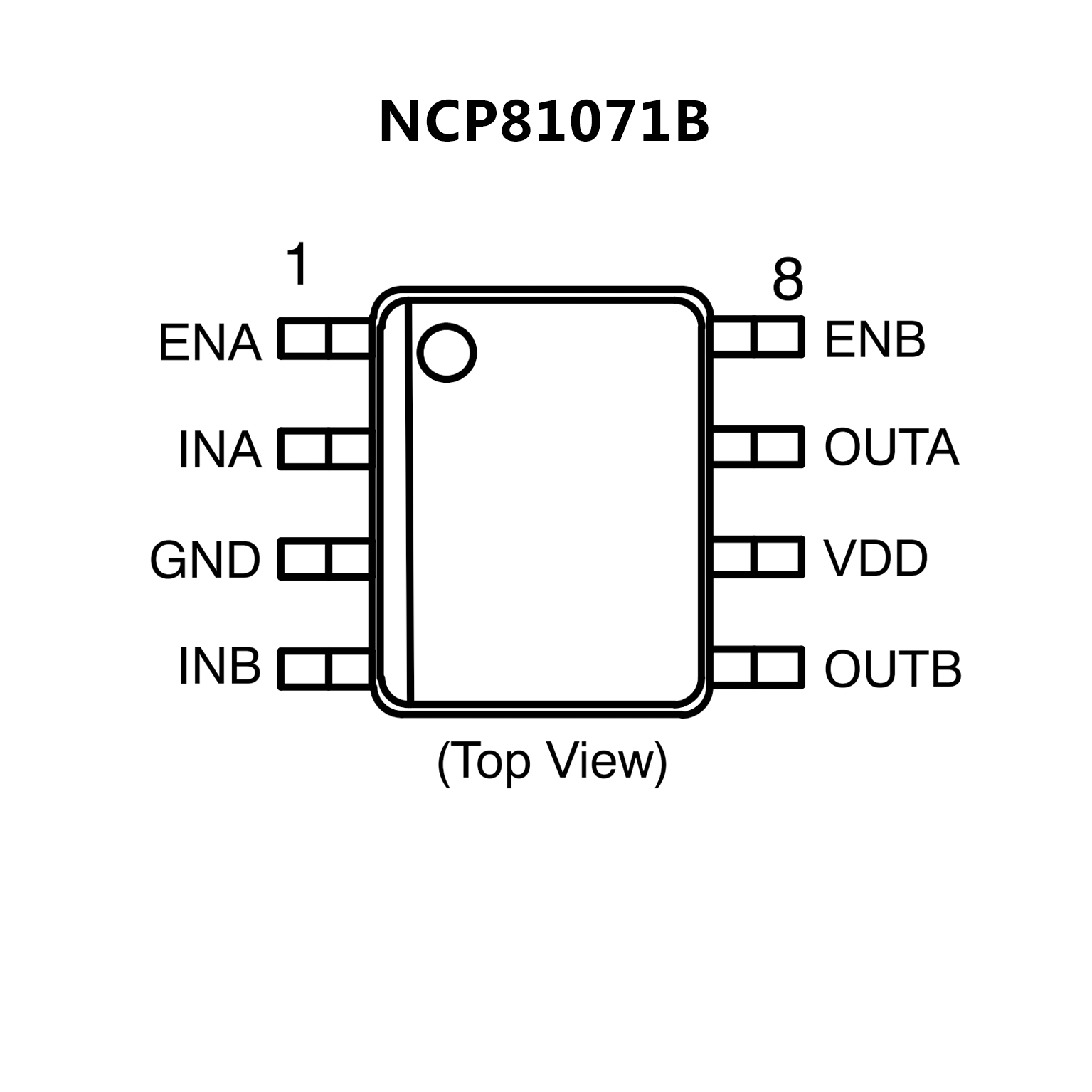

? High Current Drive Capability ±5 A
? TTL/CMOS Compatible Inputs Independent of
Supply Voltage
? Industry Standard Pin?out
? High Reverse Current Capability (6 A) Peak
? Enable Functions for Each Driver
? 8 ns Typical Rise and 8 ns Typical Fall Times with
1.8 nF Load
? Typical Propagation Delay Times of 20 ns with
Input Falling and 20ns with Input Rising
? Input Voltage from 4.5 V to 20 V
? Dual Outputs can be Paralleled for Higher Drive
Current
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant
