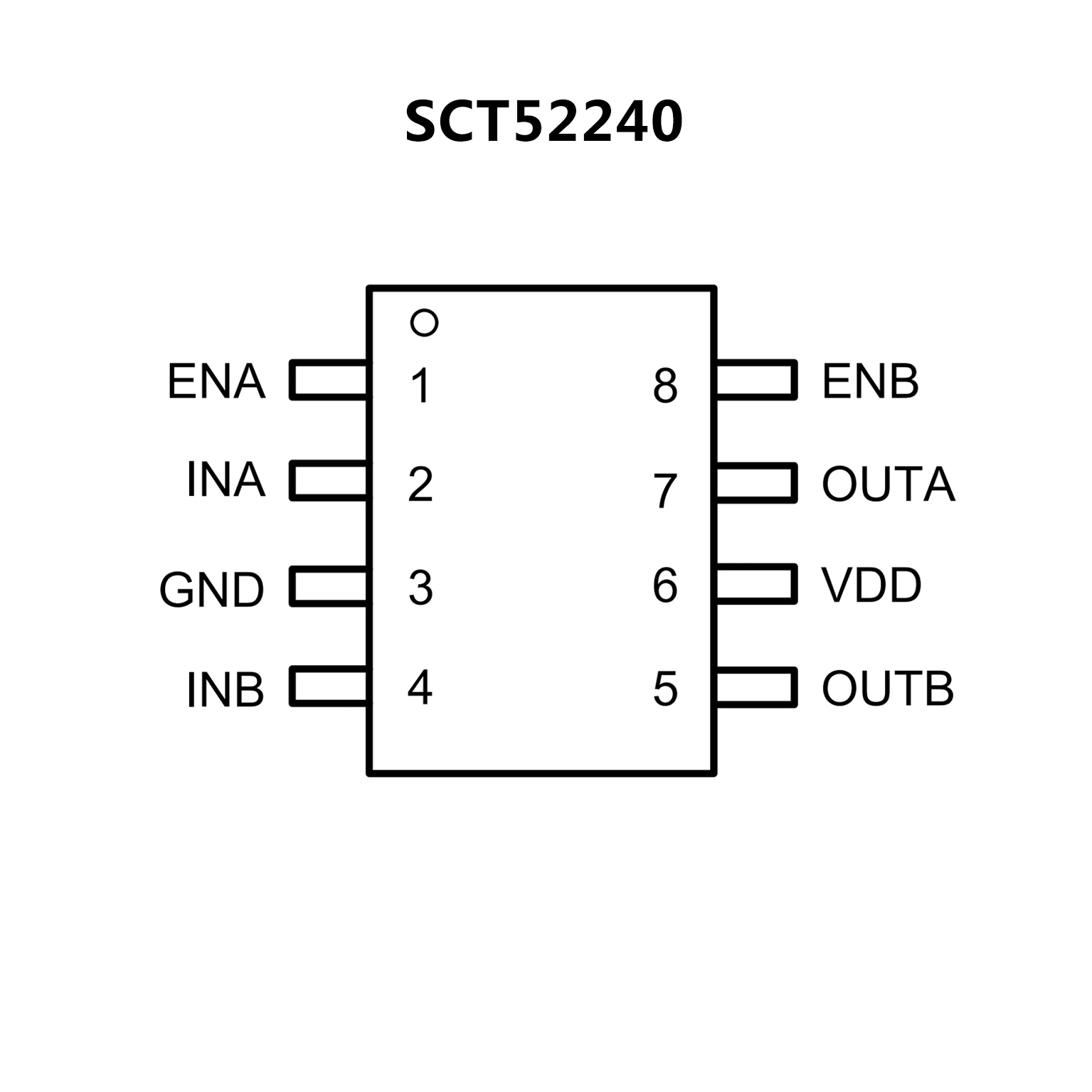

SCT52240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 and eMSOP-8 Package
? Industry-Standard Pin-Out

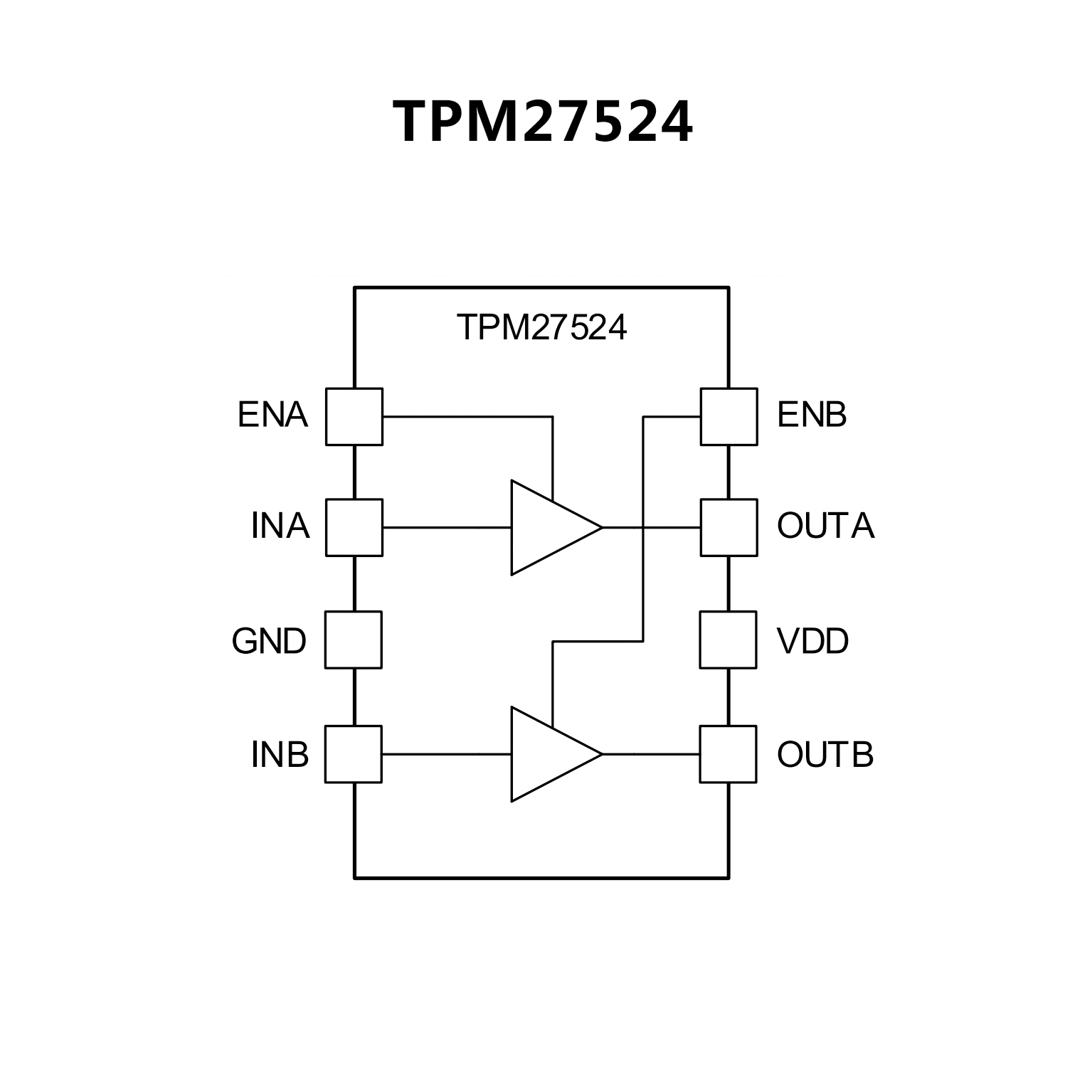

? 4.5-V to 23-V Single-Supply Range
? Dual Independent Channels
? 5-A Peak Source and Sink-Drive Current
? Independent-Enable Function for Each Output
? TTL and CMOS Compatible Threshold
? Outputs Held Low During VDD-UVLO or Input Floating
? Low Propagation Delay (13-ns Typical)
? Fast Rise and Fall Times (7-ns and 6-ns Typical)
? <1-ns Typical Delay Matching Between Two Channels
? Two Outputs can be used in Parallel for Higher Drive
Current
? ESD Protection Exceeds JESD 22 – 6-kV HBM, 1.5-kV
CDM
? Available in SOP-8, EMSOP-8 and DFN3X3-8, DFN2X2-8
Packages
