Up to 24V Supply, 4A Dual Channel High Speed Low Side Driver, SCT52240Q Replace FAN3223C.
FEATURES

? Qualified for Automotive Applications

? AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
    Ambient Operating Temperature Range
  - Device HBM ESD Classification Level H2
  - Device CDM ESD Classification Level C3B
? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
  Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C

? Available in SOP-8 Package

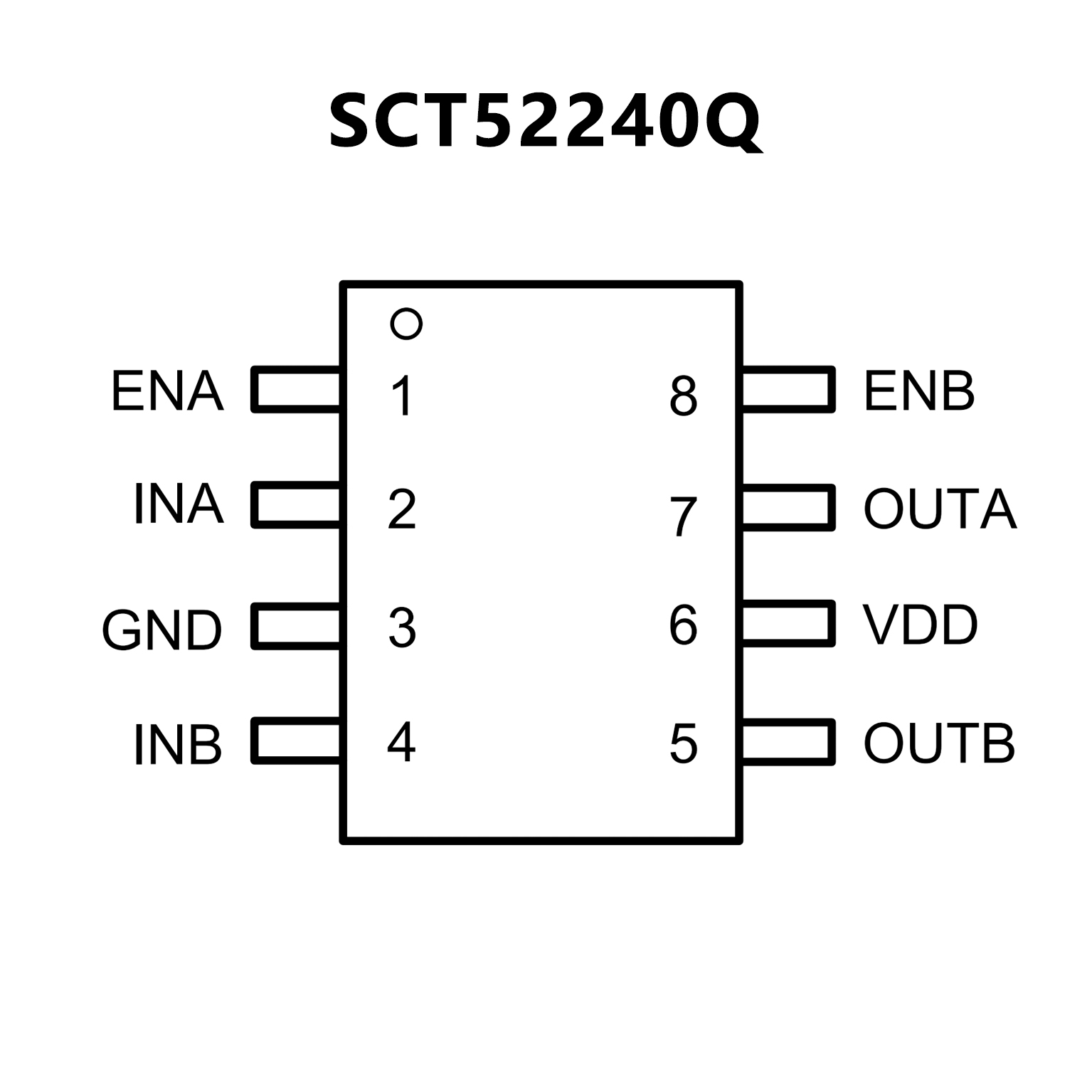

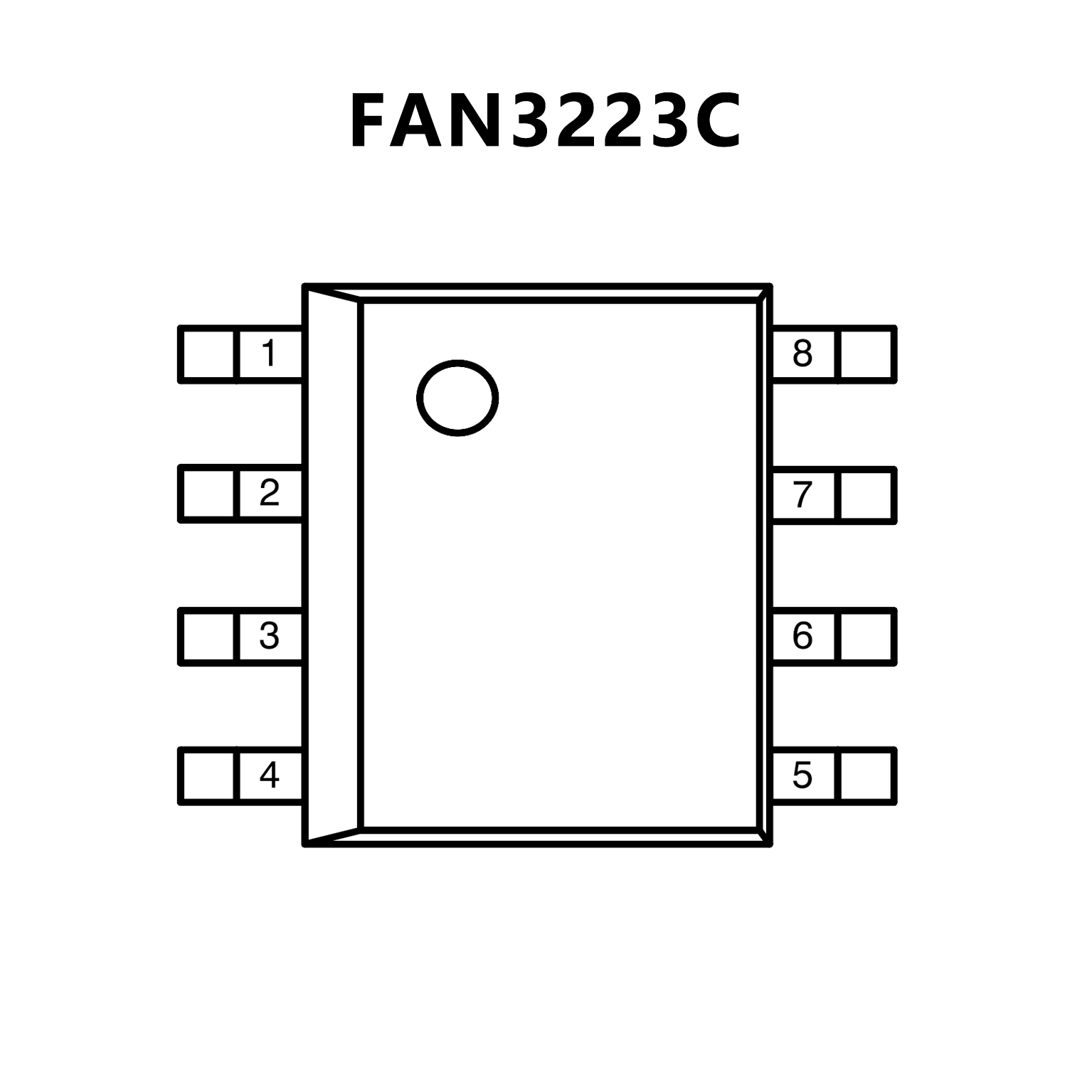

PIN CONFIGUTION
優勢替代
FAN3223C FAN3223C.pdf

No.14424

FEATURES

? Industry?Standard Pinouts

? 4.5 V to 18 V Operating Range

? 5 A Peak Sink/Source at VDD = 12 V

? 4.3 A Sink / 2.8 A Source at VOUT = 6 V

? Choice of TTL or CMOS Input Thresholds

? Three Versions of Dual Independent Drivers:

   Dual Inverting + Enable (FAN3223)

   Dual Non?Inverting + Enable (FAN3224)

   Dual?Inputs (FAN3225)

? Internal Resistors Turn Driver Off If No Inputs

? MillerDrive Technology

? 12 ns / 9 ns Typical Rise/Fall Times (2.2 nF Load)

? Under 20 ns Typical Propagation Delay Matched

  within 1 ns to the Other Channel

? Double Current Capability by Paralleling Channels

? 8?Lead SOIC and 8?Lead SOIC Exposed Pad Package

? Rated from –40°C to +125°C Ambient

? Automotive Qualified to AEC-Q100

? These are Pb?Free Devices


PIN CONFIGUTION
