Up to 24V Supply, 4A Dual Channel High Speed Low Side Driver, SCT52240Q Replace NSD1025-Q1.
SCT52240Q
SCT52240Q.pdf
FEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

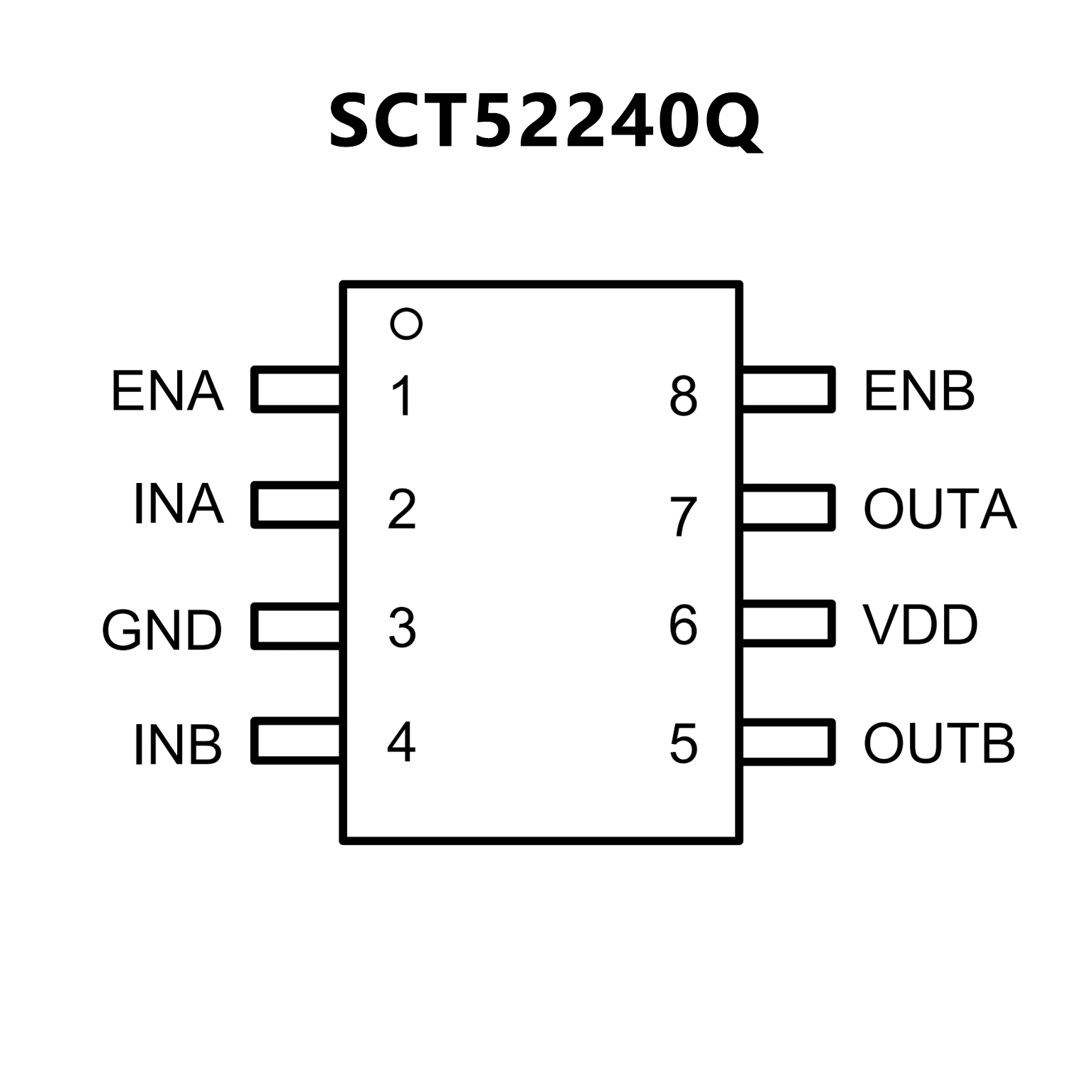

PIN CONFIGUTION

優勢替代
FEATURES
? Wide supply voltage range: 4.5 to 24V
? Source/Sink drive current: ±5A (Peak)
? Two independent enable pins to control channel output
? Industry-standard Pin out
? Ability to handle negative swing of (-10V) at each input pin
? Offer High drive current by parallel connection of outputs
? CMOS/TTL compatible logic inputs
? 5A reverse current feature eliminates the need of output
protection circuitry
? Operating temperature range: -40°C to 125°C
? Low supply current
? Short propagation delays: 21ns(typical)
? Automotive qualified to AEC-Q100 Class 1

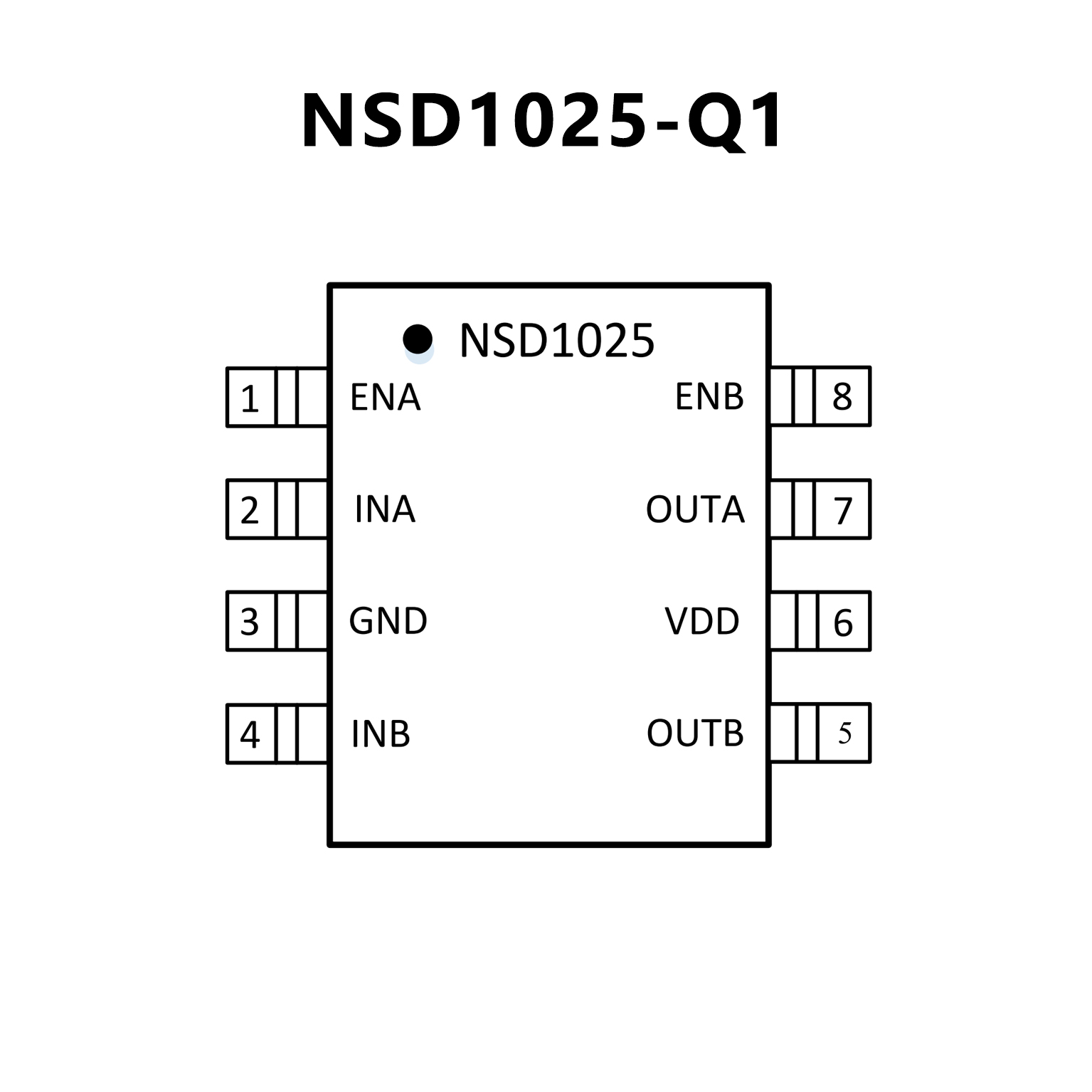

PIN CONFIGUTION
