Up to 24V Supply, 4A Dual Channel High Speed Low Side Driver, SCT52240Q Replace UCC27524A-Q1.
SCT52240Q
SCT52240Q.pdf
SCT52240Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

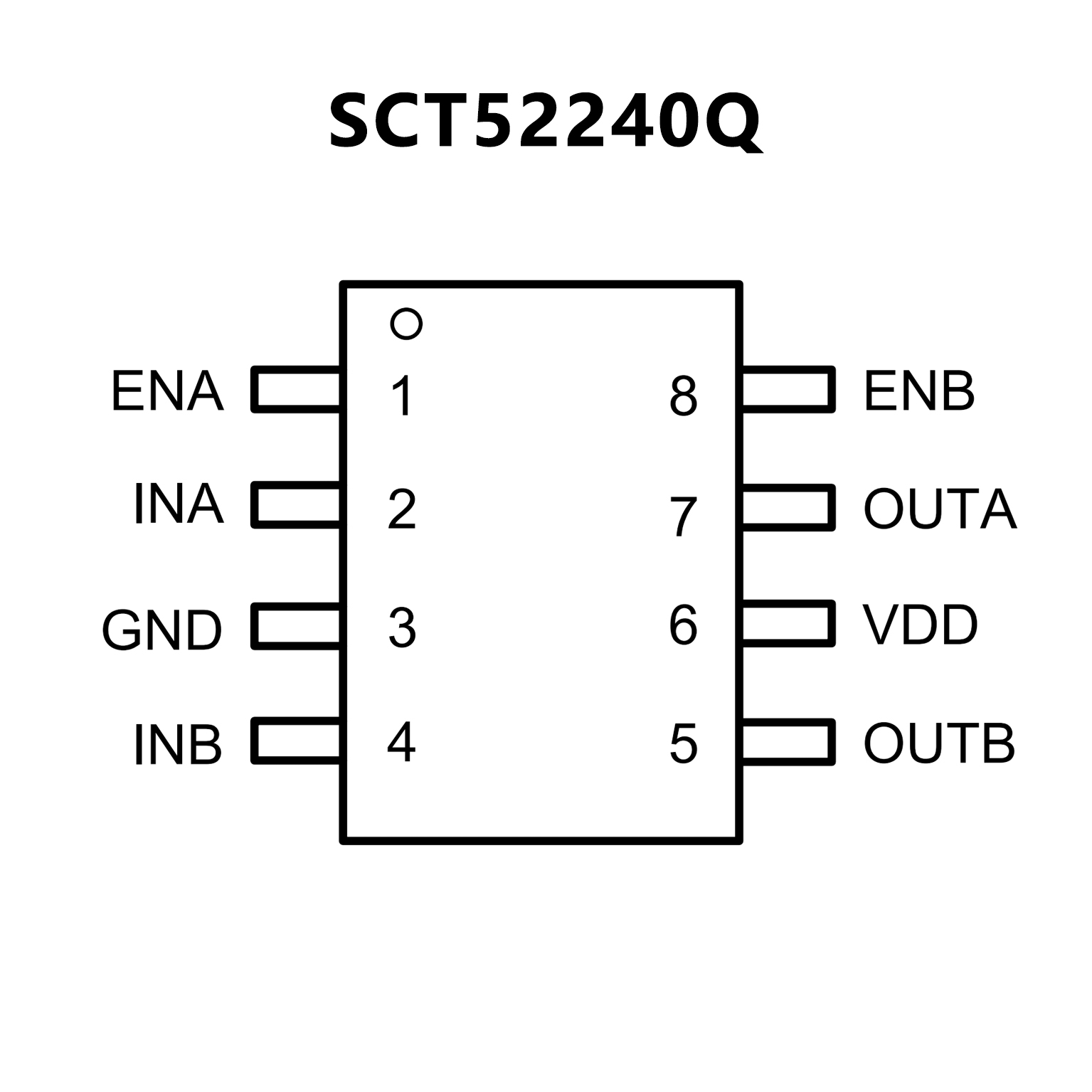

PIN CONFIGUTION
優勢替代
FEATURES
? Qualified for automotive applications
? AEC-Q100 qualified with the following results
– Device temperature grade 1
? Industry-standard pin out
? Two independent gate-drive channels
? 5A peak source and sink-drive current
? Independent enable function for each output
? TTL and CMOS-compatible logic threshold
independent of supply voltage
? Hysteretic-logic thresholds for high-noise immunity
? Ability to handle negative voltages (–5V) at inputs
? Inputs and enable pin-voltage levels not restricted
by VDD pin bias supply voltage
? 4.5V to 18V single-supply range
? Outputs held low during VDD-UVLO, (ensures
glitch-free operation at power-up and power-down)
? Fast propagation delays (17ns typical)
? Fast rise and fall times (6ns and 10ns typical)
? 1ns typical delay matching between 2-channels
? Ability to parallel two outputs for high-drive current
? Outputs held in low when inputs are floating
? SOIC-8 and VSSOP-8 PowerPad? package options
? Operating temperature range of –40°C to 150°C

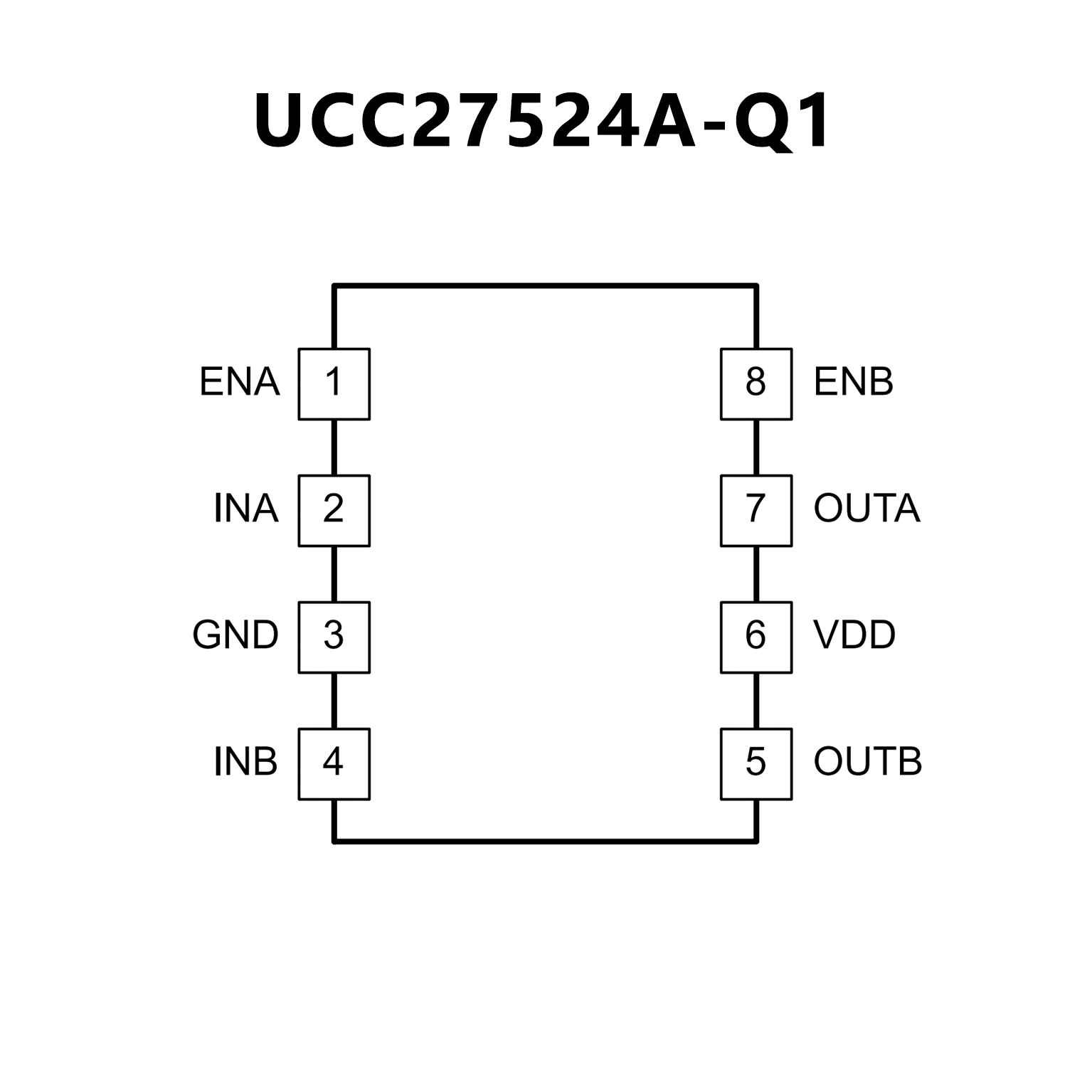

PIN CONFIGUTION
